- The guide element (13) is fixed by the rubber piece (14) to the appropriate holder for the
guide element.
- The rubber piece (14) on the guide holder (1) is compressed when the hexagon head bolt (15)
is turned.
- The lower rubber piece (14a) fixes the lower guide element (13a) in place on the pipe exten-
sion (10). This is compressed by the hexagon nut (16).
- The top guide element (13b) is fixed in position by the top rubber piece (14b). After the lower
guide element (13a) has been secured, the top rubber piece (14b) is placed on and com-
pressed with the washer (17). Compress the top rubber piece (14b) until the top guide ele-
ment (13b) can be plugged firmly in the holder.
Hexagonal bolt (15)
Rubber
piece (14)
Guide element (13)

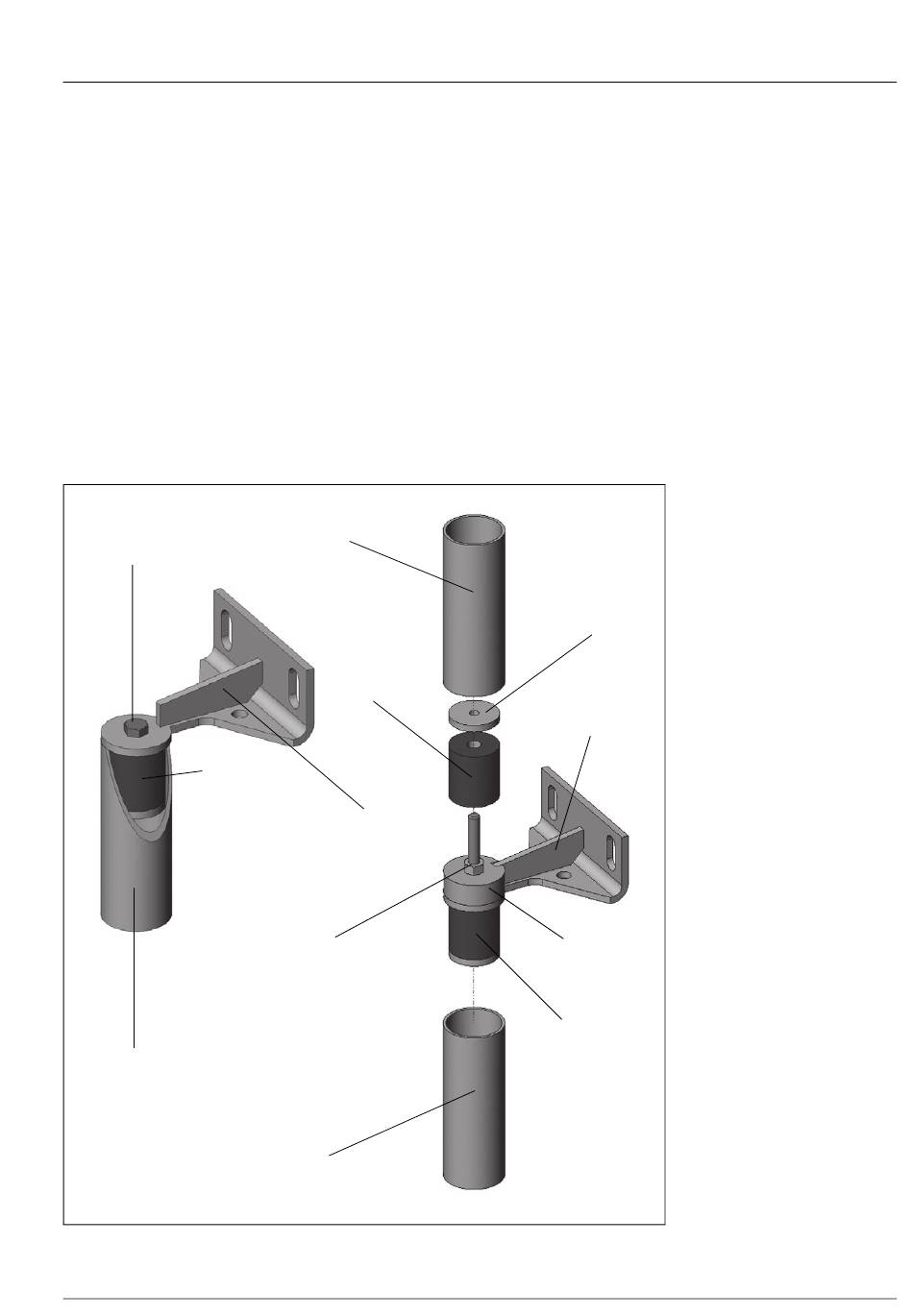

Fig. E-4: Fixing the guide elements
E:\shares\Baprod\BA\subtec_m\appendix\us\sewage\suspension_unit.fm
Guide element (13b)
Rubber
piece (14b)
Guide holder (1)
Hexagon nut (16)
Guide element (13a)
Assembling the suspension unit
Fixing the guide elements
Washer (17)
Pipe extension (10)
Spacer ring (19)
Rubber piece (14a)
E-5
