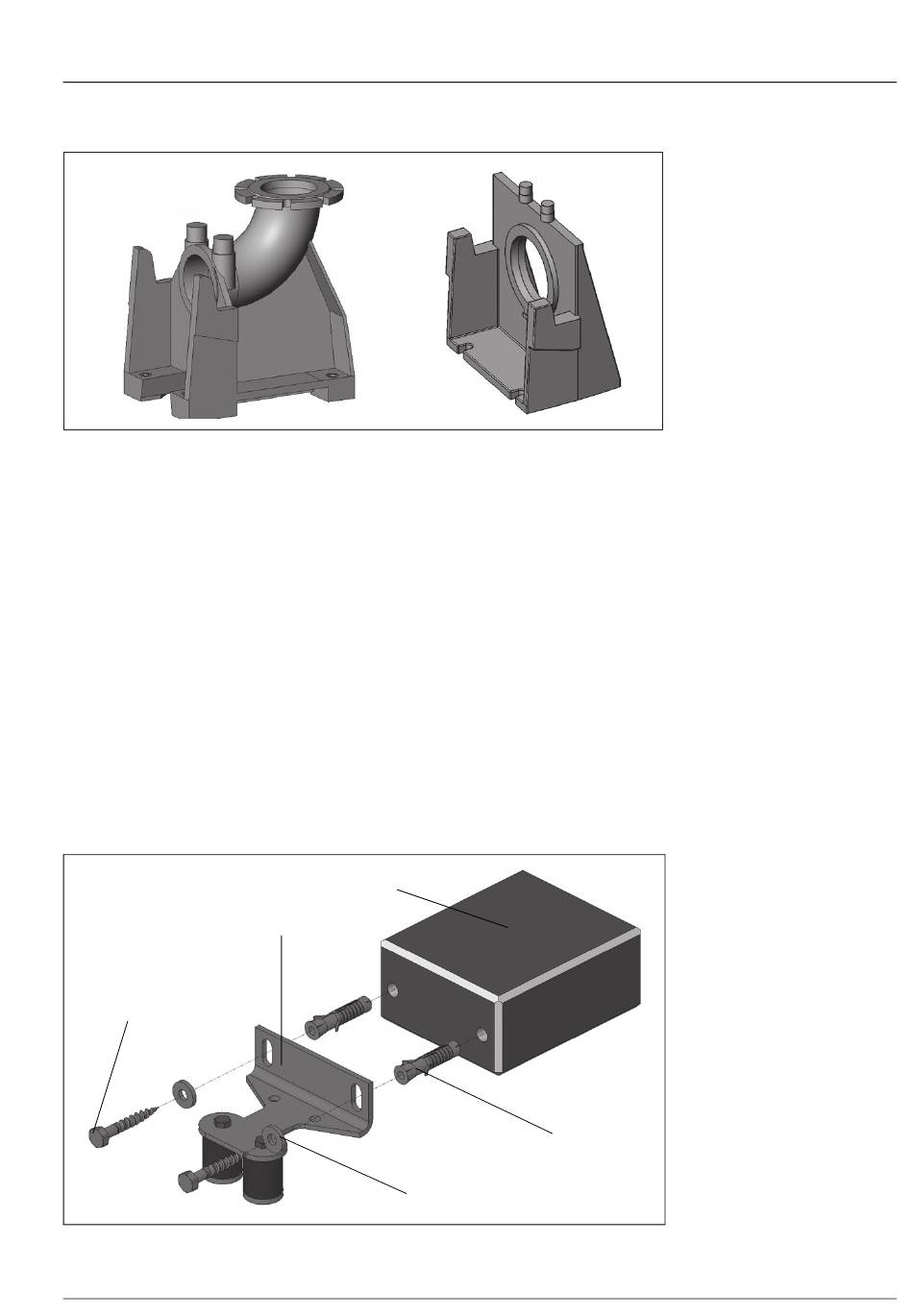

Fig. E-1: Model "with elbow" and "without elbow"
Completely trouble-free operation can only be guaranteed if the unit is precisely installed.
When installing the suspension units, remember that the guide elements
must be entirely perpendicular and may not be twisted. If the guide ele-
ments do not run completely straight, please contact the manufacturer.
- Place the top guide holder (1) in the position intended and mark the holes
- Remove the guide holder (1), drill the holes and insert wall plugs (2)
- Place the guide holder (1) in position and secure it loosely with the wood screws (3) and
washers (4) supplied.
Wood screws (3)
Fig. E-2: Installation of the guide holder for shaft mounting
E:\shares\Baprod\BA\subtec_m\appendix\us\sewage\suspension_unit.fm
Pit
Guide holder (1)
Washer (4)
Assembling the suspension unit
Assembling the various
suspension units
R2 and DN36... to
DN250... suspension unit
installation
Installation of the guide hold-
er for shaft mounting
Wall plug (2)
E-3
