Summary of Contents for Extech Instruments EA30

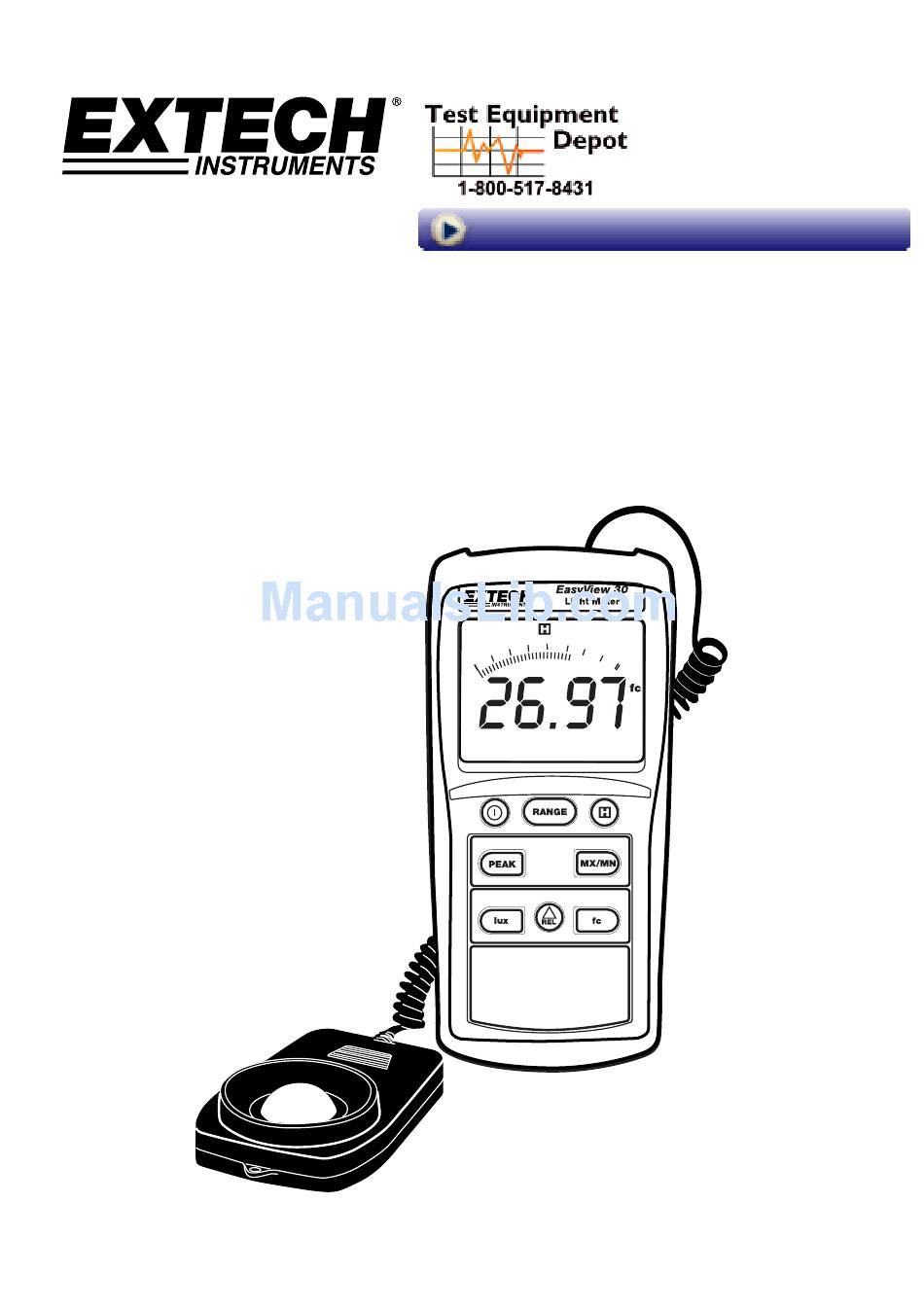

- Page 1 User Guide 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com EasyView Digital Light Meter Model EA30...
-
Page 2: Meter Description
Photo sensor (lens cover not shown) Sensor input to top of meter Data HOLD button MAX/MIN button 10. fc foot candle select button 11. RELATIVE function button Note: Battery compartment is located on the rear of the instrument EA30-EU-EN v3.3 08/13... -
Page 3: Operation
REL button again so that the triangle icon begins to flash. The displayed value will be the reference value. To exit the Relative mode, press and hold the REL button until the triangle icon disappears. EA30-EU-EN v3.3 08/13... -
Page 4: Maintenance
F); Humidity: < 80% RH Dimensions 150 x 72 x 33mm (5.91 x 2.8 x 1.4") Weight Approx. 320g (11.3 oz.) with battery Low battery indication “BT” appears on the LCD Power supply 6 ‘AAA’ cells; Battery life approx 400 hours EA30-EU-EN v3.3 08/13... - Page 5 Sick Room, Warehouse 300-500 30-50 Display Stand 150-200 15-20 Waiting Room 500-750 50-75 Elevator 200-750 20-75 Medical Exam Room 750-1,500 75-150 Show Window, 750-1,500 75-150 Operating Room Packing Table 1,500-3,000 150-300 Storefront, Show Window 5,000-10,000 500-1000 Eye Inspection EA30-EU-EN v3.3 08/13...
- Page 6 Spectral Sensitivity Wavelength (nm) _____ - - - - - Light Meter Response CIE Response EA30-EU-EN v3.3 08/13...
