Eaglemaster AS-232T Instruction Manual

Automotive security system for automobiles, trucks, vans&suv's
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
FOR AUTOMOBILES, TRUCKS, VANS&SUV'S.
Instruction Manual
SYSTEM FEATURES:

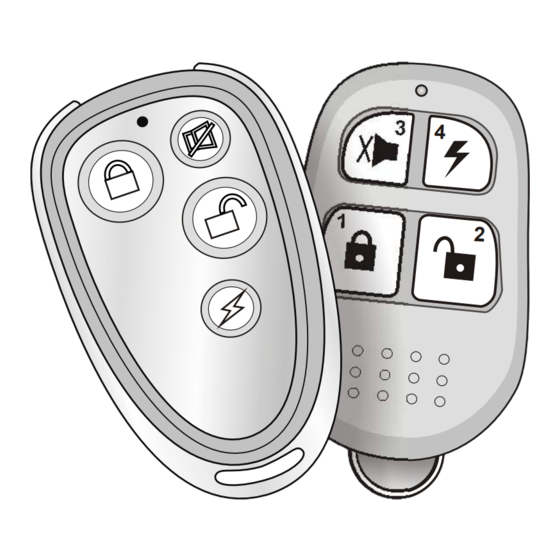

1. Two 4-button transmitters
2. Arm/Disarm the system
3. Silent Arm/Disarm
4. Arm connection memory
5. Starter (engine) disable
6. Panic mode
7. Auto-rearming
8. Ignition on safety door lock
9. Plug-in function LED
10. Passive or Active Arm
11. 1 or 2 pulse unlock
12. Passive arming
Please read the entire manual for complete details on the features, accessories and
This Security system must be installed by a qualified technician to ensure proper
operation. Do not attempt to install or modify this system yourself as
SAVE THIS MANUAL FOR FUTURE REFERENCE
Automotive Security System
IMPORTANT:
operation before attempting to use your security system.
this way void your warranty.
MODEL:
AS-232T
13. Passive immobilizer
14. Defective zone alert/bypass
15. Trunk release output
16. 2-stage shock sensor
17. Remote sensor bypass
18. User programme mode
19. Parking light flasher
20. Doors lock/unlock relays
21. Code hopping system
22. PIN code protection
23. Alarm triggering counter
24. Valet mode

Advertisement

loading

Related Manuals for Eaglemaster AS-232T

Summary of Contents for Eaglemaster AS-232T

  • Page 1 Automotive Security System FOR AUTOMOBILES, TRUCKS, VANS&SUV'S. MODEL: Instruction Manual AS-232T SYSTEM FEATURES: 1. Two 4-button transmitters 13. Passive immobilizer 2. Arm/Disarm the system 14. Defective zone alert/bypass 3. Silent Arm/Disarm 15. Trunk release output 4. Arm connection memory 16. 2-stage shock sensor 5.
  • Page 2 REMOTE FUNCTION OPERATE: Functions Step Condition Arm and door lock Press once Disarmed & ACC off Arm without siren chirp Press once then within 3sec. press once Disarmed & ACC off Disarm and door unlock Press once Armed Disarm without siren chirp Press once then within 3sec.

  • Page 3: Standard Features

    STANDARD FEATURES: -To ARM the system: To arm your system within proper operation range, simply press button once (while system in disarmed or Acc off position) . The system will respond one siren chirp, one lights flash, doors lock, disable engine starter, LED will begin flashing quickly until all sensor inputs are active - LED will start blinking slowly (flash once per second).
  • Page 4 -Remote sensor by pass : This system offer 2stage sensor optional. Within 8sec. after set arming, to press button once , the system will give 3 short chirps and 3 lights flash, thus the shock sensor has been turn off (disable). If press button once again within 8sec.
  • Page 5 -Valet mode: If you are going to have your vehicle serviced, parked by a valet or washed you will want to put your security system Into valet mode. To enter valet mode disarm the system and turn Ignition switch to ON position , then press button for over 5 seconds until siren give one chirp and LED light ON to confirm the system is in valet mode.
  • Page 6 Wiring diagram With jumper Without jumper Antenna Door lock / unlock Door lock / unlock jumper 4sec. for air 0.8sec. compressor car. for normal car. Door switch arming Door switch arming delay 30sec. for delay 0sec. for jumper Dome light delay normal car.

  • Page 7: Central Door Lock Wiring

    JUMPER SELECTION SETTING: This system provide 2jumpers and functions are show at right table, the location With jumper Without jumper of jumpers are on the side of the main control unit, please see under wiring. Note: Disconnect the power from the main Door lock / unlock Door lock / unlock control unit before setting the jumpers.
