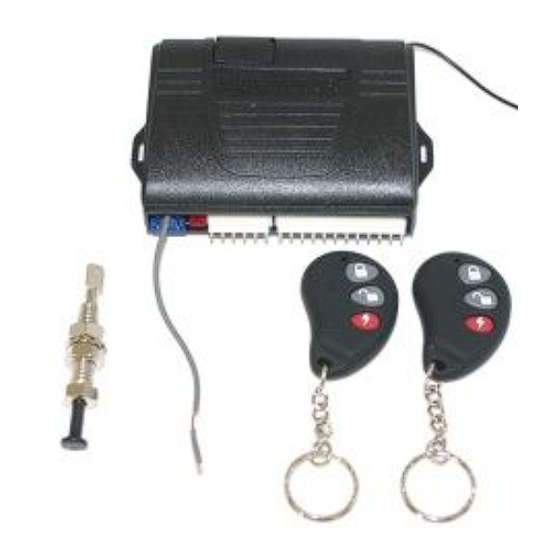

Eaglemaster LT-5200 Instruction Manual

Automotive security system, 2/3/4 button remote
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
FOR AUTOMOBILES, TRUCKS, VANS&SUV'S.
Instruction Manual
5200-A
MODEL:
SYSTEM FEATURES:
1. Two hopping code transmitters
2. Arm/Disarm the system
3. Silent Arm/Disarm
4. Arm connection memory
5. Starter (engine) disable
6. Panic mode
7. Auto-rearming
8. Ignition on safety door lock
9. Plug-in function LED
10. Passive or Active Arm
11. 1 or 2 pulse unlock
12. Passive arming
Please read the entire manual for complete details on the features, accessories and
operation before attempting to use your security system.
This Security system must be installed by a qualified technician to ensure proper
operation. Do not attempt to install or modify this system yourself as
SAVE THIS MANUAL FOR FUTURE REFERENCE
Automotive Security System
LT-5200
- 2/3 button remote
I M P O RTA N T:
this way void your warranty.
5200-B
- 4 button remote
13. Passive immobilizer
14. Defective zone alert/bypass
15. Trunk release output
16. 2-stage shock sensor
17. Remote sensor bypass
18. User programme mode
19. Parking light flasher
20. Doors lock/unlock relays
21. Code hopping system
22. Built-in shock sensor detect
23. Alarm triggering counter
24. Valet mode

Advertisement

loading
Need help?

Need help?

Do you have a question about the LT-5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaglemaster LT-5200

Summary of Contents for Eaglemaster LT-5200

  • Page 1 Automotive Security System FOR AUTOMOBILES, TRUCKS, VANS&SUV'S. Instruction Manual LT-5200 5200-B 5200-A MODEL: - 4 button remote - 2/3 button remote SYSTEM FEATURES: 1. Two hopping code transmitters 13. Passive immobilizer 2. Arm/Disarm the system 14. Defective zone alert/bypass 3. Silent Arm/Disarm 15.

  • Page 2: Remote Features

    R E M OT E F E AT U R E S : 2-Button Remote Function Table: Functions Step Condition Arm / door lock Press once Disarmed & ACC off Arm without siren chirp Press for over 2sec. Disarmed & ACC off Disarm / door unlock Press once...
  • Page 3 PROGRAMMABLE FEATURE Some of the operating settings of this unit are programmable. The programmable mode setting dictates how the unit operates. It is possible to access and change any of the feature settings using the Valet switch. To enter the system programmable mode setting: 1.

  • Page 4: Standard Features

    STANDARD FEATURES : To Arm the system: To arm your system within proper operation range, simply press button once. The system will respond one siren chirp, one lights flash, doors lock, disable engine starter and controller to close all windows . LED fash once per second to show the system is in arming mode. SILENT ARM: To hold button for over 2 seconds (in disarmed), light flash one but no chirp sound ,other functions...

  • Page 5: Anti Car Jacking

    2 step disarm: This system offers 2 step disarm. It's a feature that make it possible to silence and reset the system while it is triggering, without disarming the system. If the system is triggered and the siren has been sounding, pressing any button once on the remote transmitter will stop the trigger and return the unit to the armed state.
  • Page 6 B-pulse: Hazard switch), if programmed with B-pulse output, the parking lights output (any white wire) is connected to the car's hazard switch. White/red wire connect to the (+12V or - Ground) , for the signal power source of hazard switch. The pressing of hazard switch creates stable electrical signal, when the signal is present, the parking lights are flashing.
  • Page 7 Changing of the PIN code to turn off the system This system provide 2 digit PIN code, each digit code can be programme from 1 to 9 , and manufacturer code is ( 1.2). To program your new PIN code as follows: 1.

  • Page 8: Central Door Lock Wiring

    HOW TO USE CODE LEARNING : This system can expand 4 different transmitters, and comes from factory with two transmitters already programmed into the system memory. Whenever you want to add or delete transmitter code of the system, the procedures are as following : 1.

  • Page 9: System Wiring Diagram

    System wiring diagram Right parking light Central door of direction indicator lock wiring Connect to (+) 12Volts Battery Lights(+)or (-) Sources input ,for the parking lights power sources Left parking light of direction indicator + 12V DC White Do not coil or around White/Red the thin black Antenna White...
