IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed including the following
Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against electrical hazards, do not immerse cord, plugs, or the
appliance in water or other liquid.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
Close supervision is necessary when any appliance is used by or near children.
Children should be supervised to ensure that they do not play with the
appliance.
Unplug from outlet when not in use and before cleaning or servicing.
Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or is dropped or damaged in any manner. Return appliance to the
manufacturer for examination, repair or electrical or mechanical adjustment. All
servicing should be performed by an authorized service representative.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces. Do not
let the power cord cross over carpeting or other heat insulators. Do not cover the
cord.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Always attach plug to appliance first, then plug cord into the wall outlet. To
disconnect, turn any control to 'OFF', then remove plug from wall outlet.
Do not use appliance for other than intended use.
Do not leave unit unattended while in use.
Plug the Ice Maker into an exclusive grounded 3-prong outlet. No other
appliance should be plugged into the same outlet. Be sure that the plug is fully
inserted into the receptacle.
If the Ice Maker is brought in from outside in wintertime, do not use for a few
hours, allowing the unit to warm up to the room temperature before operating.
Do not clean your Ice Maker with any flammable fluids. The fumes may create a
fire hazard or explosion.
WARNING: Do not touch the Evaporator when the Ice Maker is making ice,
it may burn your skin.
DANGER – Risk of fire or explosion. Flammable refrigerant used. Do not use
mechanical devices to defrost ice maker. Do not puncture refrigerant tubing.
DANGER – Risk of fire or explosion. Flammable refrigerant used. To be repaired
only by trained service personnel. Do not puncture refrigerant tubing.
CAUTION – Risk of fire or explosion. Flammable refrigerant used. Consult repair
manual/owner's guide before attempting to install or service this product. All
safety precautions must be followed.
1
Hide quick links:
Advertisement
Chapters
Table of Contents
Need help?
Do you have a question about the EFIC117-SS and is the answer not in the manual?
Questions and answers
My Frigidaire countertop ice maker isn't making ice. I unplugged it overnight and cleaned with vinegar. It isn't making ice.
Your Frigidaire EFIC117-SS ice maker may not be making ice after cleaning due to several possible reasons:
1. Water Reservoir Issues – Ensure the water reservoir is filled up to the MAX water level mark. If it is empty or too low, the ice-making cycle will not start.
2. Power Reset Needed – After cleaning, wait at least 3 minutes before pressing the power button to restart the ice-making function.
3. Room Temperature Adjustment – The unit may need to warm up to room temperature before functioning properly.
4. Cleaning Residue – If vinegar or cleaning solution was used, ensure it has been completely rinsed out, as residue might interfere with ice formation.
5. Evaporator Fingers – The manual advises against cleaning the evaporator fingers. If they were touched or damaged, they may not freeze water properly.
6. Electrical Issues – Confirm that the unit is properly plugged in and the green LED light is on. If not, check the power source.
Try these steps, and if the issue persists, further troubleshooting may be needed.
This answer is automatically generated
My ice maker says water is low but it’s full. How do I correct it.
Turn off the ice maker, unplug it, and then plug it back in to reset the sensor. If needed, drain a small amount of water by removing the drain cap at the back and then replace it. Restart the unit and check if the indicator turns off.
This answer is automatically generated
I have a Frigidaire counter ice maker EFIC117-SSBlack. Why & where may it leak water? It appears to leak on the left side. The plug seems tight. It has never been dropped or abused.
Ice maker has “add water” indicator on, despite having enough water. I have tried resetting it, unplugging it, and emptying some water. How do I fix this?
Turn off the ice maker, unplug it, and check the water level. If the tank has enough water, there may be air in the lines or a blockage. Remove the drain cap at the back of the unit, drain a small amount of water, then replace the cap. Plug the unit back in and restart it. If the issue persists, inspect for any blockages or sensor malfunctions.
This answer is automatically generated
My icemaker says "ice full" when there is no ice in bucket. Will not fill the reservoir. Suggestions?
Your Frigidaire EFIC117-SS icemaker may display "Ice Full" when the bucket is empty because the sensor detecting the ice level could be blocked or malfunctioning. Additionally, the water reservoir may not be detecting the water level due to a blockage or an issue with the sensor. Try the following steps:
1. Check if any ice is blocking the sensor and remove it.
2. Ensure the water reservoir is properly filled and the water level sensor is not obstructed.
3. If the issue persists, unplug the machine, let any ice melt, and restart it.
If the problem continues, there may be an issue with the sensor or internal components requiring service.
This answer is automatically generated
My icemaker efic117 ss
My icemaker efic117 is will only freeze a correct ice cube when the room temperature is below 65 degrees
The Frigidaire EFIC117-SS icemaker may not freeze ice cubes correctly when the room temperature is above 65°F (approximately 18°C) because higher temperatures can affect the cooling efficiency of the refrigeration system. The manual states that the machine should operate at an ambient temperature below 32°C (about 90°F) and with cooler water in the reservoir. If the surrounding temperature is too high, the refrigeration system may struggle to maintain the necessary freezing conditions, leading to longer ice-making cycles or improper ice formation.
This answer is automatically generated
My "ice full" light never turns on, and my ice maker is making too much ice
The "Ice Full" light may not turn on if the ice sensor is blocked or malfunctioning. To fix the issue of the ice maker producing too much ice:
1. Check if ice is blocking the ice pusher. If so, turn off the unit, let the ice melt, and restart.
2. Ensure the ice basket is properly positioned.
3. Remove excess ice from the storage basket to allow the sensor to detect when it is full.
If the problem persists, inspect the sensor for any dirt or obstruction and clean it if necessary.
This answer is automatically generated
the add water light is on but i’ve tried adding water and it still won’t work, ince tried cleaning everything and it still won’t work
The "Add Water" light may still be on even after adding water and cleaning due to one of the following reasons:
1. Low Water Level or Lack of Water: Ensure that enough water is added so the sensor can detect it.
2. Air in the Lines or Blocked Lines: There may be air trapped in the water lines or a blockage preventing the system from detecting the water level. Try draining a small amount of water by removing the drain cap at the back and then restarting the unit.
3. Electrical Power Surge: A power surge may have affected the system. Turn off the ice maker, unplug it, wait a few minutes, and restart it.
4. Faulty Water Level Detection: If the water tank sensor cannot detect the water level correctly, the unit may not register the added water. Ensure the sensor is clean and functioning properly.
This answer is automatically generated

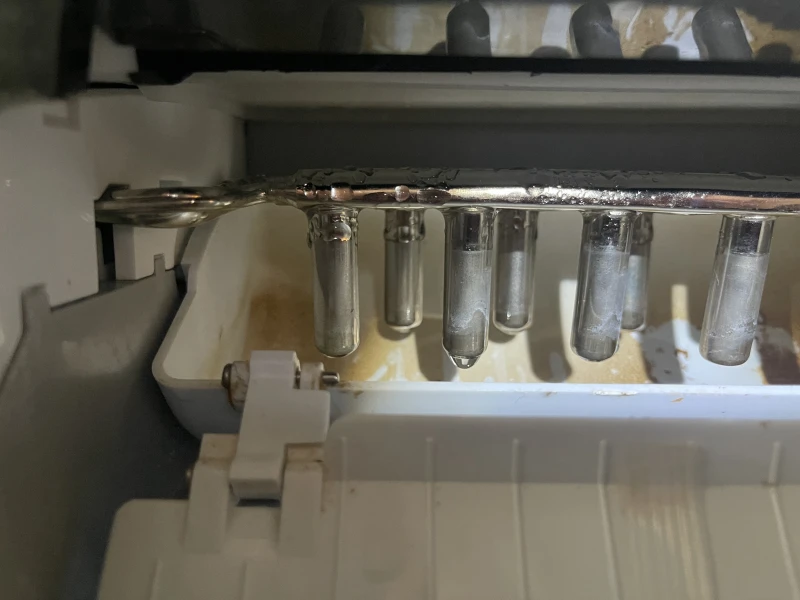

I **** trying to get the back of the ice maker clean, where the spokes are that freeze the water and the tray under it
