Visonic MCW Installation Instructions

NEXT
®
Wireless PowerCode Digital PIR Detector
1. INTRODUCTION
The NEXT MCW is a microprocessor-controlled wireless digital PIR
detector, designed for easy installation, free of vertical adjustment.
It features a cylindrical lens with uniform detection sensitivity
throughout its operating range, up to 12 meters (40 ft), with wall
creep zone protection.
NEXT is a registered mark of Visonic Ltd.
The advanced True Motion Recognition™ algorithm (patented)
allows the NEXT MCW to distinguish between the true motion of an
intruder and any other disturbances which may cause false alarms.
An on-board motion event jumper determines whether 1 or 2
consecutive motion events trigger an alarm.
The NEXT MCW includes the following features:
• Incorporates a fully supervised PowerCode transmitter
• Patented sophisticated motion analysis algorithm - True Motion
Recognition (TMR™)
• Sophisticated frequency domain digital signal processing
• No vertical adjustment is needed
• Programmable motion event counter
• After detection, the detector disarms itself to save battery
power. It rearms (reverts to the ready state) if there is no
subsequent detection throughout the following 2-minute period
• An optional version provides better protection for systems
compliant with DD243. After initial detection, the detector is
capable of 7 additional detections for a period of 5 minutes.
2. SPECIFICATIONS
OPTICAL
Detector Type: Dual element low-
noise pyroelectric sensor.
Lens Data
No. of Curtain Beams: 9 + 5
Max. Coverage: 12 x 12 m (40
x 40 ft) / 90°
ELECTRICAL
Internal Battery: 3V Lithium
battery, type CR-123A. For UL
installations, use Panasonic
Sanyo only.
Nominal Battery Capacity:
1450 mA/h.
Standby Current Drain: approx.
0.025 mA.
Transmit Current Drain: 20 mA
(including LED).
Battery Life (with LED on):
Typically over 3 years.
Battery Power Test: Performed immediately upon battery
insertion and periodically after every several hours.
FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or
2 (ON) motion events.
Alarm Period: 3 seconds.
Visual Indications:
LED Lights for about 3 seconds upon transmission of alarm &
tamper messages and upon motion detection in the walk test
mode.
LED Flashes during the power-up stabilization period, or
after restoring (pressing) the tamper switch.
LED Does not light upon transmission of supervision
messages.
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
Timer disabled in the walk test mode – not applicable for the
DD243 version (see section 1).
DE3591
MCW
or
Figure 3. Maximum
Coverage Pattern
Installation Instructions
Further detection is possible only if no movement occurs during
the following 2 minutes. The detector will revert to the initial
state if there is no movement for an additional 5 minutes.
• Very low current consumption
• Microprocessor-controlled temperature compensation
• Sealed chamber protects the optical system
• Front cover tamper switch.
• Back tamper switch (option)
• White light protection
• Elegantly styled, sturdy case

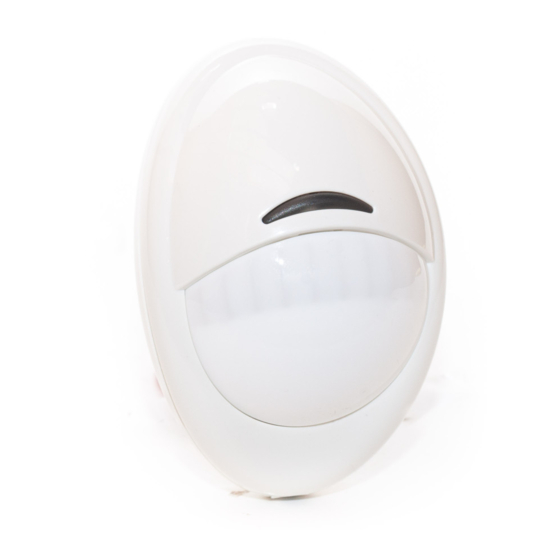

Figure 1. General View
For UL installations: The detector is for use with UL listed
control unit PowerMax+ only.
WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625
or other frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals
within 3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Signaling at 60-minute intervals (U.S.
version) or 15 minute interval (UK version), or according to the local
standards.
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft).
Installation Options: Surface or corner.
ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
ENVIRONMENTAL
RFI Protection: >20 V/m up to 1000 MHz.
Operating Temperatures: -10
Storage Temperatures: -20
Compliance with Standards: Designed to meet FCC Part 15
and Directive 1999/5/EC of the European Parliament.
EN 50131-2, Grade 2, Class II
PHYSICAL
Size (H x W x D): 94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-1/16").
Weight (with battery): 70 g (2.5 oz).
Color: White.
PATENTS: U.S. Patents 5,693,943
(another patent pending).
Figure 2. Inside View
C to 50 C (14 F to 122 F).
° ° ° °
C to 60 C (-4 F to 140 F).
° ° ° °
6,211,522 D445,709
