4.1
Figure 138 4G:
When using the KEMPER Vortex Flow Sensor M12x1 cable with loose strands Figure 138 00 012,
for connecting Vortex Flow Sensor Figure 138 4G and Figure 138 6G with a BMS, use the assign-
ments below:
PIN
1
4
3
2
5
20/ 24 – K41001384G001-00 – 07.2020 – © www.kemper-olpe.de
Diameter leaps in pipes are only permissible from larger to smaller if faulty
measurements are to be avoided.
In the case of potential temperature increases in the line system and the
resulting impermissibly high pressure increase (> 1,0 MPa; according to DIN EN
806-2) appropriate measures must be taken to prevent an inadmissible
overpressure.

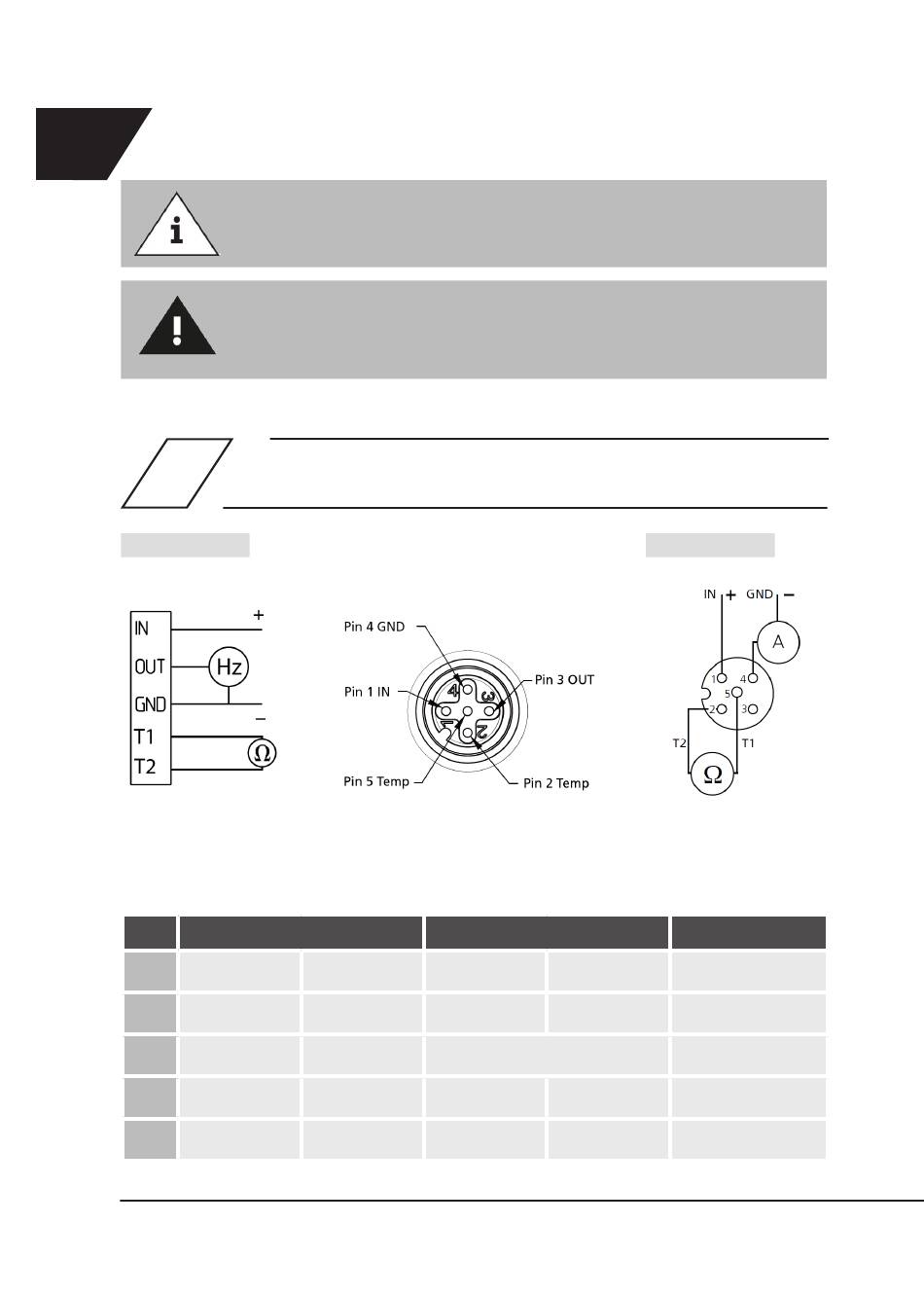

Wiring Diagram for Central Building Control System
Connection
Figure 138 4G
IN 5VDC
GND Ground
OUT Frequency
Temp. Pt1000
Temp. Pt1000
Figure 138 6G
IN 8...33VDC
GND Ground
No allocation!
Temp. Pt1000
Temp. Pt1000
Figure 138 6G:
Strand colour
brown
black
blue
white
grey (green/yellow)
