EN
1.2

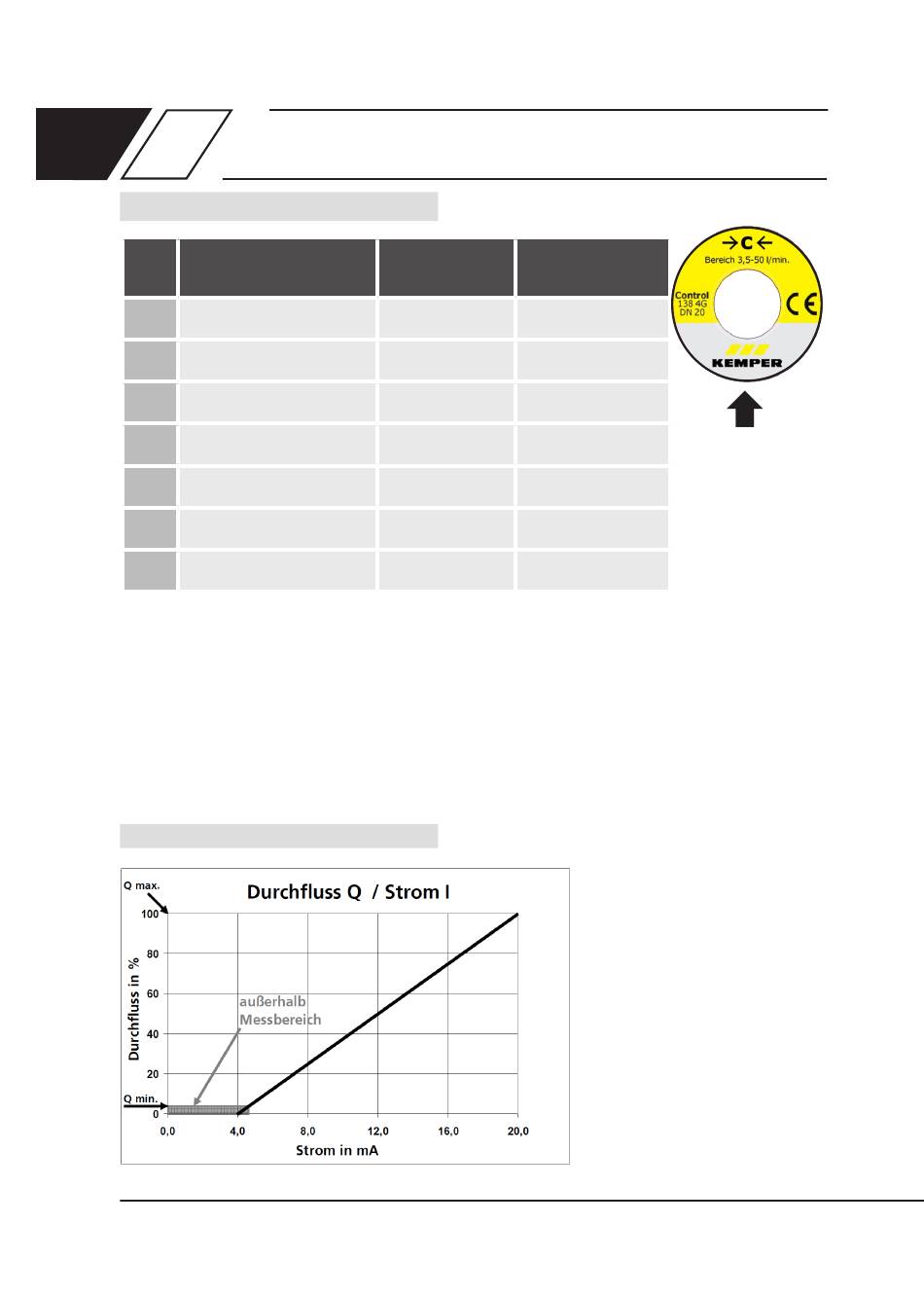

Throughflow Measurement (Figure 138 4G): Measuring range for water
Throughflow (l/min.)
DN
10
15
20
25
32
40
50
For unequivocal identification of the sensor's attendant measuring ranges, each sensor
dimension on the protective cap of the upper shell is supplied with the relevant letter
(e.g. >c<), in order to avoid erroneous settings in the central building control system or the optio-
nal portable measuring device (Figure 138 00 002).
Example: shell code >c< indicates a DN 20 sensor size (or valve size) with a measurable through-
flow of 3.5 – 50 l/min. and a frequency f of ca. 21...279 Hz.
Throughflow Measurement (Figure 138 6G): Measuring range for water:
16/ 24 – K41001384G001-00 – 07.2020 – © www.kemper-olpe.de
Technical attributes
Frequency (f)
Q min - Q max
0,9 - 15 ca. 30...388 Hz
1,8 - 32 ca. 24...385 Hz
3,5 - 50 ca. 21...279 Hz
5,0 - 85 ca. 14...233 Hz
9,0 - 150 ca. 13...206 Hz
11,0 - 188 ca. 15...264 Hz
18 ,0- 316 ca. 11...191 Hz
Portable device
range
>a<
>b<
>c<
>d<
Example:
shell code
>e<
>f<
>g<
>c<
