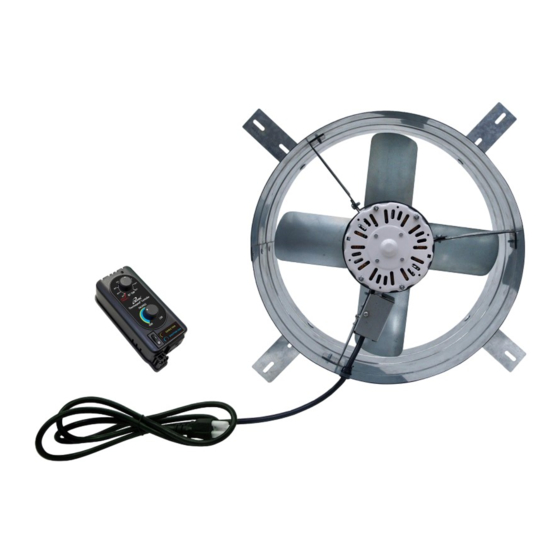

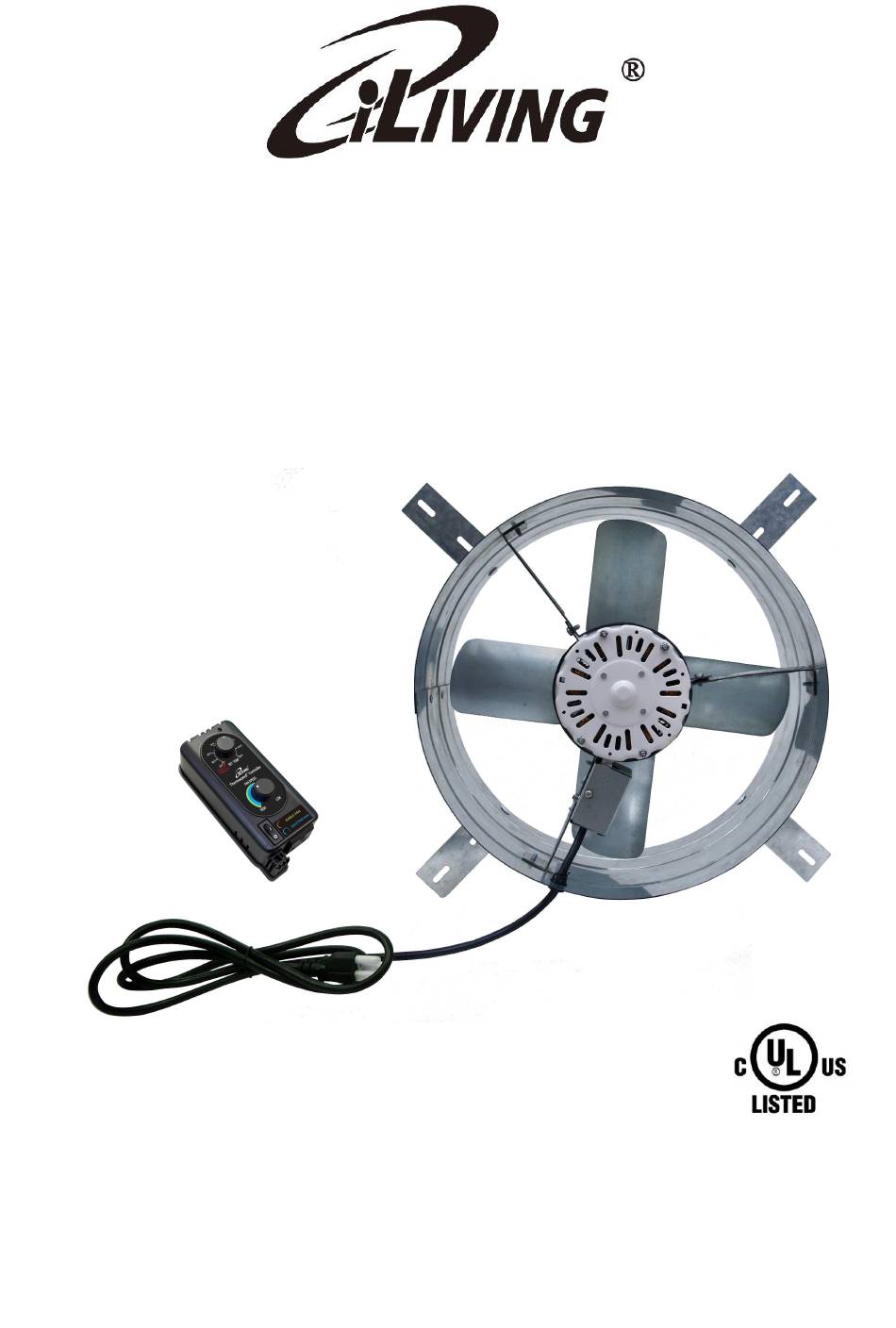

- Page 1 Variable Speed Attic Gable Fan MODEL : ILG8G14-22ST (Fan + Thermospeed Controller) MODEL : ILG8G14-22 (Attic Gable Fan Only) Owner’s Manual PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions………………………………………. Specifications……………………..………………………….. 5-6 Installing Instructions……………………….…………..…… Operating Instructions……………………….………..……. Maintenance and Cleaning………………………………….. Troubleshooting……………………………………………….. 10... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS CAUTION: Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Do not use the fan if any part is damaged or missing. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. - Page 4 11. Ensure that the power source conforms to the electrical requirements of the fan. 12. Fan is intended for general air circulation ONLY. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden, or wet atmospheres. Keep a suitable distance from the louver when installed, since rain may create an electrical hazard.
-
Page 5: Specifications
SPECIFICATION MODEL: ILG8G14-22ST ILG8SFST ILG8G14 Controller (Included in ILG8G14-22ST ONLY) A: Thermospeed (TM) Green color control range for Gable Fan Blue color control range for Shutter Fan B: GALVANIZED STEEL DRUM HOUSING C: PROPELLER D: MOUNTING BRACKET E: POWER CORD... - Page 6 Dimensions (mm)
-
Page 7: Installing Instructions
INSTALLATION INSTRUCTION WARNING: Turn off the wall switch prior to servicing the unit. To avoid personal injury, wall switch must be turned off before servicing since the built-in thermal protection may turn on the circulator automatically. 1. A gable mount ventilator is intended to be mounted in a gable wall. If your existing gable vent is large enough, just mount the fan directly behind it. - Page 8 4. Use a sabre saw to cut out the airway on the plywood for mounting the gable mount ventilator. 5. Place the fan mounting bracket on the plywood, center the fan over the opening and fix the bracket to the plywood with screws which no smaller than ø...
-
Page 9: Operating Instructions
Installation Diagram OPERATION INSTRUCTION Please set the Thermospeed Controller to a desired condition before operating. To avoid the possibility of overturning the fan, operate on a stable, level surface. Do not move fan while it is in operation. -
Page 10: Maintenance And Cleaning
MAINTENANCE AND CLEANING WARNING: Parts replacement and troubleshooting to be performed only by qualified personnel. WARNING: Turn off the wall switch before servicing or cleaning. CAUTION: There is no user maintenance part except regular cleaning as indicated below. All other servicing or maintenance should be performed by qualified service personnel. - Page 11 Love it? Help us make the product more for you. Let us know with a customer review. https://www.amazon.com/review/review-your-purchases# Please visit: At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road, Burlingame, CA 94010...
