Controlmini, User manual

6 Installation and start-up

The Controlmini can be mounted to the wall both flush (flush-mounted box PNX-
018-A17-00023 ) and surface-mounted (surface-mounted frame PNX-018-A18-00041).
Furthermore, it is possible to mount the Controlmini with a suitable adapter frame on
various flush-mounted boxes of other manufacturers. Further instructions for mounting the
surface-mounted version or fixing with the help of adapters are supplied with the respective
surface-mounted frame or adapter.

6.1 Preparation

Note: We recommend hedging the panel, since in rare cases the panel must be taken comple-
tely from the power supply, see section 9.1.2 Disconnecting the panel from the power supply.
Necessary accessories for the installation of the panel:
■
Flush-mounted box (PNX-018-A17-00023) or surface-mounted frame (PNX-
018-A18-00041)
■
Glass cover
■
Power supply unit 24 V DC for DIN rail (PNX-019-A18-00039) (recommended)
or
■
Power supply unit 24 V DC for the flush-mounted box (PNX-019-A19-00071)

6.2 Flush-mounted installation

Tip: Choose the installation height of the panel according to the height of the primary user
so that the top edge of the panel is at his/her eye level. A slightly lower screen prevents
fatigue of the arms during operation.

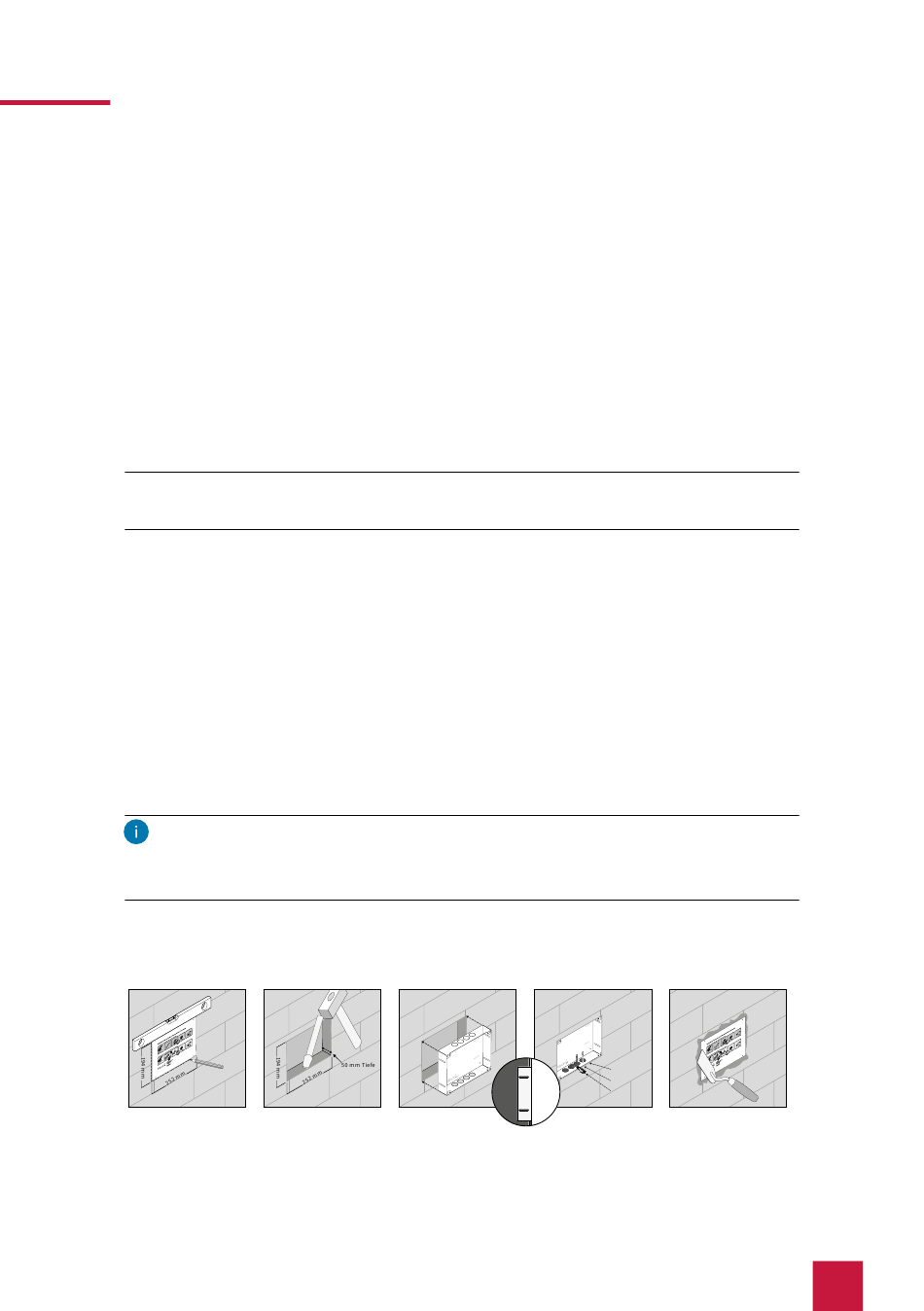

6.2.1 Installation in brickwork
Mauerwerkinstallation/Brickwork-Installation
Hohlwandmontage/Cavity Wall Installation
Beide Holzklötze in der Wand befestigen.
Fit the two wooden fillets inside the wall.
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
