PARTS AND QUANTITIES

Many of the provided parts are pre-assembled before shipping. This helps to ensure all necessary parts are included
and checked for proper fit before delivery. Ensure all assembled parts are contained in the shipping crate BEFORE
starting installation (Fig.2).
Shade specification drawing — specific to your shade and provided as a separate document
Mounting clamps w/mounting hardware and bolt covers
Pre-assembled actuators
Roller assembly w/mounting hardware
Outer crossbar w/mounting hardware
Mid-crossbar w/mounting hardware
Pre-rolled canvas (attached to roller assembly)
Pre-programmed electronic controller w/wireless remote
Starboard and port control harness w/Deutsch connectors

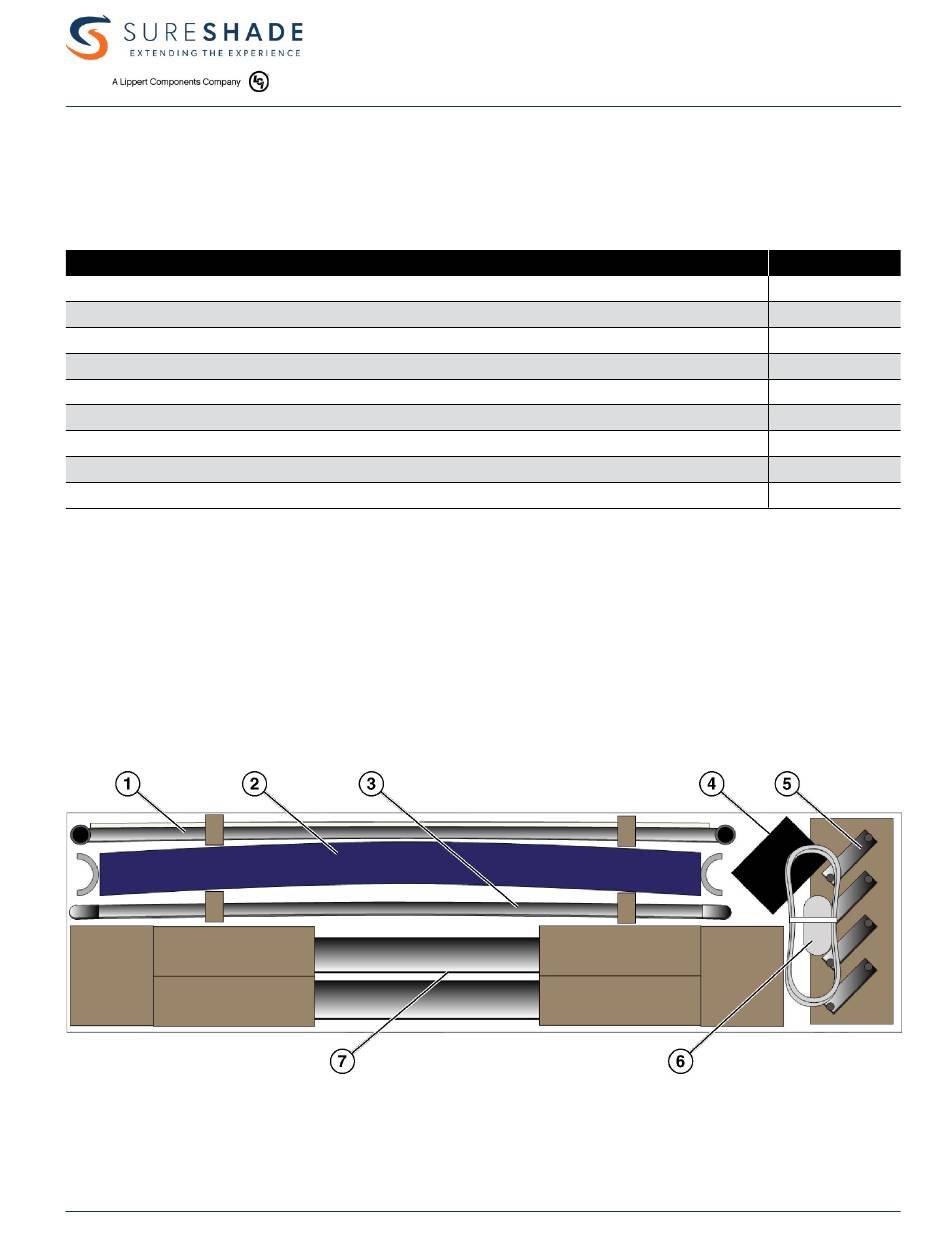

Packing contents:
1. Outer Crossbar
2. Roller Assembly
3. Mid-Crossbar
4. Electronic Controller/Connections/Wireless remote
5. Mounting Clamps
6. Control Harness, Roller Clamps, Miscellaneous Hardware
7. Actuators.
Fig.2
Rev: 08.11.20 877-333-8323
PART
9

PREPARATION

QUANTITY
CCD-0003846 sureshade.com
1
4
2
1
1
1
1
1
2
