PUTCO 470210 Installation Instructions

HOOD SHIELD INSTALLATION INSTRUCTIONS

Congratulations on your purchase of a high quality PUTCO product. Should you need
any application or technical assistance feel free to call us at: 1-800-247-3974
Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)
Please read all instructions before installation and to check to see that all parts are included.

Kit Contents:

Description

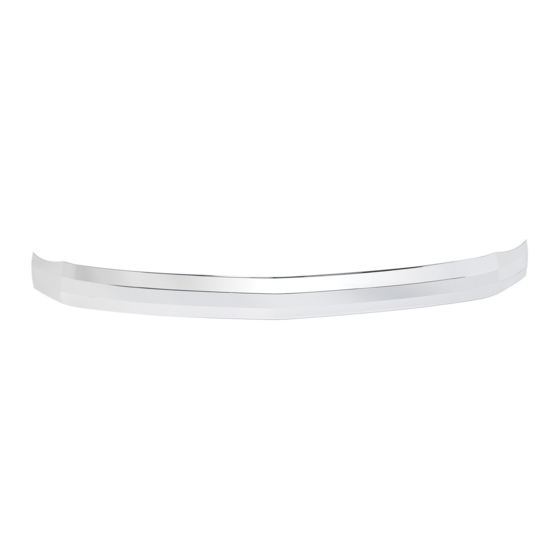

Hood Shield
Well Nut 6-32 (A)
Well Nut 8-32 (B)
6-32 Philips Bolt (C)
8-32 x ¾" Philips Bolt (D)
3/16 Flat Washer (E)
Rubber Bump-on
Note: Rubber Bump-on is required for this
application to prevent damage to the
hood.

Installation Temperature:

•
60º - 110º F (16º - 43º C)
1. Clean and open the hood. Make sure that the
hood is free of any dirt or debris.
2. Trial fit Hood Shield by aligning the mounting holes of the Hood Shield with the
matching holes in the hood. (Figure 1)
3. Attach supplied hardware to hood shield. Use figure 1 and 2 as a guide for
proper hardware placement.
4. Re-fit Hood Shield to the factory hood by aligning the rubber well nuts up with
the factory slots. (Figure 1) Attach Hood Shield to the vehicle by installing the
center mounting points first and working outwards. Tighten screws just enough
to hold hood shield in place.
5. Center Hood Shield on the hood and tighten screws using a Philips screw
driver until snug. Close hood carefully to check the fitment. If the Hood Shield
is not centered loosen the screws and adjust until it is centered and re-tighten
the screws.
6. Attach rubber bump-on to the factory hood where the corners of the Hood
Shield are closest to the hood. (Figure 3) Clean area first with isopropyl
alcohol and remove adhesive backing from bump-on and apply to hood.

LIMITED 1 YEAR WARRANTY

Putco guarantees it's Stainless Steel and Aluminum products against defects in workmanship and material for as long as you own
your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty material or
workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor costs. Damages
caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco. Putco is not liable for
any vehicle damage resulting from the installation of our Hood Shield.
www.putco.com
Contact your PUTCO dealer for other quality accessories.
Qty.
1
2
A
2
2
2
4
2
470210 & 570210
2010-2013 Dodge Ram HD
B C
B
Figure 1
2/25/2013
D E
A
B
Figure 2
D
Figure 3
332
Bump-
332
Page 1 of 3
B
E
on
