PUTCO 46134 Installation Instructions

.
Should you need any application or technical assistance feel free to call us at:
Contact your PUTCO dealer for other quality accessories.
Please read all instructions before beginning installation and be sure to check to see that all parts and
hardware are included.
D e s c r i p t i o n

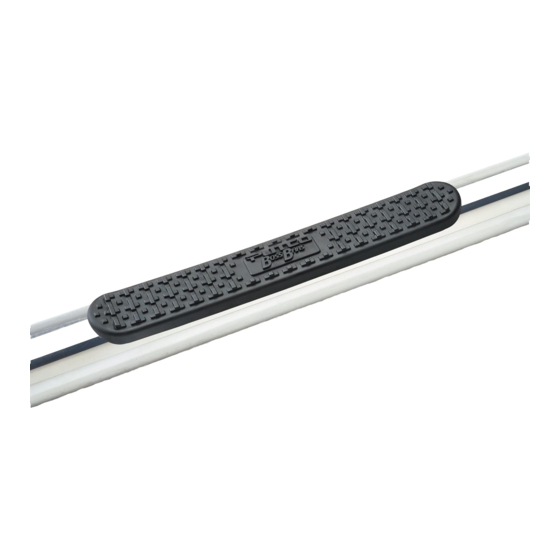

B o s s B a r ( D r i v e r a n d P a s s e n g e r )
F r o n t B r a c k e t ( # 1 9 6 1 )
R e a r B r a c k e t ( # 1 9 6 0 )
F r o n t S t r a p ( 9 - 1 / 2 " l o n g ) ( # 1 9 6 3 )
R e a r S t r a p ( 1 2 - 1 / 2 " L o n g ) ( # 1 9 6 2 )
1 / 2 " x 2 " H e x h e a d b o l t s ( # 0 0 7 3 8 )
1 / 2 " F l a t w a s h e r ( # 7 7 5 )
1 / 2 " L o c k w a s h e r ( # 7 8 3 )
1 2 m m x 1 2 0 m m ( # 7 6 3 )
1 / 4 " x 1 " S e l f d r i l l i n g s c r e w ( # 7 0 1 )
3 / 8 " x 1 " S e l f t a p p i n g s c r e w ( # 0 0 7 3 9 )
Step 1: Attach the brackets to the Boss Bars as shown in Figure 1. Tighten the bolts hand tight.
Step 2: Remove the bolts from the body mounts located under the cab of the truck. Position the Boss Bar assembly up to the
body mounts and install with the metric bolts provided in the bolt kit.
Step 3: Tighten and the body mount bolts and the 1/2" Boss Bar bolts.
Step 4: Drill a 21/64" hole on the inside edge of the boss bar. Drill the hole about 3" from the main bracket for the front and 7"
from the main bracket for the rear. Attach the support straps to the drilled holes using the 3/8" self threading bolts.
Position the support straps as shown then tighten.
Step 5: Make sure the Boss Bar is level, then fasten the top of the support straps to the body channel under the cab of the truck
using the 1/4" self drilling screws.
Note: PUTCO recommends applying a high quality automotive wax to maintain the original appearance on your new
Boss Bars.
INSTRUCTION # IN46132-April 2001
Instructions for part # 46132, 46134, 46135, 46136
Putco guarantees it's Stainless Steel and Aluminum products against defects in workmanship and material for
as long as you own your vehicle. Black products have a 90 day warranty on the painted surface. Any defects resulting
from faulty material or workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco
assumes no extra labor costs. Damages caused by freight carriers, improper installation, misuse, collision, or neglect
INSTALLATION INSTRUCTIONS FOR BOSS BARS FOR #46135
94-01 DODGE RAM CLUB/QUAD CAB LONG BOX WHEEL TO WHEEL
Congratulations on your purchase of a high quality PUTCO product.
Monday-Friday 8:00 a.m.- 5:00 p.m. (Central Standard Time)
P a r t s L i s t
Q t y

LIMITED WARRANTY

will not be warranted by Putco.
PUTCO Inc. - 216 West First Street - Story City, Iowa 50248
Tools N eeded for Installation
19m m S ocket
2
2
9/16" S ocket
2
2
2
4
8
8
4 3/8" M agnetic Drive S ocket
4
4
NOTE: the rear strap is longer than the front strap.
1-800-247-3974
3/4" Socket
7/16" S ocket
Torque W rench
Power Drill
