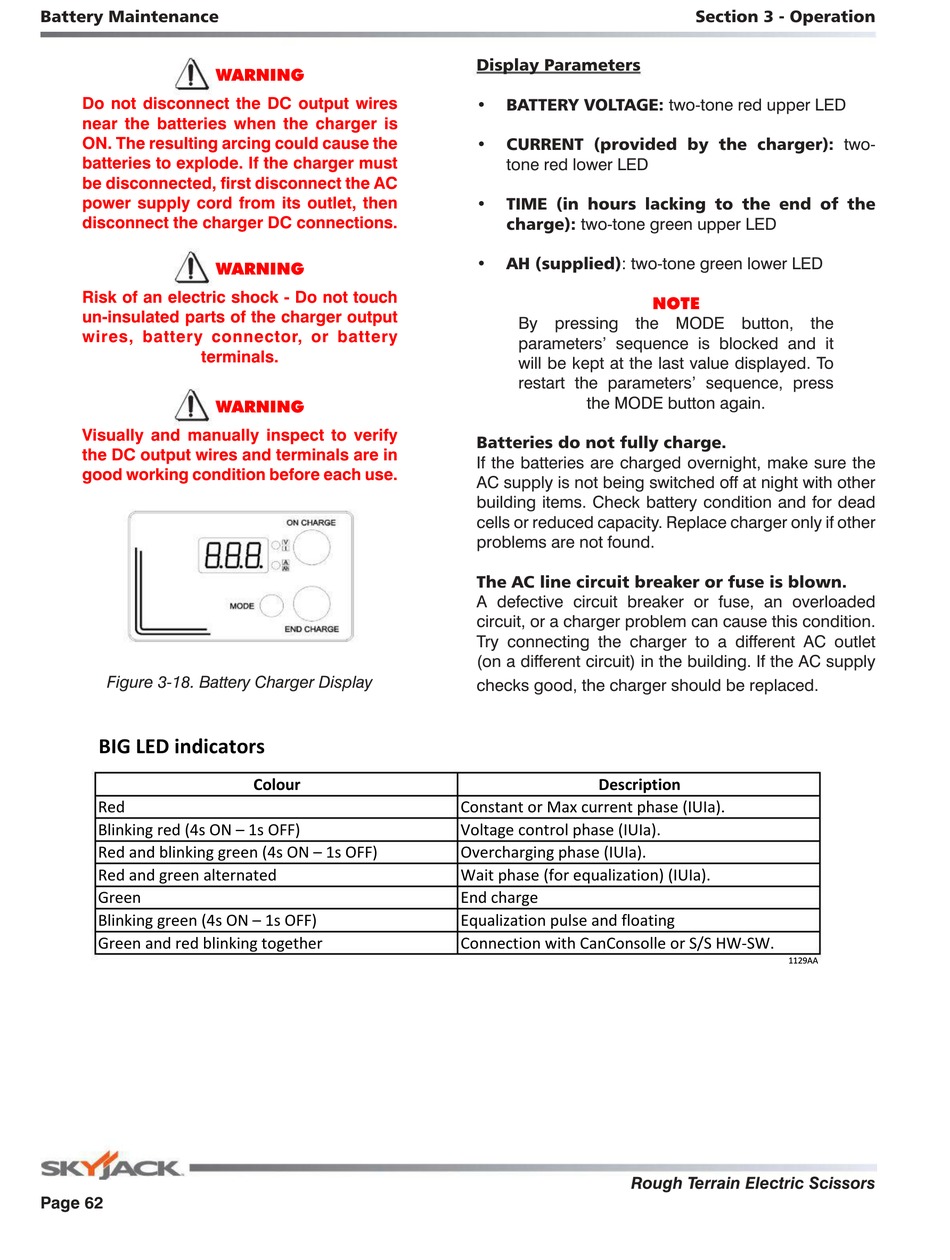

Skyjack SJ6832 RTE Operating Manual page 62

Battery Maintenance
Do not disconnect the DC output wires
near the batteries when the charger is
ON. The resulting arcing could cause the
batteries to explode. If the charger must
be disconnected, first disconnect the AC
power supply cord from its outlet, then
disconnect the charger DC connections.
Risk of an electric shock - Do not touch
un-insulated parts of the charger output
wires, battery connector, or battery
terminals.
Visually and manually inspect to verify
the DC output wires and terminals are in
good working condition before each use.
Figure 3-18. Battery Charger Display
BIG LED indicators
Red
Blinking red (4s ON – 1s OFF)
Red and blinking green (4s ON – 1s OFF)
Red and green alternated
Green
Blinking green (4s ON – 1s OFF)
Green and red blinking together
Page 62
WARNING
WARNING
WARNING
Colour
Display Parameters
• BATTERY VOLTAGE: two-tone red upper LED
• CURRENT (provided by the charger): two-
tone red lower LED
• TIME (in hours lacking to the end of the
charge): two-tone green upper LED
• AH (supplied): two-tone green lower LED
By pressing the MODE button, the
parameters' sequence is blocked and it
will be kept at the last value displayed. To
restart the parameters' sequence, press
Batteries do not fully charge.
If the batteries are charged overnight, make sure the
AC supply is not being switched off at night with other
building items. Check battery condition and for dead
cells or reduced capacity. Replace charger only if other
problems are not found.
The AC line circuit breaker or fuse is blown.
A defective circuit breaker or fuse, an overloaded
circuit, or a charger problem can cause this condition.
Try connecting the charger to a different AC outlet
(on a different circuit) in the building. If the AC supply
checks good, the charger should be replaced.
Constant or Max current phase (IUIa).
Voltage control phase (IUIa).
Overcharging phase (IUIa).
Wait phase (for equalization) (IUIa).
End charge
Equalization pulse and floating
Connection with CanConsolle or S/S HW-SW.
December 2007
Section 3 - Operation
NOTE
the MODE button again.
Description
Rough Terrain Electric Scissors
1129AA
