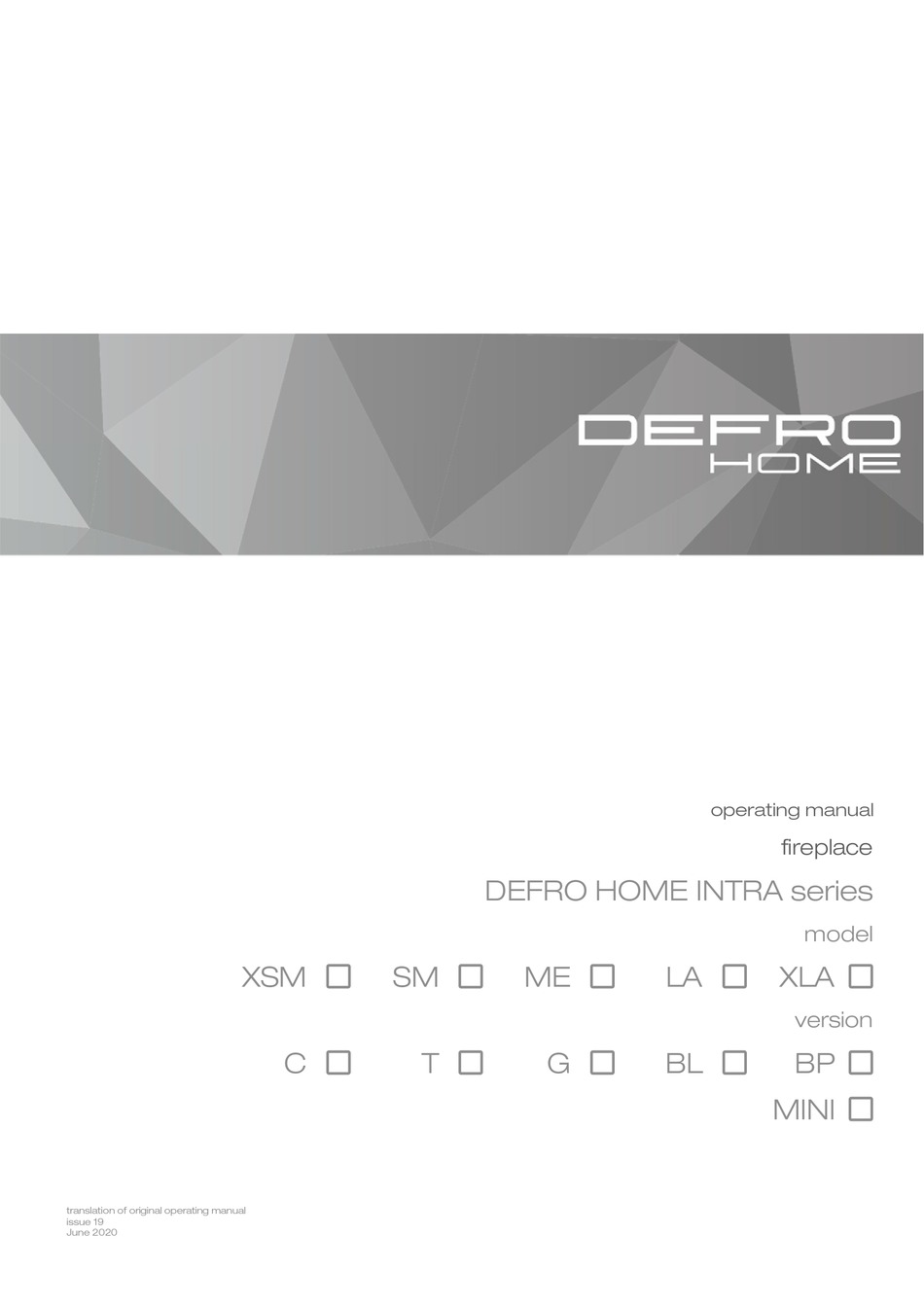

  • Page 1   operating manual fireplace DEFRO HOME INTRA series model XSM  SM  ME  LA  XLA  version C  T  G  BL  BP  MINI  translation of original operating manual issue 19 June 2020...
  • Page 2     DEKLARACJA ZGODNOŚCI WE  DECLARATION OF CONFORMITY EC  nr 63/R‐2/01/2017 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa  00‐403 Warszawa, ul. Solec 24/253  Manufacturing plant:  26‐067 Strawczyn, Ruda Strawczyńska 103A    DEKLARUJE / DECLARES  z pełną odpowiedzialnością, że produkt / with all responsibility, that the product    Wkład kominkowy powietrzny / Fireplace  DEFRO HOME INTRA    (typ/type DEFRO HOME INTRA)  został zaprojektowany, wyprodukowany i wprowadzony na rynek zgodnie z następującymi dyrekty‐ wami:  has been designed, manufactured and placed on the market in conformity with directives:  Rozporządzenie Parlamentu Europejskiego / Regulation  of the European Parliament 305/2011    i niżej wymienionymi normami zharmonizowanymi:  and that the following relevant Standards:    PN‐EN 13229:2002    dokumentacja techniczna / technical documentation    Wyrób oznaczono znakiem:  Product has been marked:    Ta deklaracja zgodności traci swą ważność, jeżeli we wkładzie kominkowym DEFRO HOME  INTRA wprowadzono zmiany, została przebu‐ dowana bez naszej zgody lub jest użytkowana niezgodnie z instrukcją obsługi. Niniejsza deklaracja musi być przekazana wraz z wkładem  kominkowym w przypadku odstąpienia własności innej osobie.   This Declaration of Conformity becomes invalid if any changes have been made to the DEFRO HOME INTRA Fireplace, if its construction has  been changed without our permission or if the fireplace is used not in accordance with the operating manual. This Declaration shall be  handed over to a new owner along with the title of ownership of the fireplace.  Wkład kominkowy DEFRO HOME  INTRA jest wykonywany zgodnie z dokumentacją techniczną przechowywaną przez:  ...
  • Page 3 Dear Customer, Dear Customer, We would like to thank you for choosing the high quality DEFRO prod- We would like to inform you that we make every efforts to offer uct which will ensure your safety and operational reliability. products of quality fulfilling the most restrictive standards and warrant- ing operational safety.

  • Page 4: Table Of Contents

    Table of Contents 1.  INFORMATION..................................................5  2.  BASIC SAFETY RULES................................................5  2.1.  Safety warnings ................................................. 5  2.2.  Warnings related to operation............................................. 6  3.  INTENDED USE ..................................................6  4.  TECHNICAL SPECIFICATION ..............................................6  4.1.  Design ..................................................6  4.2.  Technical data ................................................7  4.3. ...

  • Page 5: Information

    2. BASIC SAFETY RULES 1. INFORMATION 2.1. SAFETY WARNINGS Operating manual is an integral and essential part of the product  The national and local provisions should be met. and must be forwarded to the user also in the case when the property ...

  • Page 6: Warnings Related To Operation

     Request a new copy from an authorized sales outlet in DEFRO company if it has been lost. Picture 2. Design of DEFRO HOME INTRA fireplace insert in G ver- 3. INTENDED USE sion. DEFRO HOME INTRA fireplace inserts as a furnace with manual 1 –...

  • Page 7: Technical Data

    9 11 Picture 3. Design of DEFRO HOME PRIMA fireplace insert with side window panel. 1 – body, 2 – furnace chamber, 3 – doors, 4 – fire-proof window panel, 5 – handle with lock, 6 – frame, 7 – floor, 8 – grate, 9 – ash-pan container, 10 – air intake socket, 11 –...
  • Page 8 Picture 5. Dimensions of fireplace insert Picture 6. Dimensions of fireplace insert DEFRO HOME INTRA SM. DEFRO HOME INTRA ME. 1014 Picture 7. Dimensions of fireplace insert Picture 8. Dimensions of fireplace insert DEFRO HOME INTRA LA. DEFRO HOME INTRA SM G.
  • Page 9 1195 1118 Picture 9. Dimensions of fireplace insert Picture 10. Dimensions of fireplace insert DEFRO HOME INTRA ME G. DEFRO HOME INTRA LA G. Picture 11. Dimensions of fireplace insert Picture 12. Dimensions of fireplace insert DEFRO HOME INTRA SM BP.
  • Page 10 Picture 13. Dimensions of fireplace insert DEFRO HOME INTRA SM BP MINI version (with right window Picture 14. Dimensions of fireplace insert panel). DEFRO HOME INTRA SM BP MINI G version. 1044 Picture 15. Dimensions of fireplace insert Picture 16. Dimensions of fireplace insert DEFRO HOME INTRA SM BP in G version.
  • Page 11 Picture 17. Dimensions of fireplace insert Picture 18. Dimensions of fireplace insert DEFRO HOME INTRA SM T. DEFRO HOME INTRA SM T in G version. 1027 Picture 19. Dimensions of fireplace insert Picture 20. Dimensions of fireplace insert DEFRO HOME INTRA ME T.
  • Page 12 1017 1195 1114 Picture 21. Dimensions of fireplace insert Picture 22. Dimensions of fireplace insert DEFRO HOME INTRA LA T. DEFRO HOME INTRA LA T in G version. 1531 1453 1178 Φ125 Φ147 Φ125 1282 Picture 23. Dimensions of fireplace insert Picture 24.

  • Page 13: Equipment

    Φ197 1009 Picture 25. Dimensions of fireplace insert Picture 26. Dimensions of fireplace insert DEFRO HOME INTRA ME C in G version. DEFRO HOME INTRA SM C in G version. Table 1. Technical data of fireplace. Parameters DEFRO HOME PRIMA...

  • Page 14: Fuel Parametrs

    20% (wood seasoned in proper conditions for at least 2 years). The maximum length of chunks is given in table 1. It is allowed to use wood Fireplace insert DEFRO HOME INTRA should be in- briquette. stalled in compliance with the requirements of the cur-...

  • Page 15: Hot Air Distribution System

    Installation of 80 mm DEFRO HOME INTRA G fireplace insert in such system will void the warranty. It is indicated to use bigger expansion joint what translates 80 mm 80 mm into longer and trouble-free operation of doors mechanism.

  • Page 16: Connection To External Air Intake

     Installation of the DGP system should be entrusted to a be made of materials resistant to normal mechanical specialized company, which will check heat demand for stresses, heat, the action of combustion products and possi- the given area and will correctly design connection sys- ble condensate, tem and arrangement of the individual parts.

  • Page 17: First Start-Up And Operation

    Never stand in front of the fireplace insert door while opening. Burn risk. Hinged doors should not be opened during combustion closed in case of G version of the DEFRO HOME INTRA fire- open place insert. Lifting upwards is a normal method for the opening of guillotine doors.

  • Page 18: Window Panel Cleaning

    38. Location of transoms enabling the opening of side windows Picture in the lift door in the C version of the DEFRO HOME INTRA C G fire- Picture 35. View of fireplace insert DEFRO HOME INTRA G with place insert.

  • Page 19: Doors/Gaskets

    Tilt doors from bottom to outside to ensure that the bottom pin of 7.3. DOORS DISASSEMBLY the hinge is outside the frame. In G version of the DEFRO HOME INTRA fireplace insert all works related to the doors or their mechanism should be entrusted to the qual- ified service of the manufacturer.

  • Page 20: Window Panel Dismantling

    7.4. WINDOW PANEL DISMANTLING Lift up the deflector unit: vermiculite deflector(1), holding beam (2) and steel deflector(3). It is possible to disassemble the window panel after the doors have been disassembled. The best way is to disassemble the window panel when the doors are in horizontal position (e.g. when such doors lie on the table).

  • Page 21: Disassembly Of Claddings Made Of Fire-Proof Concrete

    Remove grate. Inspection holes are located in both side walls of the fireplace in- sert DEFRO HOME INTRA G. They are intended only for use by the qualified service of the manufacturer to ensure access during adjust- ment and maintenance works. Access to these holes is possible after dismantling claddings made of heat-resistant concrete (description of the disassembly in chapter 7.6).

  • Page 22: Shutting The Stove Down

     7.8. SHUTTING THE STOVE DOWN damp a fire in the chimney by the closing inflow of cold air to the furnace chamber; It is recommended completely shutdown the fireplace and clean  close fireplace’s door and cleaning holes tightly to cut off air the equipment when each heating season is finished.
  • Page 23 5 years for correct operation of the equipment, fice or the Guarantor. The Guarantor is not liable for loss of data 2 years for doors lifting system for DEFRO HOME INTRA saved in the equipment and for economical losses and lost profits.

  • Page 24: Warranty Conditions "48H Service

    warranty claim only in the case when a claim is not accepted as claims and does not end the complaint processing procedure. DE- a result of stating circumstances which are listed in points 17 and FRO reserves the right to charge the equipment’s user with com- 18 mentioned above.

  • Page 25: Warranty Card

    WARRANTY CARD Confirmation of equipment’s quality and completeness In accordance with the conditions stated herein, warranty for a fireplace insert type DEFRO HOME INTRA ......operated in accordance with the operating manual has been issued. Equipment manufacturing number* Equipment power...

  • Page 26: Carried Out Warranty Repairs And Maintenance

    14. CARRIED OUT WARRANTY REPAIRS AND MAINTENANCE. fault description, repaired element, Stamp and signature date comments description of repairs of Service...

  • Page 27: Warranty Card /Copy To Send Back

    WARRANTY CARD Confirmation of equipment’s quality and completeness In accordance with the conditions stated herein, warranty for a fireplace insert type DEFRO HOME INTRA ......operated in accordance with the operating manual has been issued. Equipment manufacturing number* Equipment power...

  • Page 29: Complaint Form

    16. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no......SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: Detailed address: Phone number DETAILED DESCRIPTION OF QUALITY FAULTS OR FAULTS RESULTING FROM THE MANUFACTURER’S FAULT ..............................................

  • Page 31: Complaint Form

    17. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no......SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: Detailed address: Phone number DETAILED DESCRIPTION OF QUALITY FAULTS OR FAULTS RESULTING FROM THE MANUFACTURER’S FAULT ..............................................

  • Page 33: Complaint Form

    18. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no......SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: Detailed address: Phone number DETAILED DESCRIPTION OF QUALITY FAULTS OR FAULTS RESULTING FROM THE MANUFACTURER’S FAULT ..............................................

  • Page 35: Register Of Inspections Of Smoke Ducts

    19. REGISTER OF INSPECTIONS OF SMOKE DUCTS date stamp and signature of a chimneysweep date stamp and signature of a chimneysweep...
  • Page 36 No. DHINTRA-XSM-01/2018 1. Identification code of product-type KOM-DHINTRA-XSM. KOM-DHINTRA-XSM-C-G 2. Building product (name, type, series) Product name: Fireplace DEFRO HOME INTRA XSM Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4.
  • Page 37 SM-BL-MINI, KOM-DHINTRA-SM-BL-MINI-G, KOM-DHINTRA-SM-BP-MINI-G, KOM-DHINTRA-SM-T, KOM-DHINTRA-SM-T-G, KOM-DHINTRA-SM-C-G 2. Building product (name, type, series) Product name: Fireplace DEFRO HOME INTRA SM Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4. Name and contact address of the manufacturer DEFRO Spółka z ograniczoną...
  • Page 38 KOM-DHINTRA-ME-BL-G. KOM-DHINTRA-ME-T, KOM-DHINTRA-ME-SHORT, KOM-DHINTRA-ME-T, KOM-DHINTRA-ME-T-G, KOM-DHINTRA-ME-C-G 2. Building product (name, type, series) Product name: Fireplace DEFRO HOME INTRA ME Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4. Name and contact address of the manufacturer DEFRO Spółka z ograniczoną...
  • Page 39 1. Identification code of product-type KOM-DHINTRA-LA, KOM-DHINTRA-LA-G, KOM-DHINTRA-LA-T, KOM-DHINTRA-LA-T-G 2. Building product (name, type, series) Product name: Fireplace DEFRO HOME INTRA LA Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4.
  • Page 40 No. DHINTRA-XLA-01/2019 8. Identification code of product-type KOM-DHINTRA-XLA-G 9. Building product (name, type, series) Product name: Fireplace DEFRO HOME INTRA LA Serial number: See rating plate 10. Application of building product Room heater fired with solid fuel in the buildings 11.
  • Page 41 00-403 Warszawa Ul. Solec 24/253 Manufacturing plant 26-067 Strawczyn Ruda Strawczyńska 103A MODEL IDENTIFICATION PARAMETERS J.M. OF THE EQUIPMENT DEFRO HOME INTRA XSM DEFRO HOME INTRA XSM CG Energy efficiency A⁺ A⁺ class Direct thermal power Indirect thermal power Energy...
  • Page 42 OF THE EQUIPMENT DEFRO HOME INTRA SM BP MINI DEFRO HOME INTRA SM BL MINI DEFRO HOME INTRA SM BP MINI G, DEFRO HOME INTRA SM BL MINI G DEFRO HOME INTRA SM T DEFRO HOME INTRA SM T G...
  • Page 43 DEFRO HOME INTRA ME BP PARAMETERS J.M. DEFRO HOME INTRA ME BL OF THE EQUIPMENT DEFRO HOME INTRA ME BP G DEFRO HOME INTRA ME BL G DEFRO HOME INTRA ME T DEFRO HOME INTRA ME T G DEFRO HOME INTRA ME C G Energy efficiency A⁺...
  • Page 44 Ruda Strawczyńska 103A MODEL IDENTIFICATION DEFRO HOME INTRA LA PARAMETERS DEFRO HOME INTRA LA G J.M. OF THE EQUIPMENT ,DEFRO HOME INTRA LA T DEFRO HOME INTRA LA T G Energy efficiency class Direct thermal 16,5 power Indirect thermal power...
  • Page 45 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa 00-403 Warszawa Ul. Solec 24/253 Manufacturing plant 26-067 Strawczyn Ruda Strawczyńska 103A MODEL IDENTIFICATION PARAMETERS J.M. DEFRO HOME INTRA XLA G OF THE EQUIPMENT Energy efficiency class Direct thermal 22,4 power Indirect thermal power...
  • Page 48 service hotline call us: 509 702 720 509 577 900 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa 00-403 Warszawa, ul. Solec 24/253 Manufacturing plant: Ruda Strawczyńska 103 A 26-067 Strawczyn tel.: 41 303 80 85, biuro@defro.pl NIP 9591968493...
