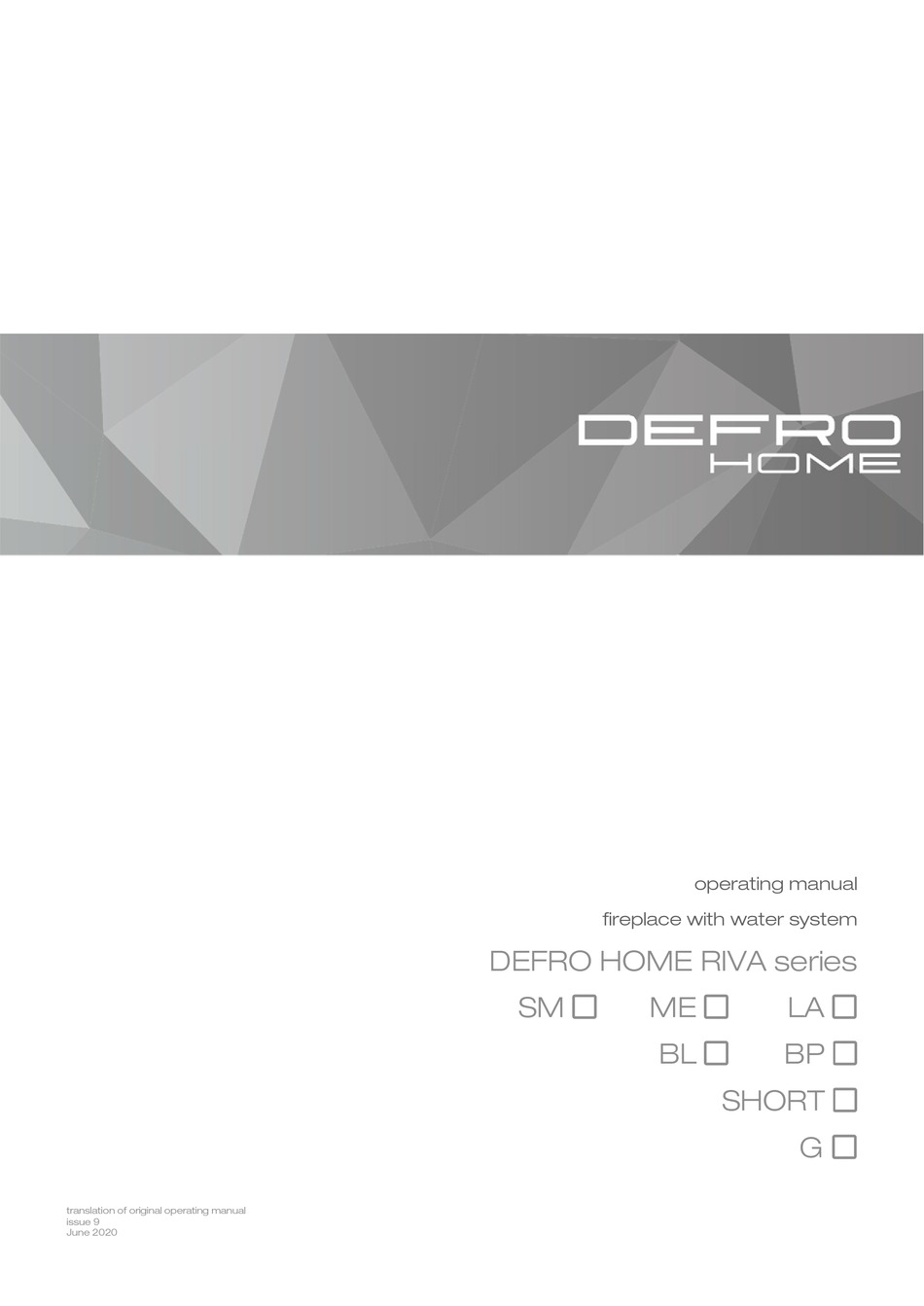

- Page 1 operating manual fireplace with water system DEFRO HOME RIVA series SM ME LA BL BP SHORT G translation of original operating manual issue 9 June 2020...
- Page 2 DEKLARACJA ZGODNOŚCI WE DECLARATION OF CONFORMITY EC nr 63/R‐2/01/2017 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa 00‐403 Warszawa, ul. Solec 24/253 Manufacturing plant: 26‐067 Strawczyn, Ruda Strawczyńska 103A DEKLARUJE / DECLARES z pełną odpowiedzialnością, że produkt / with all responsibility, that the product Wkład kominkowy powietrzny / Fireplace DEFRO HOME RIVA (typ/type DEFRO HOME RIVA) zaprojektowany, wyprodukowany i wprowadzony na rynek zgodnie z następującymi dyrektywami: has been designed, manufactured and placed on the market in conformity with directives: został Rozporządzenie Parlamentu Europejskiego / Regulation of the European Parliament 305/2011 i niżej wymienionymi normami zharmonizowanymi: and that the following relevant Standards: PN‐EN 13229:2002 dokumentacja techniczna / technical documentation Wyrób oznaczono znakiem: Product has been marked: Ta deklaracja zgodności traci swą ważność, jeżeli we wkładzie kominkowym DEFRO HOME RIVA wprowadzono zmiany, została przebu‐ dowana bez naszej zgody lub jest użytkowana niezgodnie z instrukcją obsługi. Niniejsza deklaracja musi być przekazana wraz z wkładem kominkowym w przypadku odstąpienia własności innej osobie. This Declaration of Conformity becomes invalid if any changes have been made to the DEFRO HOME RIVA Fireplace, if its construction has been changed without our permission or if the air heater is used not in accordance with the operating manual. This Declaration shall be handed over to a new owner along with the title of ownership of the air heater. Wkład kominkowy DEFRO HOME RIVA jest wykonywany zgodnie z dokumentacją techniczną przechowywaną przez: DEFRO HOME RIVA Fireplace has been manufactured according to technical documentation kept by: ...
- Page 3 Dear Customer, Dear Customer, We would like to thank you for choosing the high quality DEFRO prod- We would like to inform you that we make every efforts to offer uct which will ensure your safety and operational reliability. products of quality fulfilling the most restrictive standards and warrant- ing operational safety.
-
Page 4: Table Of Contents
Table of Contents INFORMATION ......................................5 BASIC SAFETY RULES ..................................... 5 2.1. Safety warnings ....................................5 2.2. Warnings related to operation ................................6 INTENDED USE ......................................6 TECHNICAL SPECIFICATION ................................... 6 ... -
Page 5: Information
2. BASIC SAFETY RULES 1. INFORMATION 2.1. SAFETY WARNINGS Operating manual is an integral and essential part of the product The national and local provisions should be met. and must be forwarded to the user also in the case when the property ... -
Page 6: Warnings Related To Operation
Do not expose the body to the action of hot air for a Body (1, picture 1) of the DEFRO HOME RIVA fireplace insert is a long period of time. Do not heat excessively the room steel jacket, with a combustion chamber located inside (2). Floor cre- where you are staying and where the equipment is in- ating a chamber for air intake is a basis for the insert. - Page 7 Rysunek 2. Budowa wkładu kominkowego DEFRO HOME RIVA w wer- sji G z drzwiami podnoszonymi. Picture 3. Projections with dimensions of DEFRO HOME RIVA SM fire- 1 – body, 2 – slider for adjustment of air inflow, 3 – handle with lock, 4 place insert.
- Page 8 1080 1000 Φ Picture 7. Projections with dimensions of DEFRO HOME RIVA ME BP Picture 5. Projections with dimensions of DEFRO HOME RIVA ME fire- fireplace insert.. place insert. Φ Picture 6. Projections with dimensions of DEFRO HOME RIVA SM BP fireplace insert.
- Page 9 175 80 Picture 9. Projections with dimensions of DEFRO HOME RIVA ME G Picture 11. Projections with dimensions of DEFRO HOME RIVA SM BP fireplace insert. G fireplace insert. 1301 1112 Picture 10. Projections with dimensions of DEFRO HOME RIVA LA G 1120 fireplace insert.
-
Page 10: Equipment
A fireplace insert is intended for combustion of wood from decidu- ous trees (oak, hornbeam, ash, beech) with a moisture content below Fireplace insert DEFRO HOME RIVA should be installed 20% (wood seasoned in proper conditions for at least 2 years). The... -
Page 11: Working Environment
5.2. WORKING ENVIRONMENT WARNING !!! Lack of expansion joint may be a reason of equipment damage Fireplace insert should be installed in a suitable location allowing what is connected with loss of the warranty rights. opening of the doors and carrying out regular maintenance works. The environment should be: In the case of the floor made of inflammable materials it ... -
Page 12: Hot Air Distribution System
5.3. HOT AIR DISTRIBUTION SYSTEM 5.3.1. GRAVITY SYSTEM FOR HOT AIR DISTRIBUTION DEFRO HOME RIVA fireplace insert gives back approx. half of the power to the environment when the air is being heated. In case of heat- ing of small areas, e.g. room where the fireplace insert is installed, and... -
Page 13: Installation In Central Heating System
Picture 17. Diagram of the exemplary connection of the water system radius not smaller than 20 mm, of the DEFRO HOME RIVA fireplace with the heating system in the internal cross-section should be constant, free and independ- open system. -
Page 14: Usage And Operation
thermal protection against drop of return water temperature below the Before connecting the fireplace with the water system dew point is implemented by a mixing three-way thermostatic valve (4), to the old central heating system user should carry out which based on the measured value of installed temperature sensor flushing to remove sludge remaining in the radiators opens correspondingly valve with hot water mixing it with cold water and pipes. -
Page 15: Damping
Never stand in front of the fireplace insert door while opening. Burn risk. 6.4. DAMPING Damping is executed by the closing inflow of primary air. In such case you should wait until the fuel completely burns out in a natural way. -
Page 16: Cleaning Before Each Starting
The flue should be cleaned by a chimneysweep com- In the G version of the DEFRO HOME RIVA fireplace insert, the pany and this fact should be documented in this manual. -
Page 17: Doors Disassembly
Periodic inspection of the equipment should be carried out only by a qualified manufacturer’s service. 7.5. DOORS DISASSEMBLY Lower the doors to ensure that the upper pin of the hinge leaves the upper opening of the frame and remove the doors Slide protecting ring downwards maximally. -
Page 18: Disassembly Of Ceramic Tiles
Lower the beam down holding the deflector. Slide deflector slightly to the front. One side of the deflector should be in free space between the shifted beam, rear and side wall of the fireplace and lower free end of the deflector. Remove deflector in such position Disassembly of steel deflector (part 23 on figure 1), located on flue gas outlet is based on the removal of fixing screw - as presented on the... -
Page 19: Shutting The Stove Down
Picture 25. Disassembly of covers of the inspection holes in side walls of the DEFRO HOME PRIMA insert in G version. Inspection holes are located in both side walls of the fireplace in- sert DEFRO HOME RIVA G. They are intended only for use by the... -
Page 20: Measures In Case Of Fire In The Flue /Soot Ignition
11. REMARKS ON FIREPLACE INSERT USAGE The too high temperature in the water system or too high differ- ence of temperatures between water system and water in the cen- tral heating system: The following rules of safe operation of the fireplace in- serts should be strictly observed and introduced. - Page 21 provided in the service manual. A guarantor is not responsible for 17) The Guarantor does not accept liability for the inappropriate the effect of normal wear and tear of the product which is con- choice of product with respect to the heated area (e.g. device of nected with the operation.
-
Page 22: Warranty Conditions "48H Service
exercises his powers resulting from the warranty, the period for execution of powers resulting from the warranty will be sus- pended from the date of notice about the defect. This period will be continued from the date of refusal by the Guarantor about the execution of obligations resulting from the warranty or ineffective lapse of time for their execution. -
Page 23: Warranty Card
WARRANTY CARD Confirmation of equipment's quality and completeness In accordance with the conditions stated herein, warranty for a fireplace insert type DEFRO HOME RIVA ...... operated in accordance with the operating manual has been issued. Equipment manufacturing number* ......................Equipment power ...................... -
Page 24: Carried Out Warranty Repairs And Maintenance
14. CARRIED OUT WARRANTY REPAIRS AND MAINTENANCE. fault description, repaired element, Stamp and signature date comments description of repairs of Service... -
Page 25: Warranty Card /Copy To Send Back
WARRANTY CARD Confirmation of equipment's quality and completeness In accordance with the conditions stated herein, warranty for a fireplace insert type DEFRO HOME RIVA ...... operated in accordance with the operating manual has been issued. Equipment manufacturing number* ......................Equipment power ...................... -
Page 27: Complaint Form
16. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no......SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: ................................Detailed address: ................................................................ -
Page 29: Complaint Form
17. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no....SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: ................................Detailed address: ................................................................ -
Page 31: Complaint Form
18. COMPLAINT FORM COMPLAINT FORM made on ............in connection with complaint no......SUBJECT OF COMPLAINT EQUIPMENT TYPE: ........... Equipment manufacturing date: ..........Equipment serial no.: ........... Equipment purchase date: ..........CLAIMANT Name and surname: ................................Detailed address: ................................................................ -
Page 33: Register Of Inspections Of Smoke Ducts
19. REGISTER OF INSPECTIONS OF SMOKE DUCTS date stamp and signature of a chimneysweep date stamp and signature of a chimneysweep... - Page 34 1. The identification code of product-type KOM-DHRIVA-SM-SHORT, KOM-DHRIVA-SM-BL-SHORT, KOM-DHRIVA-SM-BP-SHORT 2. Building product (name, type, series) Product name: DEFRO HOME RIVA SM fireplace Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4.
- Page 35 1. The identification code of product-type KOM-DHRIVA-ME-SHORT, KOM-DHRIVA-ME-BL-SHORT, KOM-DHRIVA-ME-BP-SHORT 2. Building product (name, type, series) Product name: Fireplace insert DEFRO HOME RIVA ME Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4.
- Page 36 No. DHRIVA-LA-01/2018 1. The identification code of product-type KOM-DHRIVA-LA 2. Building product (name, type, series) Product name: DEFRO HOME RIVA LA fireplace Serial number: See rating plate 3. Application of building product Room heater fired with solid fuel in the buildings 4.
- Page 37 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa plier 00-403 Warszawa Ul. Solec 24/253 Manufacturing plant: 26-067 Ruda Strawczyńska 103A MODEL IDENTIFICATION PARAMETERS DEFRO HOME DEFRO HOME UNIT OF THE EQUIPMENT DEFRO HOME RIVA SM SHORT RIVA ME SHORT RIVA LA SHORT DEFRO HOME...
- Page 40 DEFRO Spółka z ograniczoną odpowiedzialnością Spółka komandytowa 00-403 Warszawa, ul. Solec 24/253 Manufacturing plant: Ruda Strawczyńska 103 A 26-067 Strawczyn tel.: 41 303 80 85, biuro@defro.pl NIP 9591968493...
