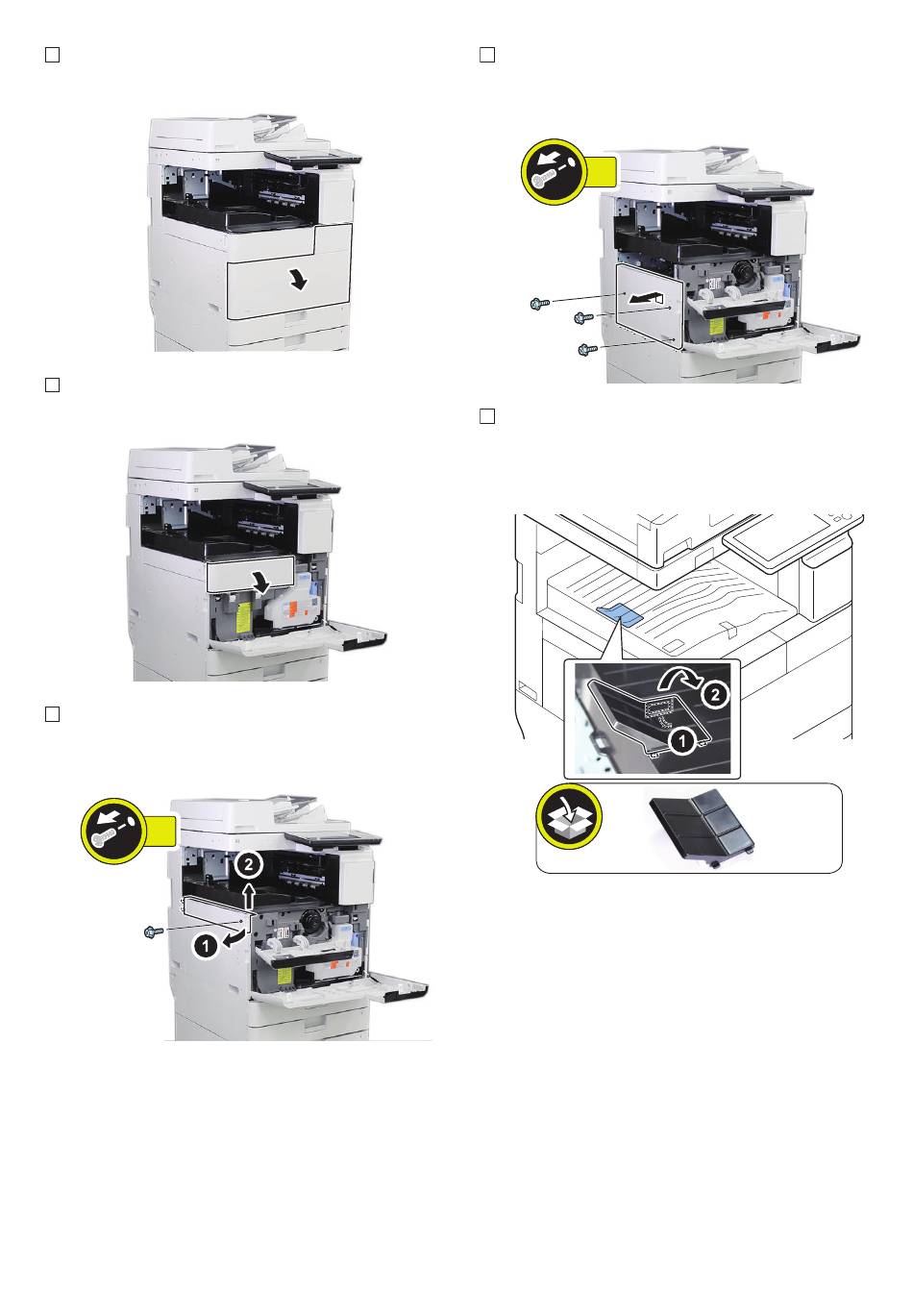

9. Open the Front Cover.
10. Open the Front Upper Cover.
11. Remove the Left Upper Cover Unit.
• 1 Screw
1x
12. Remove the Left Cover.
• 3 Screws
3x
13. Remove the Subtray.
• 1 Hook
• 2 Claws
36
