Canon Buffer Pass Unit-N1 Service Manual page 40
Table of Contents

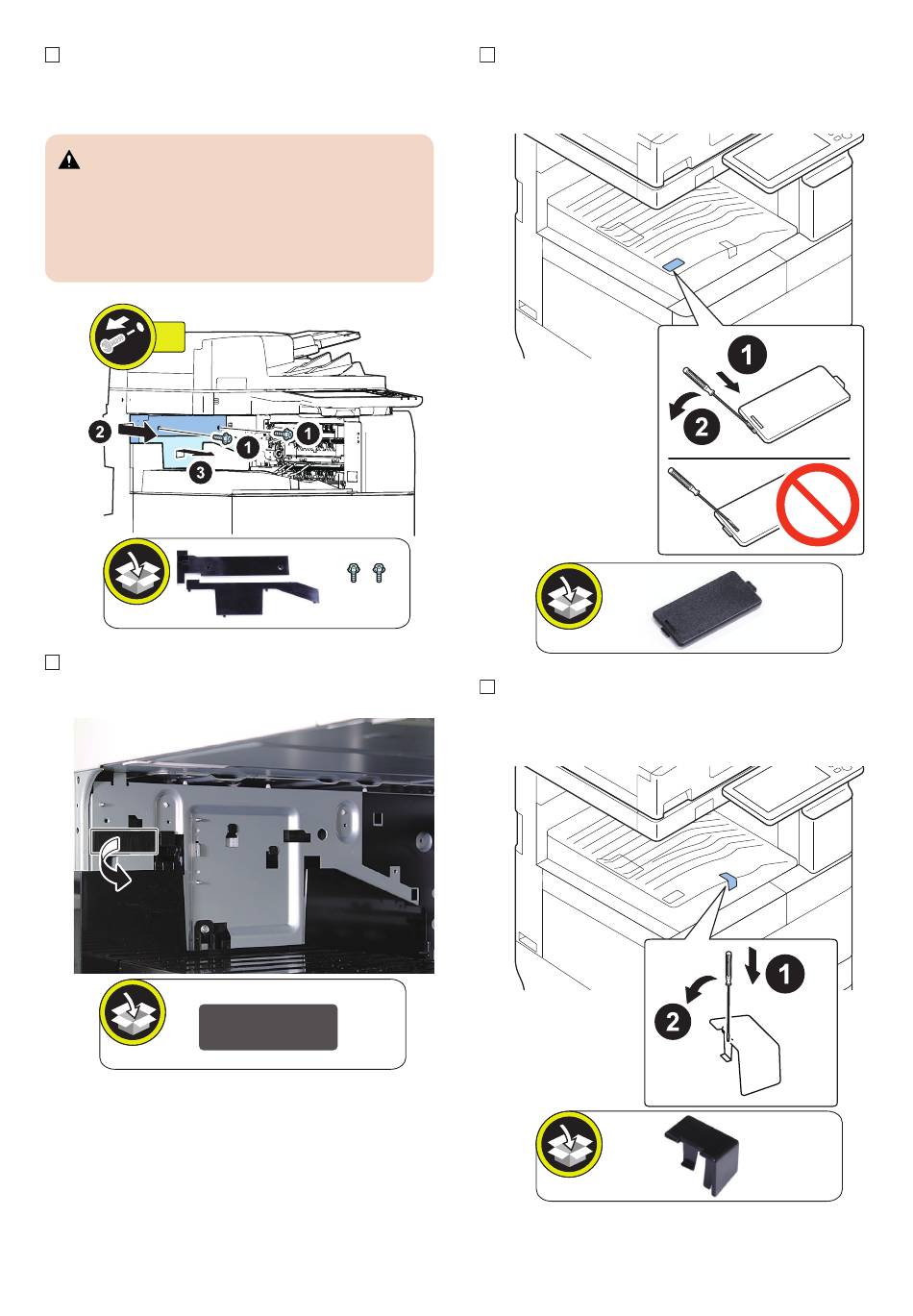

5. Remove the Inner Cover (Upper/Lower).
• 2 Screws
CAUTION:
Be careful not to forget to remove the Inner Cover
(Upper/Lower), if it is forgotten to remove the cover, the
Buffer Pass is not grounded, so that the controller of
the Host Machine may be damaged by an electro static
noise.
2x
6. Remove the Inner Face Seal.
7. Remove the Face Cover.
RS Tightening
(M3x8)
8. Remove the Face Cover.
35
• 1 Claw
• 1 Claw
6. Installation
