Installation Procedure
Installation Procedure
CAUTION:
Make sure that the Host Machine is turned off and
the power plug is disconnected from the outlet.

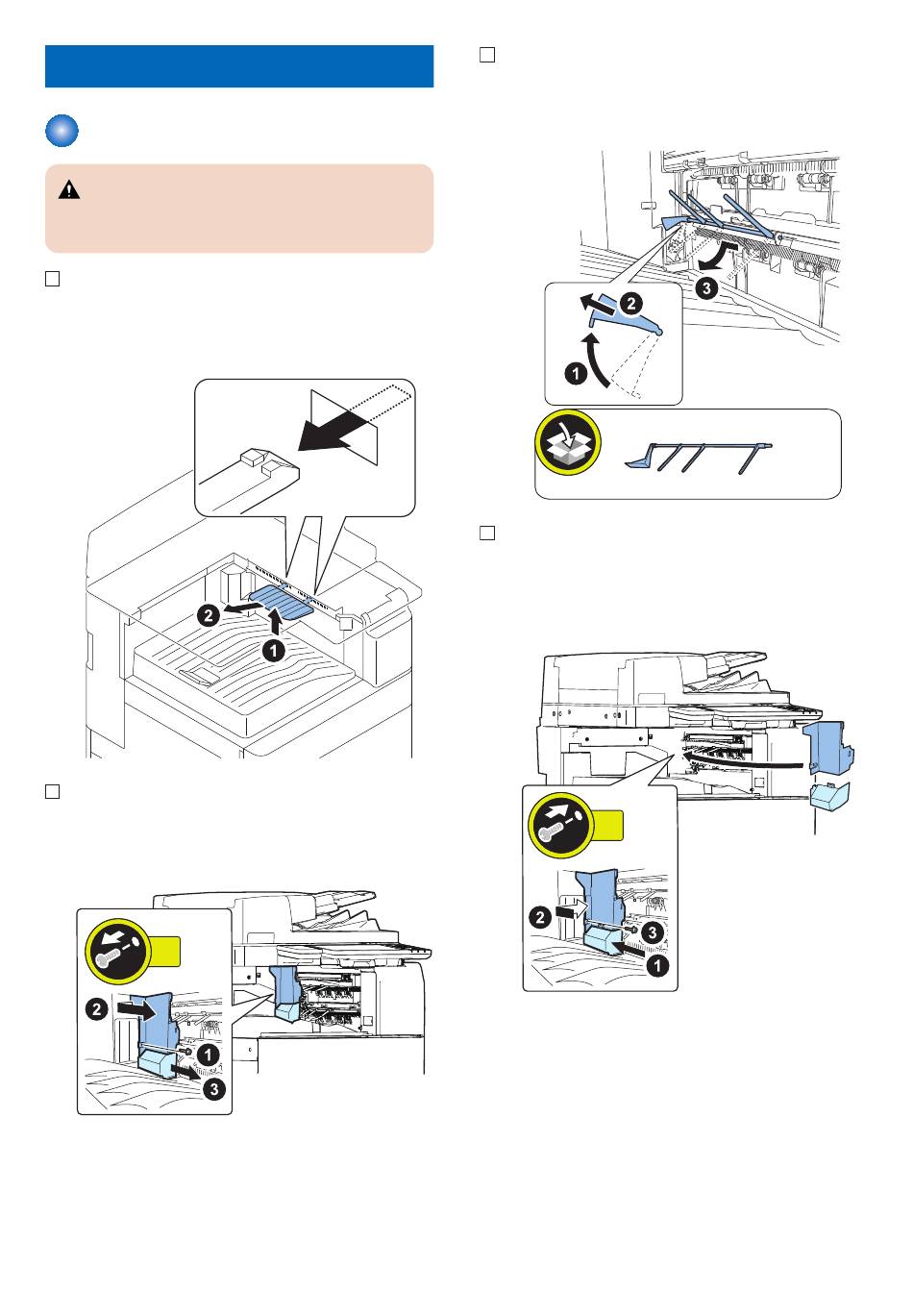

1. When the Reversal Guide has been installed to the
host machine, remove it.
• 2 Claws
2. Remove the Delivery Rear Cover (Upper/Lower).
• 1 Screw
• 1 Hook
1x
3. Remove the Sensor Flag of the Delivery Tray Full
Detection Sensor 1 (the lower sensor flag in the
figure).
4. Install the Delivery Rear Cover (Upper/Lower).
• 2 Bosses
• 1 Hook
• 1 Screw
1x
34
6. Installation
