AUTOMOTIVE PRODUCTS,
ITEM
QUANTITY
1
1
2
1
3
1
4
2
5
4
6
2
7
4
8
8
9
4
10
8
11
8
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
INSTALLATION INSTRUCTIONS
APPLICATION:
2003-2014 Ford Expedition / 2007-2014 Ford Expedition EL
2003-2014 Lincoln Navigator L 2/4WD
2009-2014 Ford F-150
2015 + Ford F-150
PART NUMBER:
32-2400, 32-2405, 32-2450, 32-2455

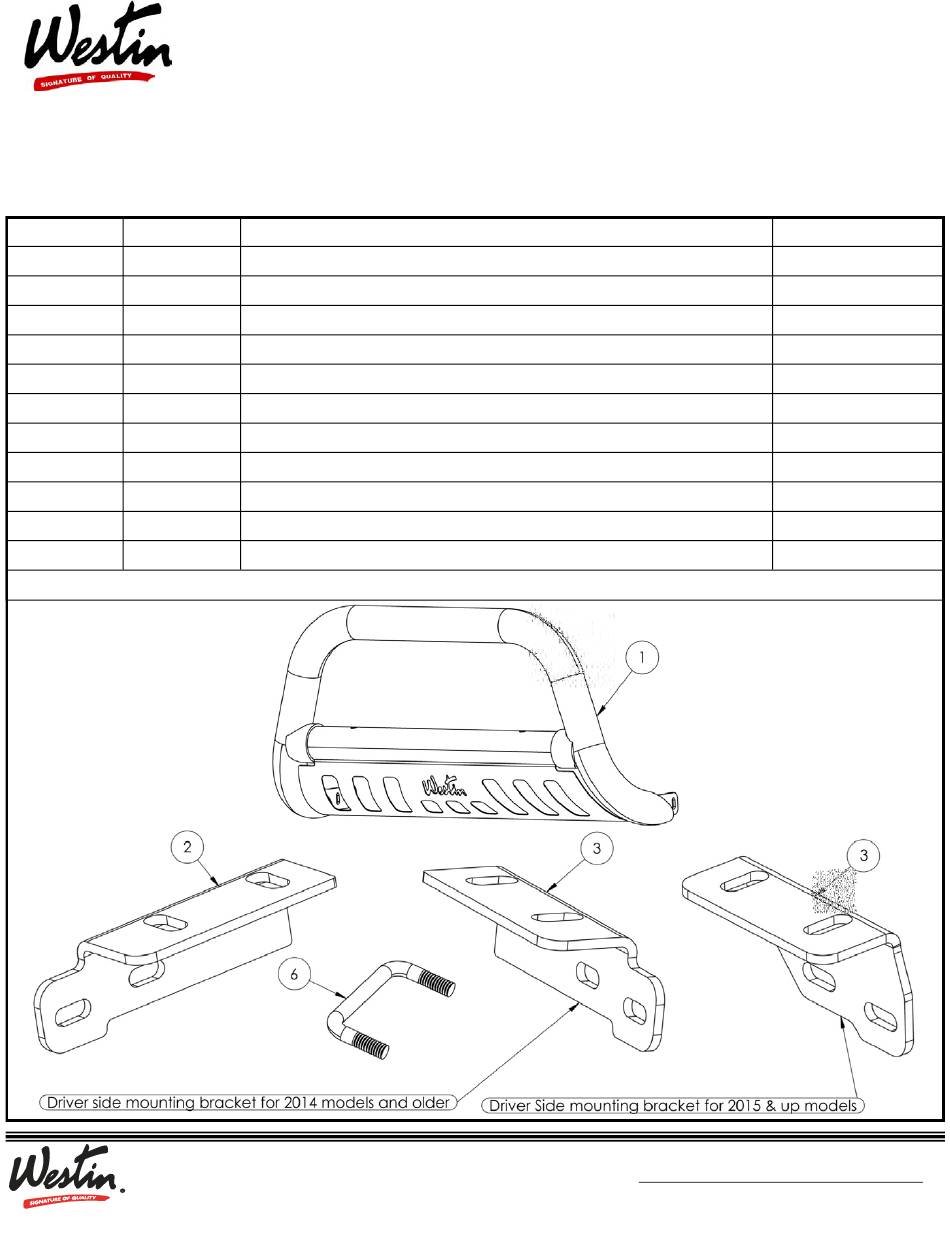

PASSENGER SIDE MOUNTING BRACKET
DRIVER SIDE MOUNTING BRACKET
3/8-16 X 1.25" HEX HEAD BOLT (STAINLESS STEEL)
3/8" SAE FLAT WASHER (STAINLESS STEEL)
3/8" USS FLAT WASHER (STAINLESS STEEL)
3/8" LOCK WASHER (STAINLESS STEEL)
3/8-16 HEX NUT (STAINLESS STEEL)

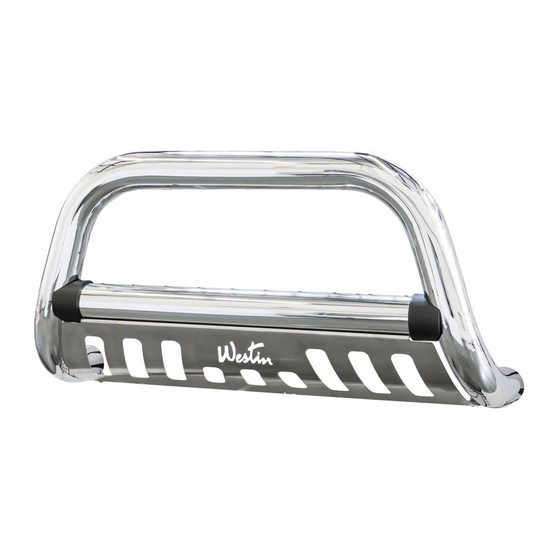

ULTIMATE BULL BAR
DESCRIPTION
BULL BAR ASSEMBLY
PLASTIC PLUG
RUBBER BUMPER
U-BOLT
1
TOOLS NEEDED
18MM SOCKET
SOCKET EXT.
15MM SOCKET
9/16" SOCKET
9/16" WRENCH
TORQUE WRENCH
Thank you for choosing Westin products.
RATCHET
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Westin 32-2400
Summary of Contents for Westin 32-2400
-
Page 1: Installation Instructions
3/8” SAE FLAT WASHER (STAINLESS STEEL) 3/8” USS FLAT WASHER (STAINLESS STEEL) 3/8” LOCK WASHER (STAINLESS STEEL) 3/8-16 HEX NUT (STAINLESS STEEL) ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING Thank you for choosing Westin products. - Page 2 Thread nut and washers. SEE FIGURE 6. Figure 1 Figure 2 Close up on trim area. Trim designated areas. Driver Side Shown Thank you for choosing Westin products.
- Page 3 Figure 3 FOR VEHICLES WITH TOW HOOKS Figure 4 Figure 5 FOR VEHICLES WITH OUT TOW Driver Side Shown HOOKS Thank you for choosing Westin products.
-
Page 4: Installation Complete
STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES. GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Thank you for choosing Westin products. - Page 5 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
