AUTOMOTIVE PRODUCTS, INC.

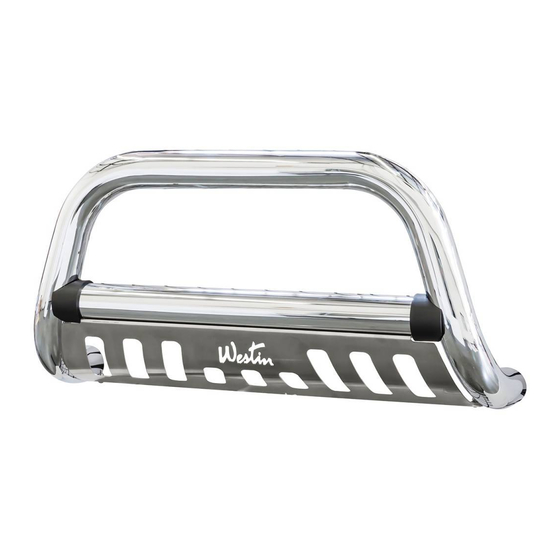

BULL BAR ASSEMBLY
ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
32-0240
32-0245

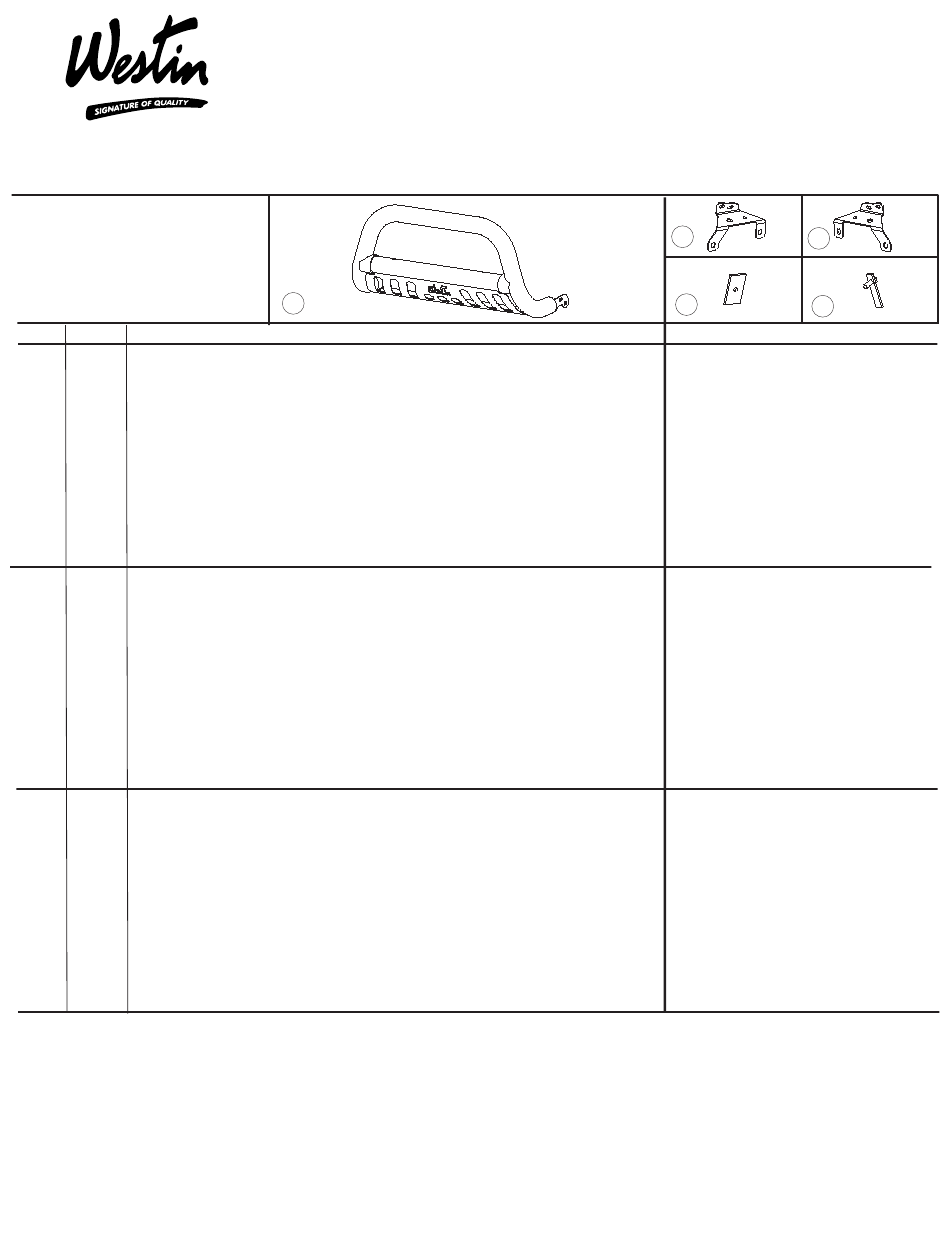

ITEM
QTY
1
1
BULL BAR ASSEMBLY
2,3
2
BRACKET, PASSENGER (2) AND DRIVER (3)
4
2
MOUNT PLATE
5
2
BOLT PLATE
6
2
PLASTIC PLUG
7
4
RUBBER BUMPER
8
4
1/2-13 X 1.25" HEX HEAD BOLT, STAINLESS STEEL
9
8
1/2" FLAT WASHER
10
4
1/2" LOCK WASHER
11
4
1/2-13 HEX NUT
12
2
1/2-13 X 5.00" HEX HEAD BOLT, YELLOW ZINC
13
6
1/2" FLAT WASHER, YELLOW ZINC
14
4
1/2" LOCK WASHER, YELLOW ZINC
15
4
1/2-13 HEX NUT, YELLOW ZINC
1
1
ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3
2
SOPORTE, ACOMPAÑANTE
4
2
PLACA DE MONTAJE
5
2
PLACAS DE PERNOS
6
2
TAPONES DE PLÁSTICO
7
4
PARACHOQUES DE HULE
8
4
PERNOS CON CABEZA HEXAGONAL DE 1/2-13 x 1,25"
9
8
ARANDELAS PLANAS DE 1/2"
10
4
ARANDELAS DE PRESIÓN DE 1/2"
11
4
TUERCAS HEXAGONALES DE 1/2-13
12
2
PERNOS CON CABEZA HEXAGONAL DE 1/2-13 x 5,00",ZINC AMARILLO
13
6
ARANDELAS PLANAS DE 1/2",ZINC AMARILLO
14
4
ARANDELAS DE PRESIÓN DE 1/2",ZINC AMARILLO
15
4
TUERCAS HEXAGONALES DE 1/2-13,ZINC AMARILLO
1
1
LA BULL BAR
2,3
2
SUPPORTS, PASSAGER (2) ET CONDUCTEUR (3)
4
2
PLAQUE DE FIXATION
5
2
PLAQUES DE BOULON
6
2
BOUCHONS DE PLASTIQUE
7
4
PARE-CHOCS CAOUTCHOUC
8
4
BOULONS A TETE HEXAGONALE 1/2-13 X 1,25 PO
9
8
RONDELLES PLATES 1/2 PO
10
4
RONDELLES A FREIN 1/2 PO
11
4
ÉCROUS HEXAGONAUX 1/2-13
12
2
BOULONS A TETE HEXAGONALE 1/2-13 X 5,00 PO, ZINC JAUNE
13
6
RONDELLES PLATES 1/2 PO, ZINC JAUNE
14
4
RONDELLES A FREIN 1/2 PO, ZINC JAUNE
15
4
ÉCROUS HEXAGONAUX 1/2-13, ZINC JAUNE
STEP 1.
Remove the contents from box and check for damage. Verify all parts are present. Read instructions completely
before beginning.
NOTE:
It may be necessary to remove/relocate front license plate and license plate bracket. It is not required, but
strongly recommended. If local/state laws requires a license plate, license plate relocation kit 32-0055 is available.
STEP 2.
NOTE:
Cutting the air dam is necessary if vehicles are not equipped with either tow hooks or fog lights. See NO TOW
HOOK instructions.
STEP 3.
Remove tow hooks by removing front bolt and loosening rear bolt sufficiently. DO NOT remove rear bolt completely.
Tow hooks will not be reinstalled.
STEP 4.
Determine passenger and driver brackets. Attach brackets using mount plates, bolt plates, and 1/2" yellow zinc
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION:
1999-04 FORD F-150/250LD/SUPERCREW 2WD AND 1997-04 4WD
1999-02 FORD EXPEDITION 2WD AND 1998-02 4WD
(04' MODEL TRUCKS ARE HERITAGE EDITION ONLY)
APLICACIÓN:
FORD F-150/250 LD/SUPERCREW 2WD, MOD. 1999-2003, Y 4WD,MOD. 97-04
FORD EXPEDITION 2WD, MOD. 1999-2002, Y 4WD, MOD. 1998-2002
LAS CAMIONETAS MODELO 2004 SON HERITAGE EDITION ÚNICAMENTE
APPLICATION:
FORD F-150/250 LD/SUPERCREW 4X2 1999-04 ET 4X4 1997-04
FORD EXPEDITION 4X2 1999-02 ET 4X4 1998-02
LES MODÉLES DE CAMIONETTE 2004 SONT UNIQUEMENT HERITAGE EDITION
1
CONTENTS -
CONTENIDO
, STAINLESS STEEL
, STAINLESS STEEL
, STAINLESS STEEL
(2)
Y EL CONDUCTOR
,ACERO INOXIDABLE
,ACERO INOXIDABLE
,ACERO INOXIDABLE
, ACIER INOXYDABLE
, ACIER INOXYDABLE
, ACIER INOXYDABLE
NOTE:
Westin advises the installer to use a thread lubricant on all of the stainless steel fasteners.
- CONTENU
(3)
,ACERO INOXIDABLE
, ACIER INOXYDABLE
2
4
TOOLS -
HERRAMIENTA
3/4" SOCKET
3/4" WRENCH
8MM SOCKET
8MM WRENCH
15MM SOCKET
6" EXTENSION
DRILL
RATCHET
TORQUE WRENCH
UTILITY KNIFE
DADO DE 3/4"
LLAVE DE TUERCAS DE 3/4"
DADO DE 8 MM
LLAVE DE TUERCAS DE 8 MM
DADO DE 15 MM
EXTENSIÓN DE 6"
TALADRO
MANERAL
LLAVE DE TORQUE
NAVAJA
DOUILLE 3/4 PO
CLE 3/4 PO
DOUILLE 8MM
CLE 8 MM
DOUILLE 15MM
RALLONGE 6 PO
PERCEUSE
CLIQUET
CLE DE COUPLE
COUTEAU
WO:
75-0373 REVISION B 3/18/08
3
5
- OUTILS
