INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
ITEM
QUANTITY
1
1`
2
2
3
2
4
2
5
2
6
2
7
4
ARTÍCUL
CANTIDAD
O
1
1`
2
2
3
2
4
2
5
2
6
2
7
4
ARTICLE QUANTITE
1
1`
2
2
3
2
4
2
5
2
6
2
7
4
APPLICATION: 2007-2010 CHEVY SILVERADO 1500/GMC SIERRA 1500
PART # 31023, 31024, 32023, 32024

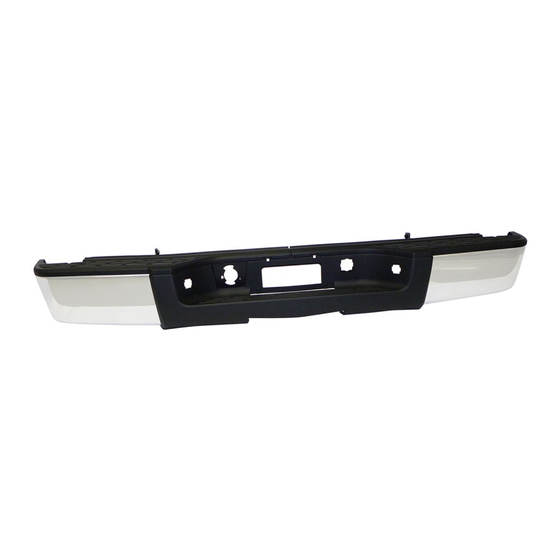

BUMPER
M10 X 1.5 HEX HEAD BOLTS
M10 FLAT WASHERS
M14 X 2.0 HEX HEAD BOLTS
M14 FLAT WASHERS
M12 BOLT PLATES
M12 FLANGE NUTS
DEFENSA
PERNOS DE CABEZA DE AOJO M10 X 1.5
RONDANAS PLANAS M10
PERNOS DE CABEZA DE AOJO M14 X 2.0
RONDANAS PLANAS M14
PLANCHAS DE PERNO M12
TUERCAS DE REBORDE M12
PARE-CHOCS
M10 X 1.5 BOULONS A TETE HEXAGONALE
M10 RONDELLES PLATES
M14 X 2.0 BOULONS A TETE HEXAGONALE
M14 RONDELLES PLATES
M12 PLAQUE A BOULON
M12 ECROUS A EMBASE
1
PERFECT MATCH BUMPER
DESCRIPTION
DISCRIPCIÓN
DESCRIPTION
TOOLS NEEDED
16MM SOCKET
18MM SOCKET AND WRENCH
21MM SOCKET
TORQUE WRENCH
HERRAMIENTA NECESARIA
DADO DE 16MM
DADO DE 18MM Y MATRACA
DADO DE 21MM
LLAVE DE TORSIÓN
OUTILS NECESSAIRES
16MM DOUILLE
18MM DOUILLE ET CLE
21MM DOUILLE
CLE DYNAMOMETRIQUE
75-1060 REV B 11/14/10
RATCHET
MATRACA
CLIQUET
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Westin FEY PERFECT MATCH BUMPER
Summary of Contents for Westin FEY PERFECT MATCH BUMPER
- Page 1 INSTRUCTIONS—INSTRUCCIONES—CONSIGNES APPLICATION: 2007-2010 CHEVY SILVERADO 1500/GMC SIERRA 1500 PART # 31023, 31024, 32023, 32024 PERFECT MATCH BUMPER ITEM QUANTITY DESCRIPTION TOOLS NEEDED BUMPER 16MM SOCKET M10 X 1.5 HEX HEAD BOLTS 18MM SOCKET AND WRENCH M10 FLAT WASHERS 21MM SOCKET M14 X 2.0 HEX HEAD BOLTS RATCHET M14 FLAT WASHERS...
- Page 2 Remove contents from box, make sure all parts listed are present and free from damage. Carefully read and understand all instructions before attempting installation. Disconnect all electrical connections running to the bumper. Remove all factory hardware attaching bumper to frame, and remove the bumper Carefully remove all backup sensors , license plate lights, trailer electrical connector, spare tire release guide and wire looms from the bumper.
