Westin 32-2400 Instructions

AUTOMOTIVE PRODUCTS, INC.

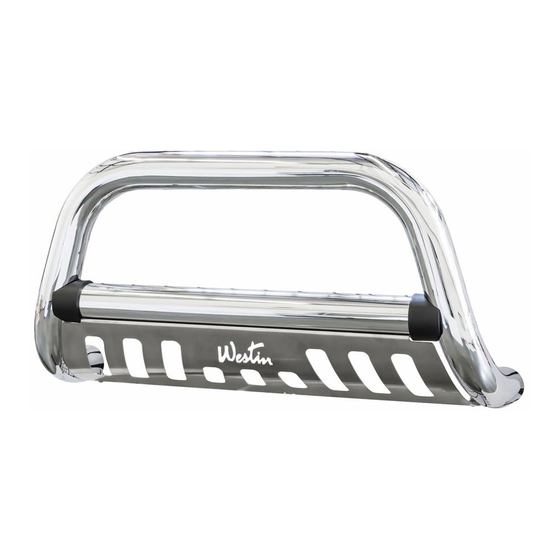

BULL BAR ASSEMBLY

ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
32-2400
32-2405
ITEM
QTY
1 1 BULL BAR ASSEMBLY
2,3 2 BRACKET, PASSENGER (2) AND DRIVER (3)
4 2 PLASTIC PLUG
5 4 RUBBER BUMPER
6 2 U-BOLT
7 4 3/8-16 X 1.25" HEX HEAD BOLT
8 8 3/8" SAE FLAT WASHER
9 4 3/8" USS FLAT WASHER
10 8 3/8" LOCK WASHER
11 8 3/8-16 HEX NUT
1 1 ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3 2 SOPORTES
4 2 TAPONES DE PLÁSTICO
5 4 PARACHOQUES DE HULE
6 2 PERNOS EN "U"
7 4 PERNOS CON CABEZA HEXAGONAL DE 3/8-16 X 1,25"
8 8 ARANDELA PLANA SAE DE 3/8"
9 4 ARANDELA PLANA USS DE 3/8"
10 8 ARANDELAS DE PRESIÓN DE 3/8"
11 8 TUERCAS HEXAGONALES DE 3/8-16
1 1 LA BULL BAR
2,3 2 SUPPORT CÔTÉ PASSAGER (2) ET CÔTÉ CONDUCTEUR (3)
4 2 BOUCHON DE PLASTIQUE
5 4 PARE-CHOCS EN CAOUTCHOUC
6 2 BOULON EN U
7 4 BOULON A TETE HEXAGONALE 3/8-16 X 1,25 PO
8 8 RONDELLE PLATE SAE 3/8 PO
9 4 RONDELLE PLATE USS 2/8 PO
10 4 RONDELLE A FREIN 3/8 PO
11 8 ÉCROU HEXAGONAL 3/8-16
Remove the contents from box and check for damage. Verify all parts are present. Read instructions completely before

STEP 1.

NOTE:
beginning.
NOTE:

STEP 2.

It will be necessary to remove the front license plate and bracket. Remove license plate from bracket. Using a
3/16" drill bit, drill out the two pop rivets that hold the bracket to the bumper. If local/state laws requires a license plate,
license plate relocation kit 32-0055 is available.

VEHICLES WITH TOW HOOKS

STEP 3.

Remove tow hooks by removing front and rear bolts.
frame stays aligned with holes.
Position bottom bracket up to bottom of frame and replace tow hook bolts.

STEP 4.

VEHICLES WITHOUT TOW HOOKS

STEP 5.

Insert u-bolt in frame as shown.
SEE FIGURE 4.

STEP 6.

Attach Bull Bar to mount brackets using 3/8" fasteners. Make sure Bull Bar and brackets are properly aligned and tighten
all fasteners. Recommended torque values are 17 Ft.Lbs. for 3/8" fasteners.

LIGHT INSTALLATION:

INSTRUCTIONS-INSTRUCCIONES-CONSIGNES

APPLICATION:

APLICACIÓN:
APPLICATION:

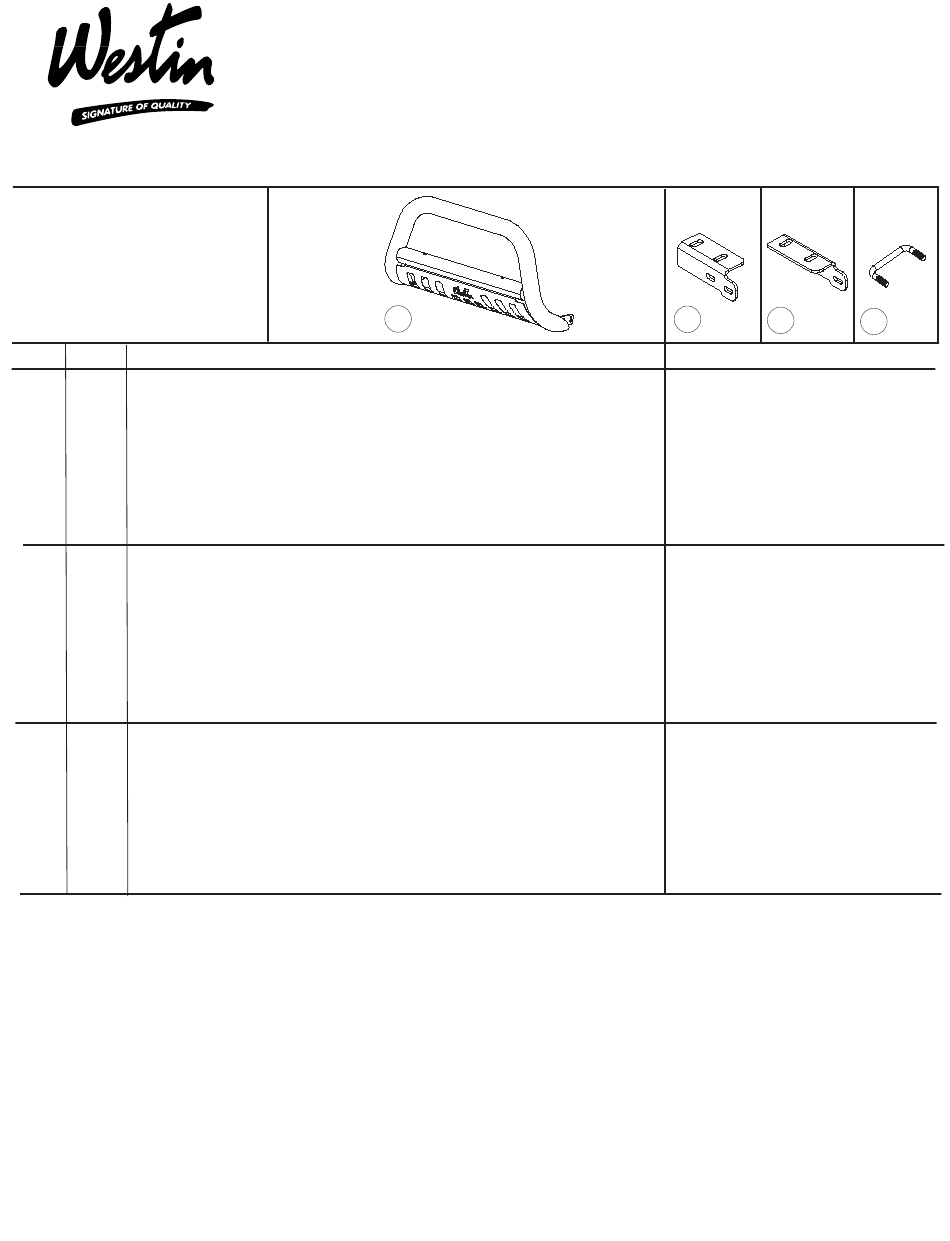

CONTENTS - CONTENIDO
, LADO DEL ACOMPAÑANTE
Westin advises the installer to use a thread lubricant on all of the stainless steel fasteners.
SEE FIGURES 3 AND 4.
Hand Tighten.
Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension and
2003-08 FORD EXPEDITION/LINCOLN NAVIGATOR 2/4WD
2007-08 FORD EXPEDITION EL/LINCOLN NAVIGATOR L
2009 FORD F-150
FORD EXPEDITION/LINCOLN NAVIGATOR TRACCIÓN 2/4, MOD. 2003-08
FORD EXPEDITION EL/LINCOLN NAVIGATOR L, MOD. 2007-08
FORD F-150, MOD. 2009
2003-08 FORD EXPEDITION/LINCOLN NAVIGATOR 2 OU 4 ROUES MOTRICES
2007-08 FORD EXPEDITION EL/LINCOLN NAVIGATOR L
2009 FORD F-150
1
- CONTENU
(2) Y EL CONDUCTOR (3)
NOTE:
Tow hooks will not be reinstalled. Make sure nut plate in
Attach bracket to u-bolts using 3/8" fasteners as shown.
WO:
2
3
TOOLS - HERRAMIENTA
9/16" SOCKET
9/16" WRENCH
15MM SOCKET
RATCHET
SOCKET EXTENSION
TORQUE WRENCH
DADO DE 9/16 "
LLAVE DE TUERCAS DE 9/16"
DADO DE 15 MM
MANERAL
EXTENSIÓN PARA DADO
LLAVE DE TORQUE
DADO DE 9/16 PO
CLE 9/16 PO
DADO DE 15MM
CLIQUET
RALLONGE DE DOUILLE
CLE DE COUPLE
SEE FIGURE 2.
Go to step 6.
75-0800 REVISION B 10/14/08
6
- OUTILS
