AUTOMOTIVE PRODUCTS, INC.

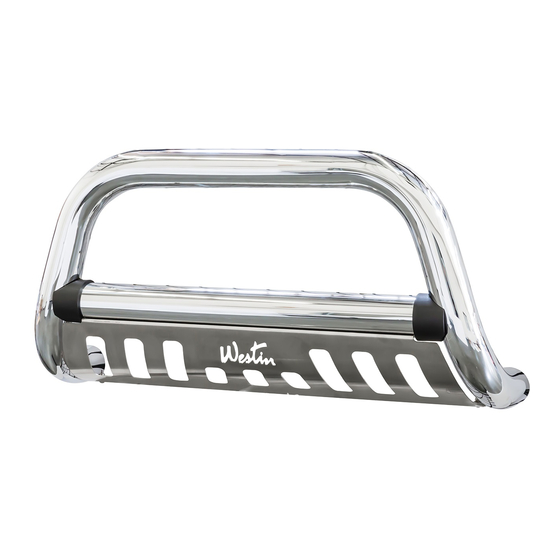

BULL BAR ASSEMBLY

ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
32-0220 32-0225
32-1640 32-1645
ITEM
QTY
1
1
BULL BAR ASSEMBLY
2,3
2
BRACKET, PASSENGER (2) AND DRIVER (3)
4
2
PLASTIC PLUG
5
4
RUBBER BUMPER
6
4
3/8-16 X 1.00" BUTTON HEAD, SOCKET HEAD CAP SCREW
7
4
3/8" FLAT WASHER
8
4
3/8" LOCK WASHER
9
4
3/8-16 HEX NUT
1
1
ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3
2
SOPORTE
4
2
TAPONES DE PLÁSTICO
5
4
PARACHOQUES DE HULE
6
4
TORNILLO DE CABEZA CILÍNDRICA SUPERIOR ESFÉRICA,
INTERIOR HEXAGONAL DE 3/8-16 x 1.00"
7
4
ARANDELAS PLANAS DE 3/8"
8
4
ARANDELAS DE PRESIÓN DE 3/8"
9
4
TUERCAS HEXAGONALES DE 3/8-16
1
1
ASSEMBLÉE DE BARRE DE BULL
2,3
2
SUPPORTS, PASSAGER (2) ET CONDUCTEUR (3)
4
2
BOUCHONS DE PLASTIQUE
5
4
PARE-CHOCS CAOUTCHOUC
6
4
VIS D'ASSEMBLAGE A SIX PANS CREUX 3/8-16 X 1,00 PO
7
4
RONDELLES PLATES 3/8 PO
8
4
RONDELLES A FREIN 3/8 PO
9
4
ÉCROUS HEXAGONAUX 3/8-16
Remove the contents from box and check for damage. Verify all parts are present. Read instructions

STEP 1.

completely before beginning.
steel fasteners.
It may be necessary to remove/relocate front license plate and license plate bracket. It is not required,
.

STEP 2

but strongly recommended. If local/state laws requires a license plate, license plate relocation kit 32-0055 is
available. License plate bracket must be removed on 2005 and newer vehicles.
Determine passenger and driver brackets.

STEP 3.

Locate and remove front bumper bolts that support the bumper to vehicle.

STEP 4.

hold the factory nut plate from the rear of the bumper to keep it in place. Attach brackets to bumper and
reinstall bolts. Leave loose.
Attach Bull Bar to bracket using 3/8" fasteners as shown. Leave loose.

STEP 5.

Make sure Bull Bar and brackets are properly aligned and tighten fasteners. Recommended torque values for

STEP 6.

12mm bumper bolts are 66 FT.LBS and 3/8" fasteners to 17 FT.LBS.

LIGHT INSTALLATION:

and socket for correct size of nut supplied, insert through large clearance hole in bottom of cross tube. Thread
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES

APPLICATION: 1999-07 FORD SUPERDUTY

APLICACIÓN: FORD SUPERDUTY, MOD. 1999-07
APPLICATION: FORD SUPERDUTY 1999-07
1
CONTENTS -
CONTENIDO
, ACOMPAÑANTE
(2)
NOTE:
Westin advises the installer to use a thread lubricant on all of the stainless
Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension
2000-05 FORD EXCURSION
FORD EXCURSION, MOD. 2000-05
FORD SUPERDUTY 2000-05
- CONTENU
Y EL CONDUCTOR
(3)
SEE FIGURE 2.
2
TOOLS -
HERRAMIENTA
9/16" WRENCH
7/32" HEX WRENCH
18MM SOCKET
RATCHET
TORQUE WRENCH
LLAVE DE TUERCAS DE 9/16"
LLAVE HEXAGONAL DE 7/32"
DADO DE 18 MM
MANERAL
LLAVE DE TORQUE
CLE 9/16 PO
CLE HEXAGONALE 7/32 PO
DOUILLE 18MM
CLIQUET
CLE DE COUPLE
NOTE:
It may be necessary to
SEE FIGURE 2.
75-0380 REVISION B 3/18/08
WO:
3
- OUTILS
