Interlogix TruPortal TP-ADD-2D-BRD Quick Reference page 9

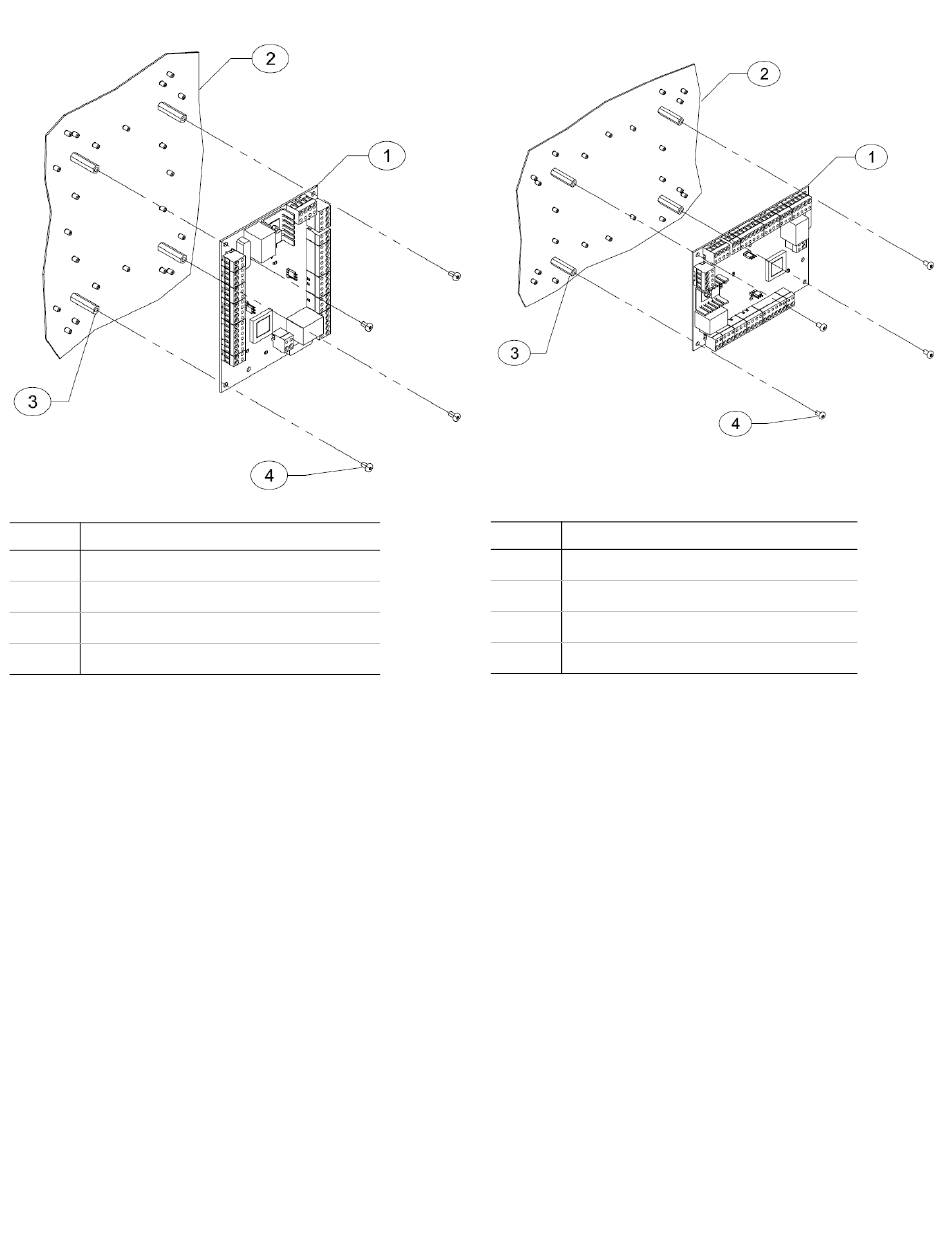

Figure 14: Mounting in AL400 Enclosure without Mounting Plate
Callout Description
1 TP-ADD-2D
2 TP-ADD (AL400) enclosure
3 #6-32 x 1.00 in. (25.4 mm) plastic standoff, 4 holes
4 #6-32 x .312 in. (7.925 mm), 4 holes
TruPortal Dual Door Interface Module Quick Reference
Figure 15: Mounting in AL600 Enclosure without Mounting Plate
Callout Description
1 TP-ADD-2D
2 TP-ADD (AL600) enclosure
3 #6-32 x 1.00 in. (25.4 mm) plastic standoff, 4 holes
4 #6-32 x .312 in. (7.925 mm), 4 holes
