Interlogix RF-KF101-K4 Installation Sheet

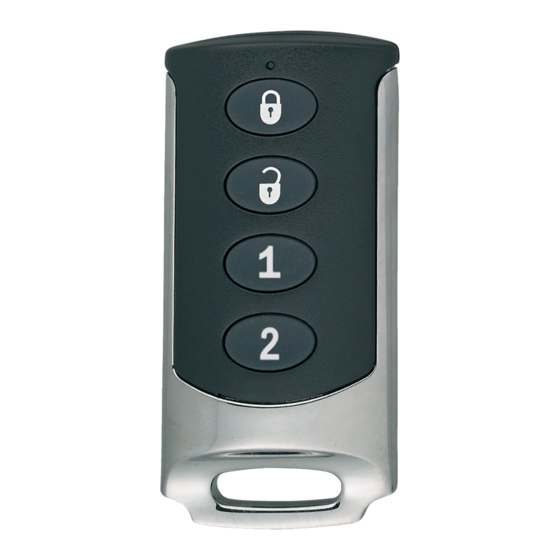

RF-KF101-K4 4-Button Chrome Wireless Keyfob
Installation Sheet
EN
1
3
EN: Installation Sheet
Enrolling
Each keyfob is learned in to a control panel as an
unsupervised sensor and uses one available zone slot. For
80+ receivers like ZeroWire, learn-in the device by pressing the
"lock" and "2" buttons simultaneously. Please refer to your
specific control panel installation manual for full instructions.
Operation
Arm - Lock
Press once for Arm-Away mode.
Disarm - Unlock
Press this button to disarm your system. You do not have to
enter your access code when you use this key to disarm the
system.
Press once for Arm-Stay mode, twice for Stay Instant mode,
three times for Stay Night mode.
© 2016 UTC Fire & Security Americas Corporation, Inc.
2
This button's function depends on the individual panel
programming. Refer to the installation instructions for your
panel.
Panic and Aux
If the keyfob is programmed using a panic group number,
pressing the buttons
audible or silent panic alarm (depending on a group number)
and initiate reports to the central station.
Similarly, if the keyfob is programmed using a portable
auxiliary group number, pressing the buttons
simultaneously will activate an audible or silent auxiliary alarm
(depending on a group number) and initiate reports to the
central station.
LED indications
Every event sent from the keyfob to the panel is signaled with
a single flash of the green LED.
1 / 2
4
and simultaneously will activate an
P/N 422-5828 • REV E • ISS 30DEC16
and
