Interlogix TruPortal TP-ADD-2D-BRD Quick Reference page 7

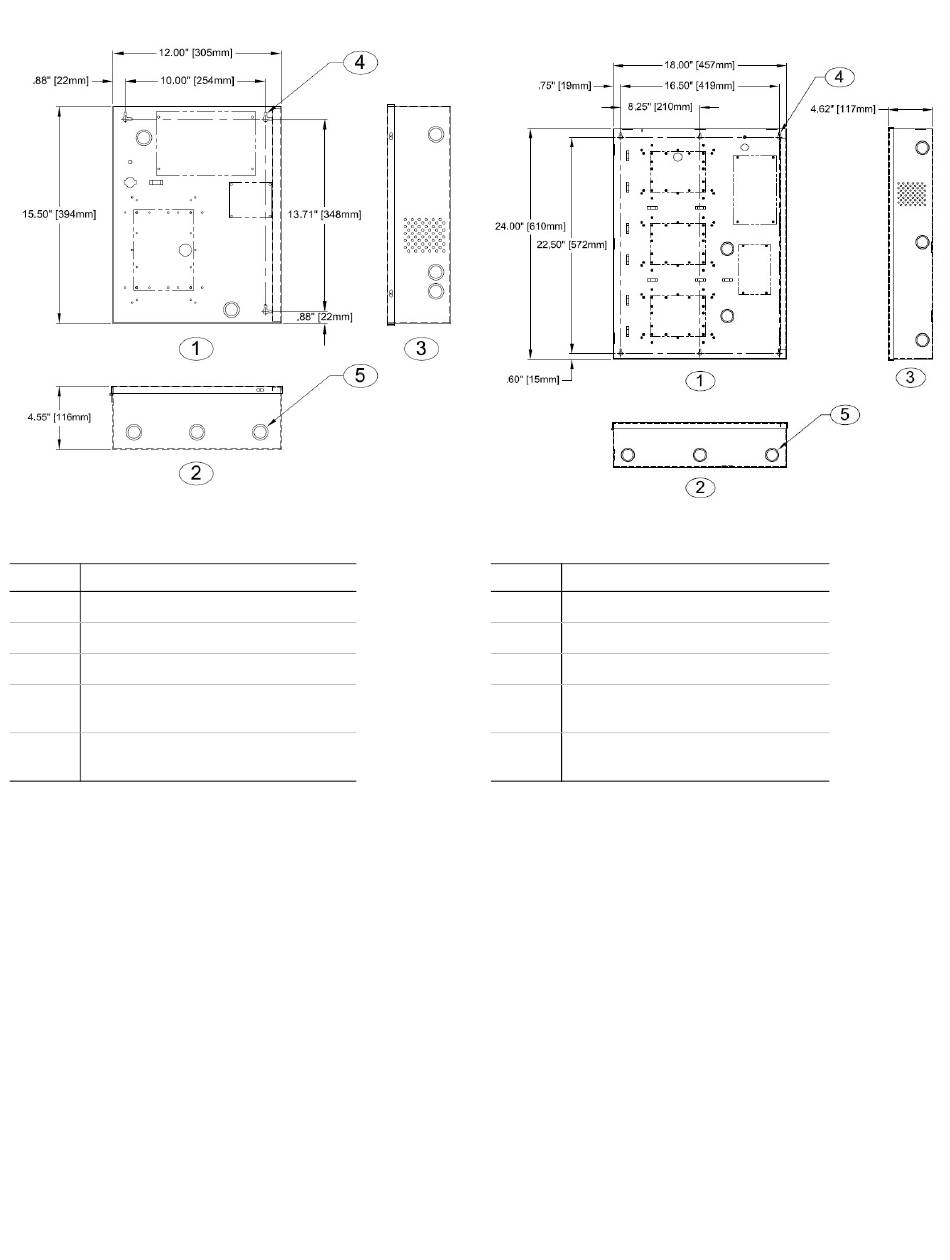

Figure 10: TP-ADD-2D Enclosure Dimensions
Callout Description
1 Front view; cover not shown
2 Bottom view; top view the same
3 Side view typical
4 0.20 in. (05 mm) and .38 in. (9.6 mm) double
keyhole in 3 holes.
5 Combination 1.124 in. (28.6 mm) and .875 in.
(22.2 mm) knockout typical
TruPortal Dual Door Interface Module Quick Reference
Figure 11: TP-ADD-4D Enclosure Dimensions
Callout Description
1 Front view; cover not shown
2 Bottom view; top view the same
3 Side view typical
4 0.20 in. (05 mm) and 38 in. (9.6 mm) double
keyhole in 6 holes.
5 Combination 1.125 in. (29 mm) and 1,375 in.
(35 mm) knockout typical
