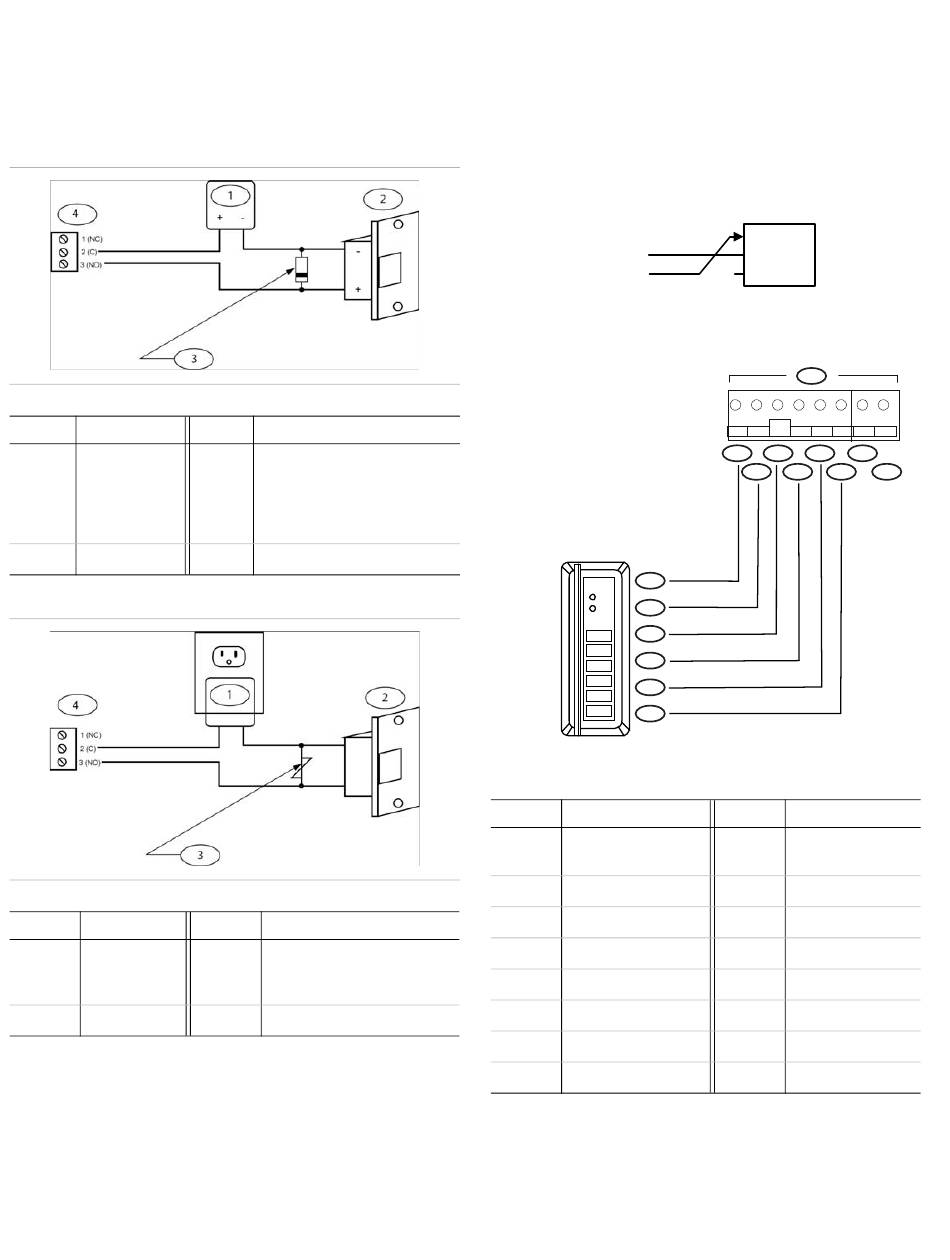

Output Wiring
The contact protection circuit must be used. The two circuits
shown in Figure 2 and Figure 3
protection circuit as close to the load as possible (within 12 in.
[30 cm]), as the effectiveness of the circuit will decrease if it is
located further away.
Figure 2: Recommended Circuit #1
Callout Description
1 12 VDC
2 DC strike
Figure 3: Recommended Circuit #2
Callout Description
1 AC transformer
2 AC strike
TruPortal Dual Door Interface Module Quick Reference
are recommended. Locate the
Callout Description
3 Diode current rating >1x strike
current. Diode breakdown voltage
>4x strike voltage for 12 or
24 VDC strike. Diode 1N4002
(100 V/1 A) typical.
4 TB5 or TB8 on module.
Callout Description
3 Clamp voltage >1.5x VAC RMS.
For 24 VAC strike, Panasonic
ERZ-CO7DK470 is typical.
4 TB5 or TB8 on module.
Magnetic Locks and Other "Fail-Safe" Door Locks
The default door lock wiring is for "Fail Secure" (powered =
unlocked). For magnetic locks and other "Fail-Safe" door locks
(powered = locked), move the Normally Open (NO) wire to
Normally Closed (NC) terminal for the specific unlock relay.
Note: The System shall not be installed in the Fail Secure
mode unless permitted by the local authority having
jurisdiction and shall not interfere with the operation of
panic hardware. (Not evaluated by UL.)
Figure 4: Door Lock Wiring
Reader Wiring
Figure 5: Reader Wiring
10
11
12
0 1
2 3
13
4 5
6 7
14
8 9
* #
15
The following table lists the items shown in
Callout Description
1 Reader (TB2 or TB11
on module)
2 (+) 5/12 VDC
3 Green LED
4 Red LED
5 R1 Data 1
6 R1 Data 0
7 (-) 0V Signal Ground
8 R2 Data 1
For the second reader of each door, the reader connections are
shared (except for the Data 0 and Data 1, which are separate for
each reader).
1 NC
2 Com
X
3 NO
1
TB11
1 2 3 4 5 6 1 2
RED/
5/12 GRN RXD R1D1 R1D0 GND R2D1 R2D0
2 4 6 8
3 5 7 9
Figure 5
Callout Description
9 R2 Data 0
10 Red (1)
11 Brown (4)
12 Orange (5)
13 White (3)
14 Green (2)
15 Black (6)
