Interlogix UltraSync UM-C-H1 Installation Sheet

UltraSync Modular Hub
TM
Cellular Module
Installation Sheet
UM-C-H1
English Installation Sheet
Product Summary
This module adds cellular communication capability to the
UltraSync Modular Hub, allowing alarm reporting and remote
connection over the cellular network. A SIM card is pre-
installed and should not be removed.
Installing the Module
Caution: Electrostatic discharge may cause damage and void
the warranty. Proper ESD precautions must be used during
installation. Remove all power (AC and battery) to the CPU
before proceeding. Failing to do so could result in possible
damage to the product. System components should be kept in
the antistatic packaging when not in use.

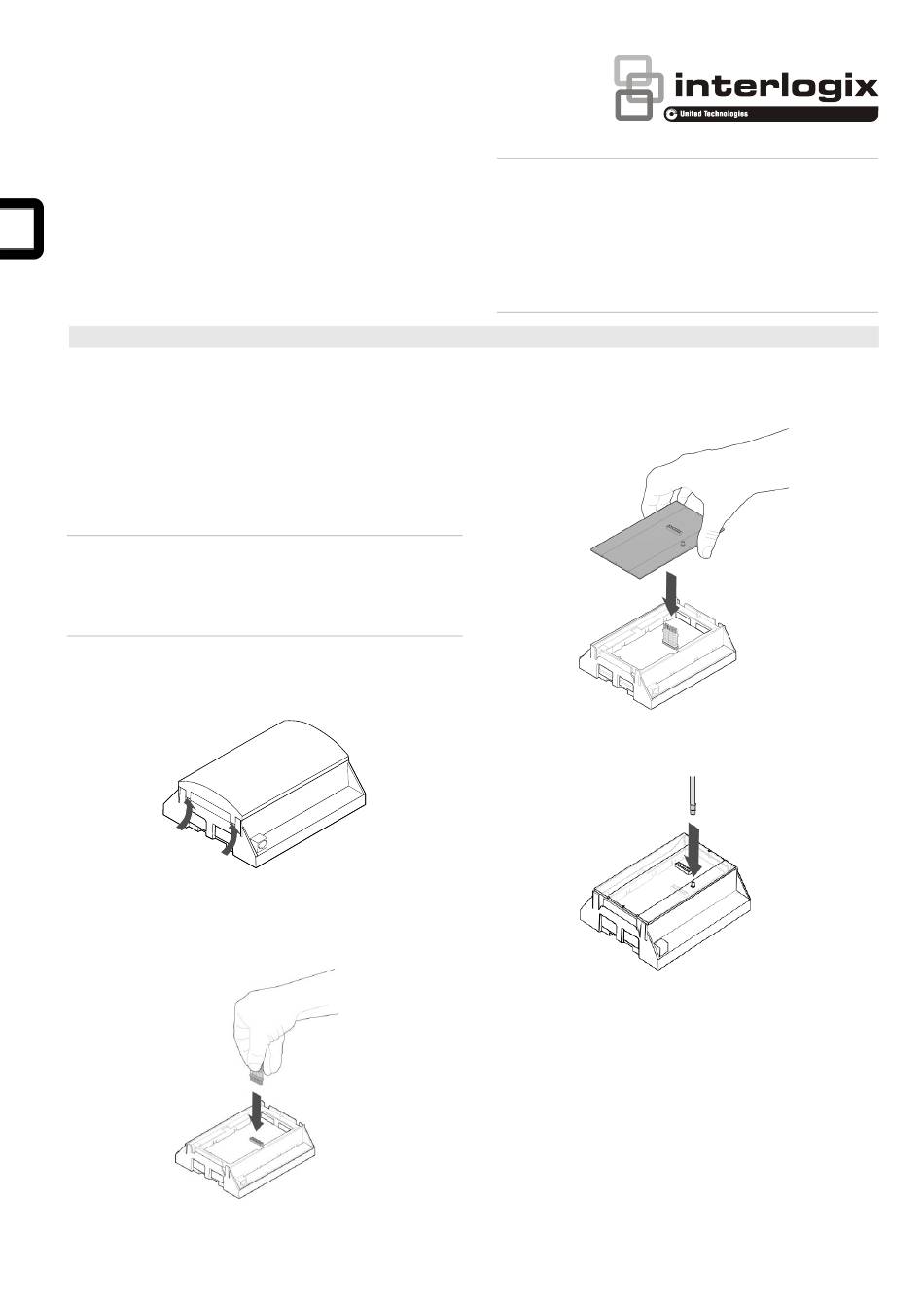

1. Remove the cover of the CPU by releasing the four (4)
side clips with a flat blade screwdriver.
2. Locate the 16-pin header on the main board of the CPU
and insert the board-to-board connector.
© 2017 United Technologies Corporation
PLEASE READ THE ULTRASYNC MODULAR HUB REFERENCE GUIDE BEFORE
USING THIS PRODUCT WHICH INCLUDES IMPORTANT SAFETY AND LEGAL
INFORMATION INCLUDING WARNINGS, WARRANTY DISCLAIMERS, AND
LIMITATIONS OF LIABILITY, AND COMPLETE INSTRUCTIONS ON HOW TO ENROLL
AND CONFIGURE EXPANSION MODULES. THE REFERENCE GUIDE IS AVAILABLE
AT: http://www.interlogix.com/intrusion/product/ultrasync-modular-hub
S'IL VOUS PLAÎT LIRE LE GUIDE DE REFERENCE POUR LE HUB UltraSync
MODULAIRE AVANT D'UTILISER CE PRODUIT QUI COMPREND LA SÉCURITÉ
IMPORTANT ET JURIDIQUES INFORMATIONS, Y COMPRIS LES AVERTISSEMENTS,
GARANTIE EXCLUSIONS, ET LIMITATIONS DE RESPONSABILITÉ ET INSTRUCTIONS
COMPLETES SUR COMMENT ENROLLER ET CONFIGURER LES MODULES
D'EXPANSION. LE GUIDE DE RÉFÉRENCE EST DISPONIBLE AU:
http://www.interlogix.com/intrusion/product/ultrasync-modular-hub.
3. Align the cellular module on the 16-pin header. Push down
until the pins come through the header and the module is
fully seated on the CPU. Take care not to bend the pins.
4. Install the antenna by aligning the connector and pressing
down until you hear a "click".
5. Align the smaller plastic cover included with cellular
module and press down until all four (4) clips lock into
place. The original larger cover is no longer required. You
may want to peel off the serial number bar code label from
the original cover and place it on the smaller cover for
future reference.
1 / 2
466-5279 • REV B • ISS 11JAN17
