Callout Description
1 TB1 (Module Bus;
wired from previous
device and to next
device)
2 TB2 (Reader)
3 TB3 (Input)
4 TB4 (Input)
5 TB5 (Unlock Relay
and Aux Relay, with
pins NC2, NO2, and
COM2 for Unlock
Relay)
6 TB6 (Module Bus)
7 Tamper
8 TB8 (Unlock Relay
and Aux Relay, with
pins NC2, NO2, and
COM2 for Unlock
Relay)
TruPortal Dual Door Interface Module Quick Reference

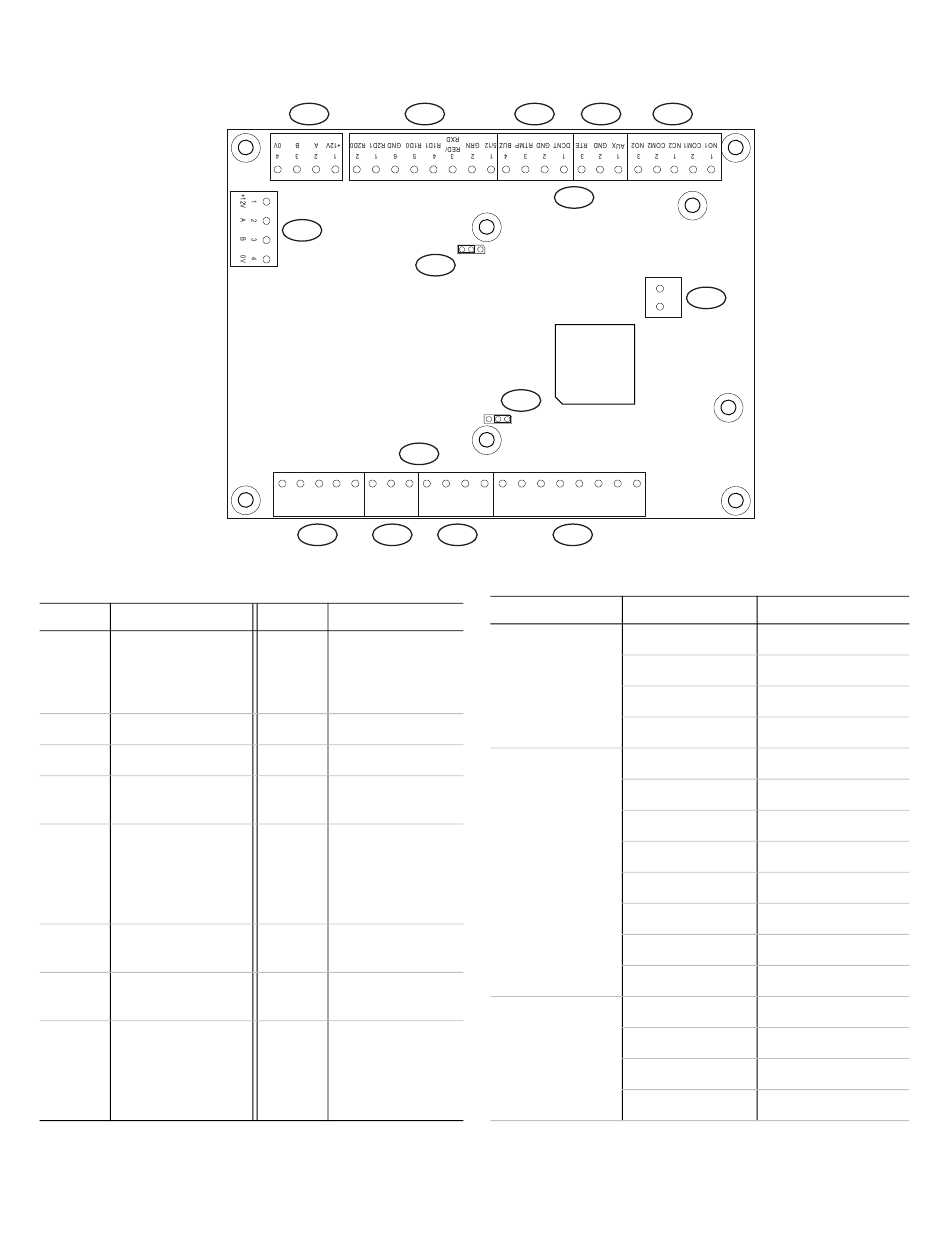

Figure 9: Dual Door Interface Module
1 2
6
+12V
13
14
1 2 1 2 3 1 2 3 1 2
GND RTMP BUZ 5/12 GRN RED/
NO1 COM1 NC2 COM2 NO2 AUX GND RTE DCNT
8 9
Callout Description
9 TB9 (Input)
10 TB10 (Input)
11 TB11 (Reader)
12 Door 2 (one or two
readers)
13 Door 2 reader
voltage
14 Door 1 (one or two
readers)
15 Door 2 reader
voltage
3 4
12
+5V
15
+5V
+12V
3 4 1 2 3 4 5 6 1
R1D1 R1D0 GND R2D1 R2D0
RXD
10 11
Table 1: Dual Door Interface Module Pinouts
Terminal Block
TB1
TB2
TB3
5
7
2
Pin Label Description
+12V (+) 12 V - Red
A Data A - Green
B Data B - Yellow
0V (-) 0V - Black
5/12

(+) 5/12 VDC

GRN

Green LED

RED/RXD

Red LED

R1D1

R1 Data 1

R1D0 R1 Data 0
GND (-) 0 V Signal Ground
R2D1

R2 Data 1

R2D0 R2 Data 0
DCNT Door Contact Input
GND COM/Shared
RTMP Reader Tamper
BUZ BUZ Out (-)
5
