SuperBus 2000 Phone Interface/Voice Module
Installation Instructions
Product summary
The SuperBus 2000® Phone Interface/Voice (PIV) Module
provides phone and voice functions for the Concord™ ,
Concord 4™, and Concord Express™ (v4) panels.
The PIV module allows installers and users to control a panel
— either on-site or from a remote location — through any
touch-tone telephone. Using an onboard digital voice chip, the
system announces status messages through each phone and
speaker connected to the module.
The PIV module also provides phone control for Concord
panels with single or multiple partitions. For multiple partitions,
a module can be used for each partition and connected to a
separate phone line.
The module communicates with the panel through a series of
bus connections and may be powered by the panel or an
auxiliary 12V DC power supply with backup battery.
SuperBus 2000 vs. SuperBus
SuperBus 2000 panels auto-address module unit numbers.
When the panel is powered, a unique device ID number (pre-
programmed at the factory) is automatically learned by the
panel. Potential identical unit number conflicts and the need to
manually set DIP switches are eliminated.
Older SuperBus panels can communicate with the PIV module
by manually setting the module's DIP switches.
SuperBus 2000 Panels
Concord (v2.0-later)
Concord 4
Concord Express (v4)
SuperBus Panels
Concord (v1.0-1.6)
P/N 466-1516-01 • REV C • 07APR11
Features
The PIV module includes the following features:
User-adjustable, speaker volume control.
On/Off hook detection.
Extensive 220-plus word vocabulary.
In-panel cabinet or optional wall mounting.
Compatibility with Concord panels (v1.0-1.6).

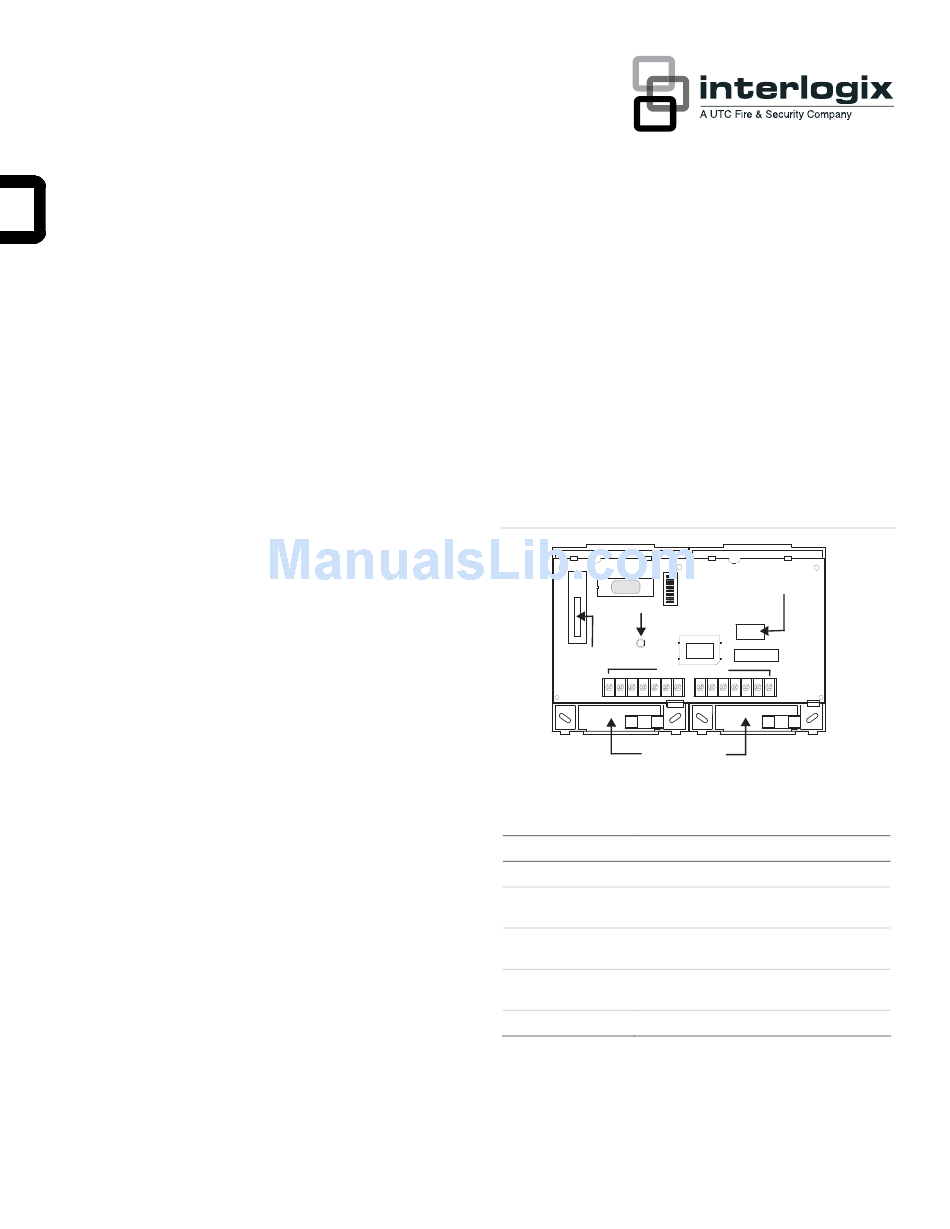

Figure 1: PIV module components
Unit Number
Status LED
Software Version
Label
Wiring Terminals
Wire Access Areas
Table 1: Module component descriptions
Component
Function
Status LED
Indicates normal panel bus communications.
Unit number DIP
Used to manually set SuperBus unit
switches
numbers.
Wiring terminals
Provides panel, speaker, and phone
connections.
SuperBus 2000 device
Identifies SuperBus 2000 device ID numbers.
ID number label
Software version label
Identifies installed module software versions.
Installation guidelines
When installing the PIV module, use the following guidelines:
SuperBus 2000
Device ID Label
DIP Switch
1
