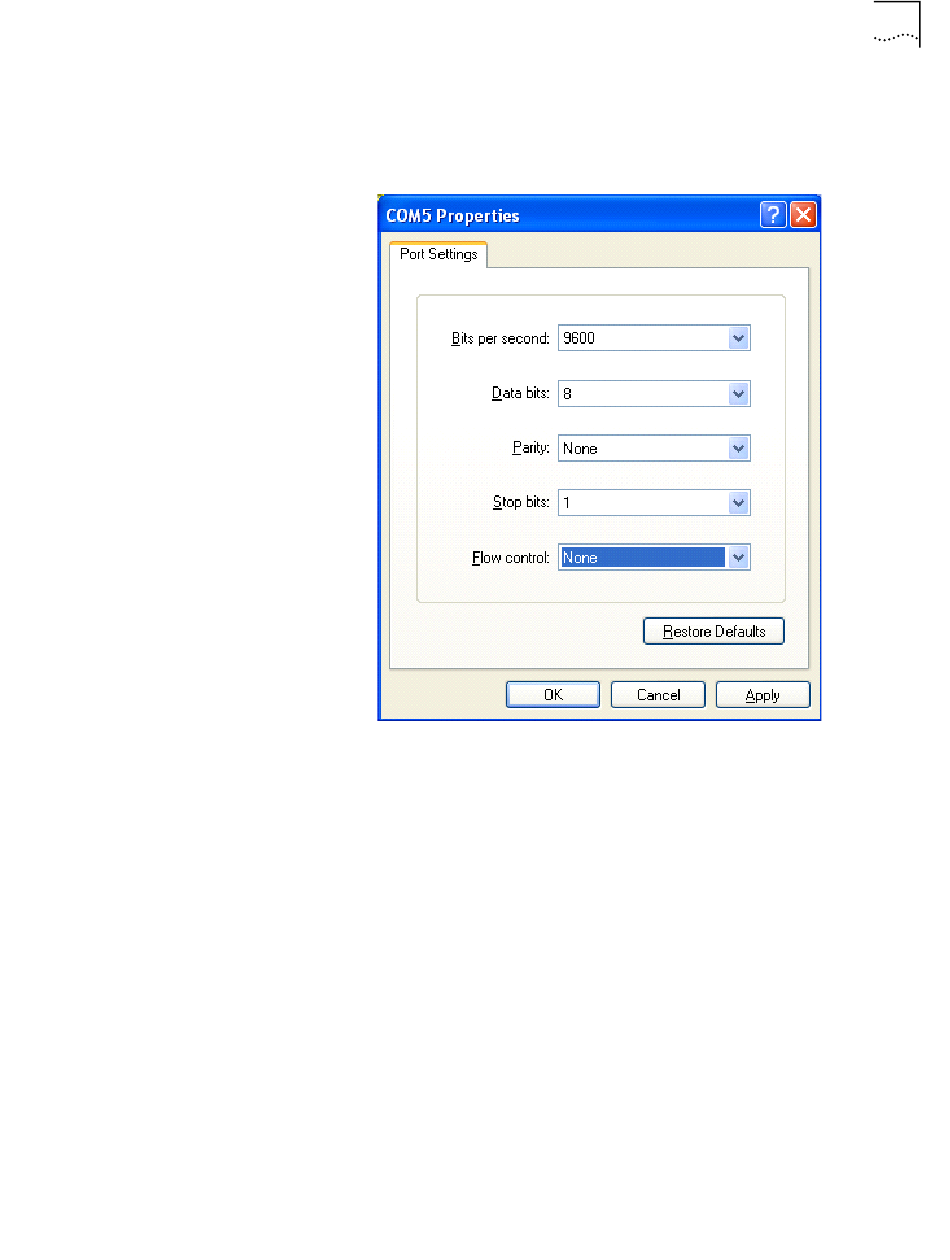

4 Setting serial interface parameter. As shown below, in the properties dialog box of
the serial interface, the parameters are set as follows: Baud rate 9600, Data bits 8,
Parity check None, Stop bits 1, and Flow control None. Click the <OK> button to
return to the HyperTerminal interface.
5 Set HyperTerminal properties. Select [Property/Settings] on the HyperTerminal and
enter the property setting window, shown below. Select VT100 or auto detection
as terminal simulation type, press [Ok] and return to the HyperTerminal window.
