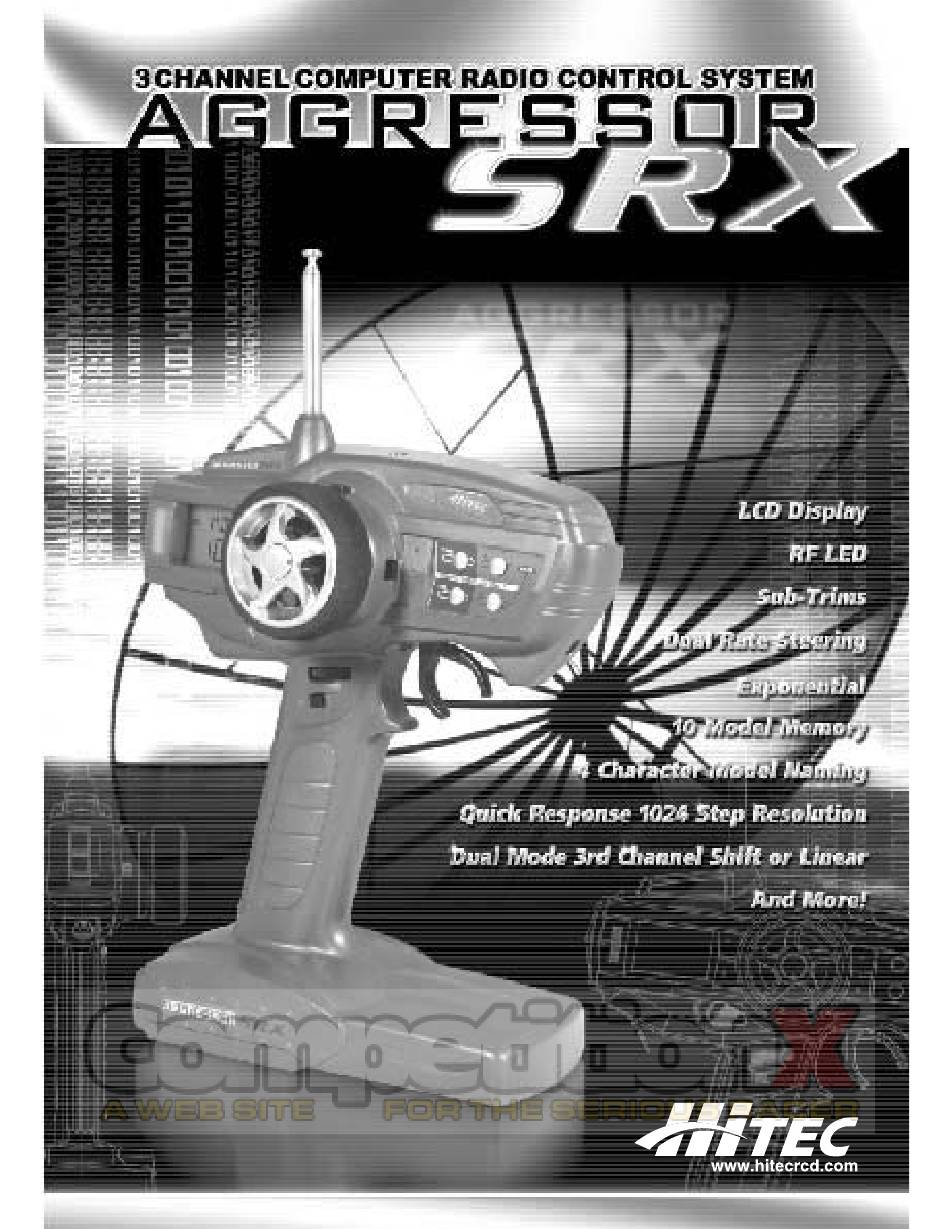

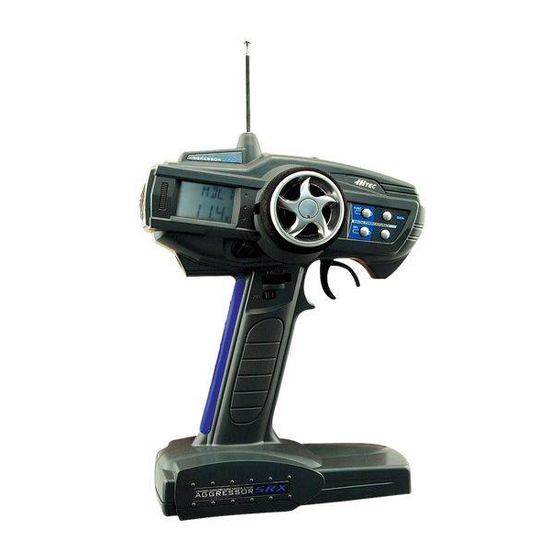

  • Page 1 INSTRUCTION MANUAL INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1. System Features Page 2 A. Radio Features B. Programmable Features C. System Specifications 1. Transmitter 2. Receiver 3. Servo Page 3 4. Accessories 5. Options 6. Available Versions 2. Transmitter Functions and Operations A. Power Switch Page 4 B.

  • Page 3: System Features

    Introduction Congratulations on your purchase of the Hitec Aggressor SRX computer radio. The Aggressor SRX is loaded with many great features to maximum your R/C experience. Please read this manual carefully to familiarize yourself with the operation of your new Aggressor SRX Computer Radio System.

  • Page 4: System Specifications

    - HS-311 - HS-645MG - One Resin Bushing - Dual Ball Bearing - Hitec Custom I.C - Metal Gears - Operating Speed : 0.15 sec AT 6v - Operating Speed : 0.2 sec AT 6v - Output Torque : 51 oz.in AT 6v - Output Torque : 133 oz.in AT 6v...

  • Page 5: Transmitter Functions And Operations

    2. Transmitter Functions and Operations A) Power Switch F) ATL Switch K) Antenna P) Steering tension adjustment B) LCD Display G) Steering and Throttle trims L) Grip Pad Q) Throttle Trigger C) Programming buttons H) Third channel Linear adjust M) Module R) Brake limiter D) RF Indicator light I) Third channel (Shift) button...

  • Page 6: Steering Dual Rate

    D) Radio Frequency (RF) Indicator Light - The green light will only be on if the transmitter is sending a signal. E) Steering Dual Rate - Adjusts the overall travel of the steering servo. - Push the dial forward with your thumb for maximum steering (Maximum 125%). - Pull the dial back with your thumb to reduce the travel (Minimum 60%).

  • Page 7: Antenna

    - Note: Wiggle the module to help ease its removal. N) Charging Jack - The transmitter charging jack located under the power switch is for use with the Hitec optional CG-25 charger. The charger can be purchased separately if using rechargeable batteries.

  • Page 8: Recharging Batteries

    Nicad Battery Installation 4. Recharging Batteries - Connect the optional Hitec CG-25 overnight wall charger (sold separately) to the transmitter charging jack located under the transmitter power switch to charge optional re-chargeable batteries. - Note: If the charger is correctly hooked up to the transmitter, the red light on the charger will be lit while charging.

  • Page 9: Receiver Servo Connections

    5. Receiver Servo Connections RECEIVER (Not included) 7.2V (Not included) Electric Car Installation RECEIVER BATT (Not included) (Not included) 4.8~6.0V (Not included) Note: Only one battery should be connected at a time. (Not included) Gas/Nitro Car Installation A) Receiver - HFS-03MM Single Conversion - You can use a separate receiver 4.8v - 6V battery pack if required for your particular model.

  • Page 10: Servos

    B) Servos - Your Aggressor SRX includes either an HS-311HD or a powerful HS-645MG high torque metal gear servo. - The HS-311 is suited for light electric vehicles steering and most 1/10th size nitro vehicles for throttle. It should not be used for steering in nitro powered vehicles or heavy monster trucks.

  • Page 11: Main Edit Mode

    6. Main Edit mode This menu allows you to set up the initial settings of the model, and will typically only be accessed once unless setting up a new model. The main edit mode screens will appear in the following order: 1.
  • Page 12 D) 3rd Channel Switch Select: - After entering the Main Edit mode press the "FUNC" button to scroll to the 3rd Channel Switch Select menu. - Push the "DATA" + and - buttons to Select either "Linear" or "Shift". - Linear is activated via the trim tab on the right side of the steering column and can be moved to any position you select.

  • Page 13: Programming Mode

    7. Programming mode This programming menu allows you to access the settings that you would typically change to set up your vehicle or change models. The Programming mode screens will appear in the following order: 1. Model Select 2. Sub-Trims 3.
  • Page 14 C) EPA (End Point Adjustment) - After entering the Programming mode press the "FUNC" button to scroll to the EPA menu. - The current settings will show on this menu. - STEERING EPA - "Steering" will appear first. Use the "DATA" + button to adjust the EPA setting higher or the - button to adjust it lower.
  • Page 15 D) Exponential - Negative steering exponential will make the vehicle less sensitive to small inputs and Positive expo will make the vehicle more sensitive. Typically you will only use negative expo for steering but you should experiment with this setting to see what suits your driving style the best. -30% is a good place to start.

  • Page 16: Troubleshooting Guide

    8. Troubleshooting Guide Question: I installed the batteries in my transmitter, but the power lights do not come on: Answer: - Check that the batteries are properly installed by checking the polarity (+ and -). Question: My radio has power, but I have no control: Answers: - Check to be sure the power switch is on and connected to the receiver.
