Glow-worm Ultrapower sxi Series Installation And Servicing page 21

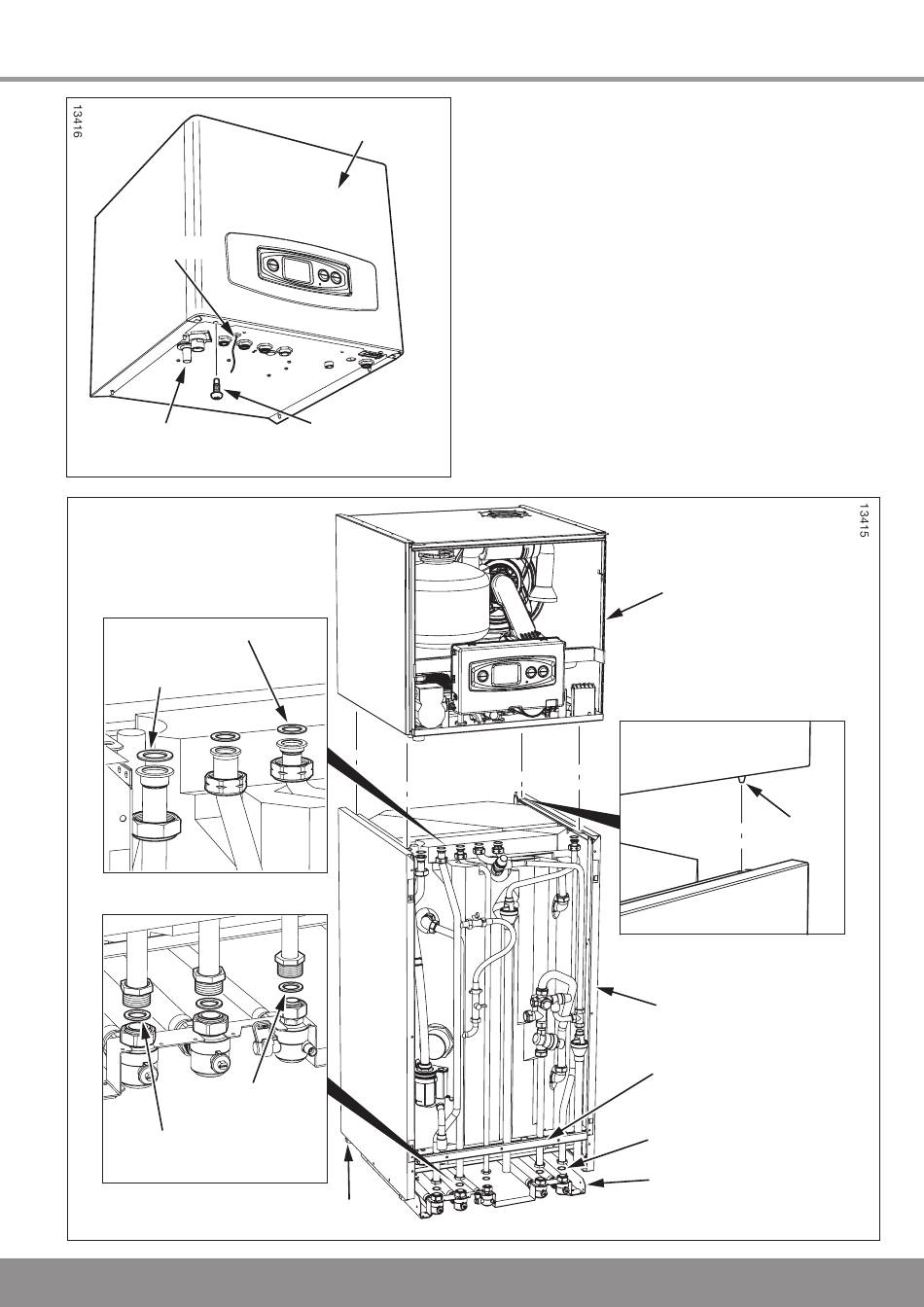

8 Gas, Water & Boiler Connection
TANK
THERMISTOR
CABLE
FLEXIBLE
CONDENSATE
HOSE CONNECTION
SEALING WASHER (beige)
(5 OFF)
PUMP WASHER
SEALING WASHER
1/2"
SEALING WASHER
(white plastic) (4 OFF)
BOILER MODULE
FRONT PANEL
SECURING
SCREW (2 OFF)
Diagram 8.2
ADJUSTABLE
FEET
21
8.3 Boiler Module Connection
Unpack the boiler module from its carton.
Position the boiler on top of the tank ensuring the correct
engagement of the locating pins, see diagram 8.3.
Remove the front panel securing screws and lift the panel off
at the top locating bracket, see diagram 8.2.
Position the plastic sealing washers as shown in diagram 8.3
and secure to the pipes to the connectors beneath the boiler
as shown in diagram 8.2.
On completion secure the pipe retaining bracket if previously
slackened and level the boiler using the adjustable feet.
BOILER MODULE
TANK MODULE
PIPE
RETAINING
BRACKET
PLASTIC WASHERS
FLOOR FIXING JIG
LOCATING
PIN (4 OFF)
Diagram 8.3
