3 Flue Options and Terminal Clearances

HORIZONTAL FLUES
A DIRECTLY BELOW AN OPENING, AIR BRICK,
OPENING WINDOWS
B ABOVE AN OPENING, AIR BRICK,
OPENING WINDOWS
C HORIZONTALLY TO AN OPENING,
AIR BRICK, OPENING WINDOWS
D BELOW GUTTER, DRAIN/SOIL PIPE
E BELOW EAVES
F BELOW A BALCONY OR CAR PORT
G FROM VERTICAL DRAIN PIPES AND
SOIL PIPES
H FROM INTERNAL/EXTERNAL CORNERS
*
H TO A BOUNDARY ALONGSIDE THE
TERMINAL
I ABOVE ADJACENT GROUND OR
BALCONY LEVEL
*
J FROM SURFACE OR A BOUNDARY
FACING THE TERMINAL
K FACING TERMINALS
L FROM OPENING (DOOR/WINDOW)
IN CAR PORT INTO DWELLING
M VERTICAL FROM A TERMINAL
N HORIZONTALLY FROM A TERMINAL
VERTICAL FLUES
P FROM ANOTHER TERMINAL
Q ABOVE ROOF LEVEL
R FROM ADJACENT OPENING WINDOW
S FROM ADJACENT WALL TO FLUE
3.1 Flue Options
There are various flue options to choose from as illustrated in
diagram 3.3. The flue lengths and installation of various flue
types are described in section 10.
3.2 Flue Terminal Position
The minimum acceptable siting dimensions for the terminal
from obstructions, other terminals and ventilation openings
are shown in diagram 3.1. For Ireland the minimum distances
for flue terminal positioning must be those detailed in I.S.813
"Domestic Gas Installations".
The terminal must be exposed to the external air, allowing
free passage of air across it at all times.
Being a condensing boiler some pluming may occur from
the flue outlet. This should be taken into consideration when
selecting the position for the terminal.
NOTE: If necessary it is permitted to increase the terminal
protrusion through the outside wall to greater than the
minimum dimension of 87mm but no more than 600mm.
Carports or similar extensions of a roof only, or a roof and
one wall, require special consideration with respect to any
openings, doors, vents or windows under the roof. Care is
required to protect the roof if made of plastic sheeting. If
the carport comprises of a roof and two or more walls, seek
advice from the local gas supply company before installing
the boiler.
300
H* and J* See diagram 3.1 . These dimensions comply with
300
the building regulations, but they may need to be increased
to avoid wall staining and nuisance from pluming depending
300
on site conditions.
25
Plume Management Kit: Part No.A2044100 (white) or
25
A2044000 (black) can be used to overcome many site issues.
25
3.3 Terminal Guard
25
25
A terminal guard is required if persons could come into
contact with the terminal or the terminal could be subject to
300
damage.
If a terminal guard is required, it must be positioned to
300
provide minimum of 50mm clearance from any part of the
terminal and be central over the terminal.
600
The guard should be similar to that shown in diagram 3.2.
1200
A suitable guard is manufactured by: -
1200
Tower Flue Components
1500
Morley Rd.
300
Tonbridge
Kent TN9 1RA.
600
Size: 280mm x 280mm x 270mm.
300
1000
300

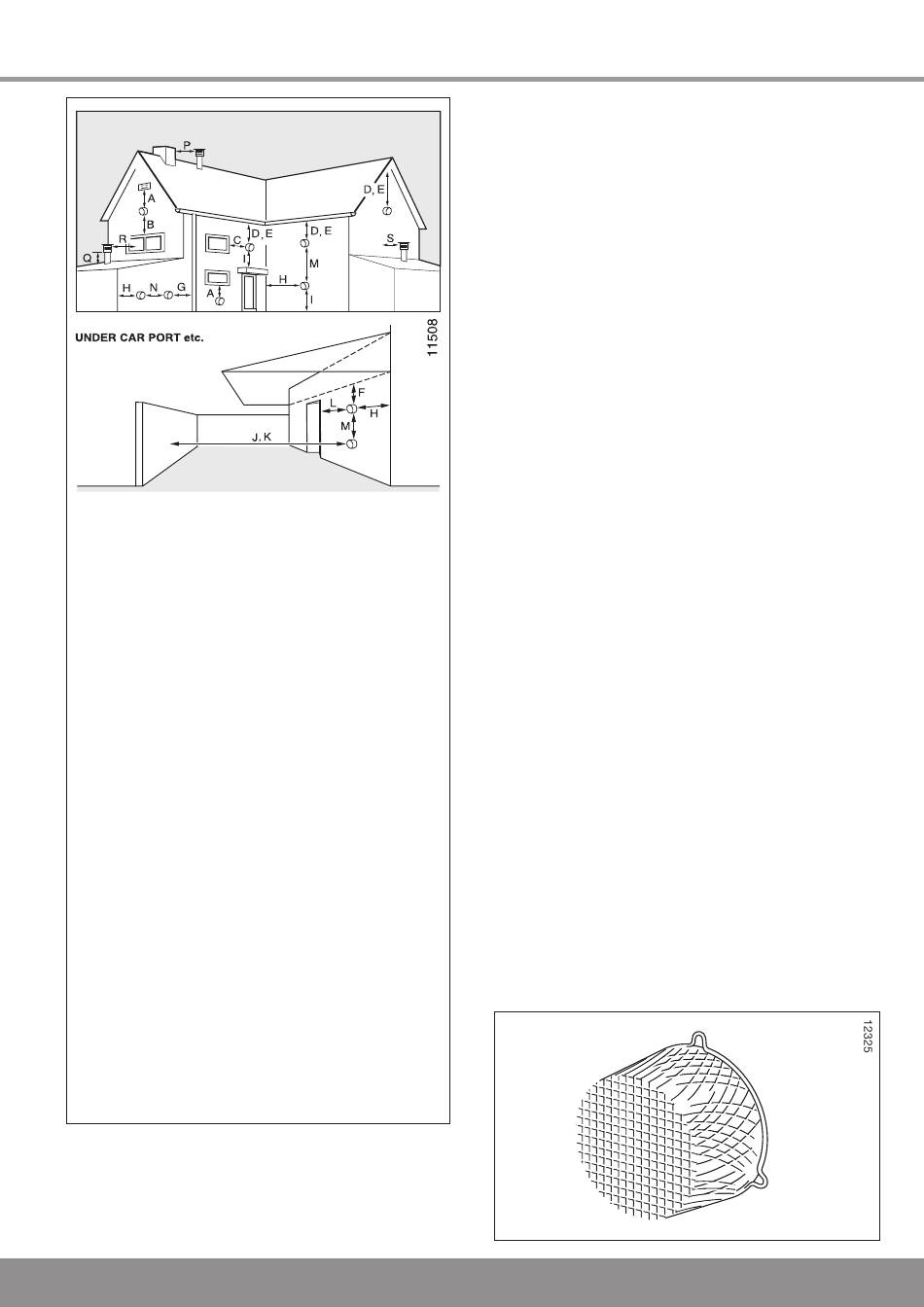

Diagram 3.1
11
Diagram 3.2
