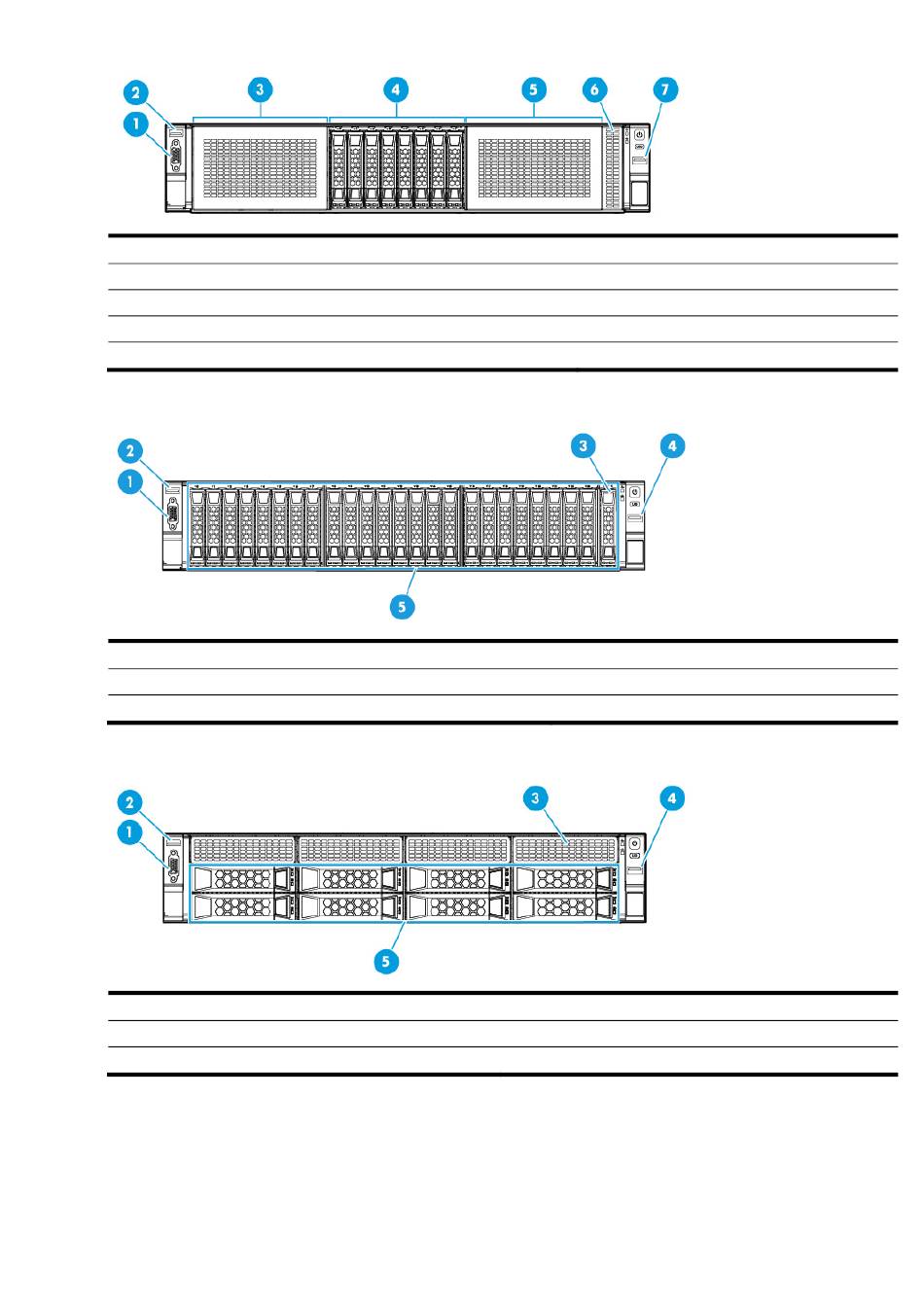

Figure 3 8SFF front panel
(1) VGA connector (optional)
(3) Drive cage bay 1 for 8SFF NVMe SSDs, optical drives, or SATA M.2 SSDs (optional)
(4) Drive cage bay 2 for 8SFF SAS/SATA drives or 8SFF NVMe SSDs
(5) Drive cage bay 3 for 8SFF SAS/SATA drives or 8SFF NVMe SSDs (optional)
(6) Diagnostic panel or serial label pull tab module (optional)
Figure 4 25SFF front panel
(1) VGA connector (optional)
(3) Diagnostic panel or serial label pull tab module (optional)
(5) 25SFF drives (optional)
Figure 5 8LFF front panel
(1) VGA connector (optional)
(3) Diagnostic panel (optional)
(5) 8LFF SAS/SATA drives
(2) USB 2.0 connector (optional)
(7) USB 3.0 connector
(2) USB 2.0 connector (optional)
(4) USB 3.0 connector
(2) USB 2.0 connector (optional)
(4) USB 3.0 connector
5
