RC-GPU/FHHL-2U-G3-1
Item
PCIe riser connector
PCIe slots
Form factors of PCIe modules
Maximum power supplied per PCIe slot

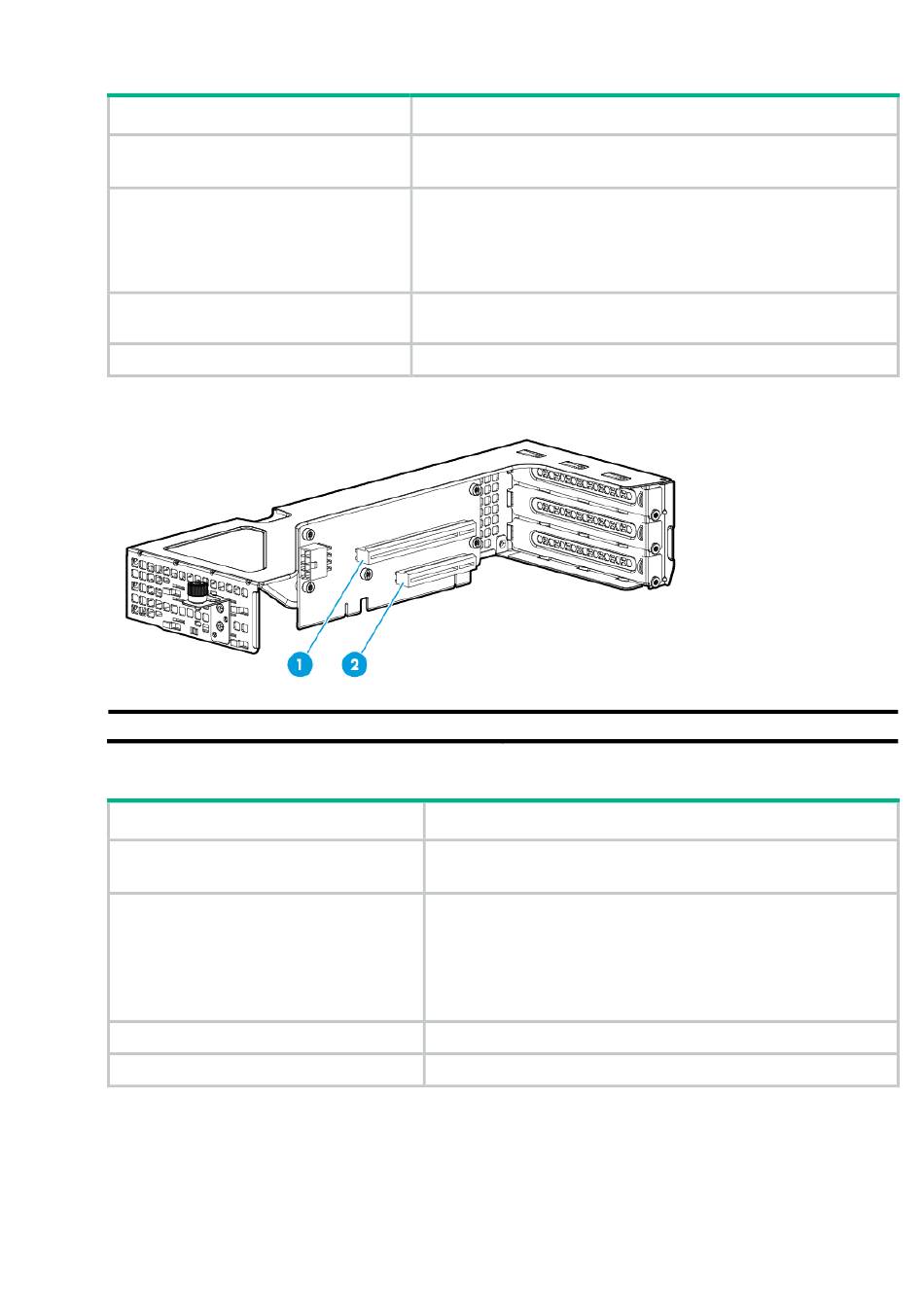

Figure 36 PCIe slots on the RC-GPU/FHHL-2U-G3-1 riser card
(1) PCIe slot 2/5
RS-3*FHHL-R4900
Item
PCIe riser connector
PCIe slots
Form factors of PCIe modules
Maximum power supplied per PCIe slot
Specifications
•
Connector 1
•
Connector 2
•
Slot 2/5, PCIe3.0 ×16 (16, 8, 4, 2, 1)
•
Slot 3/6, PCIe3.0 ×8 (8, 4, 2, 1)
NOTE:
The numbers in parentheses represent link widths.
FHHL (only slot 2/5 supports single-wide and double-wide GPU
modules)
75 W
(2) PCIe slot 3/6
Specifications
•
Connector 1
•
Connector 2
•
Slot 1/4, PCIe3.0 ×16 (8, 4, 2, 1)
•
Slot 2/5, PCIe3.0 ×16 (8, 4, 2, 1)
•
Slot 3/6, PCIe3.0 ×8 (8, 4, 2, 1)
NOTE:
The numbers in parentheses represent link widths.
FHHL
75 W
