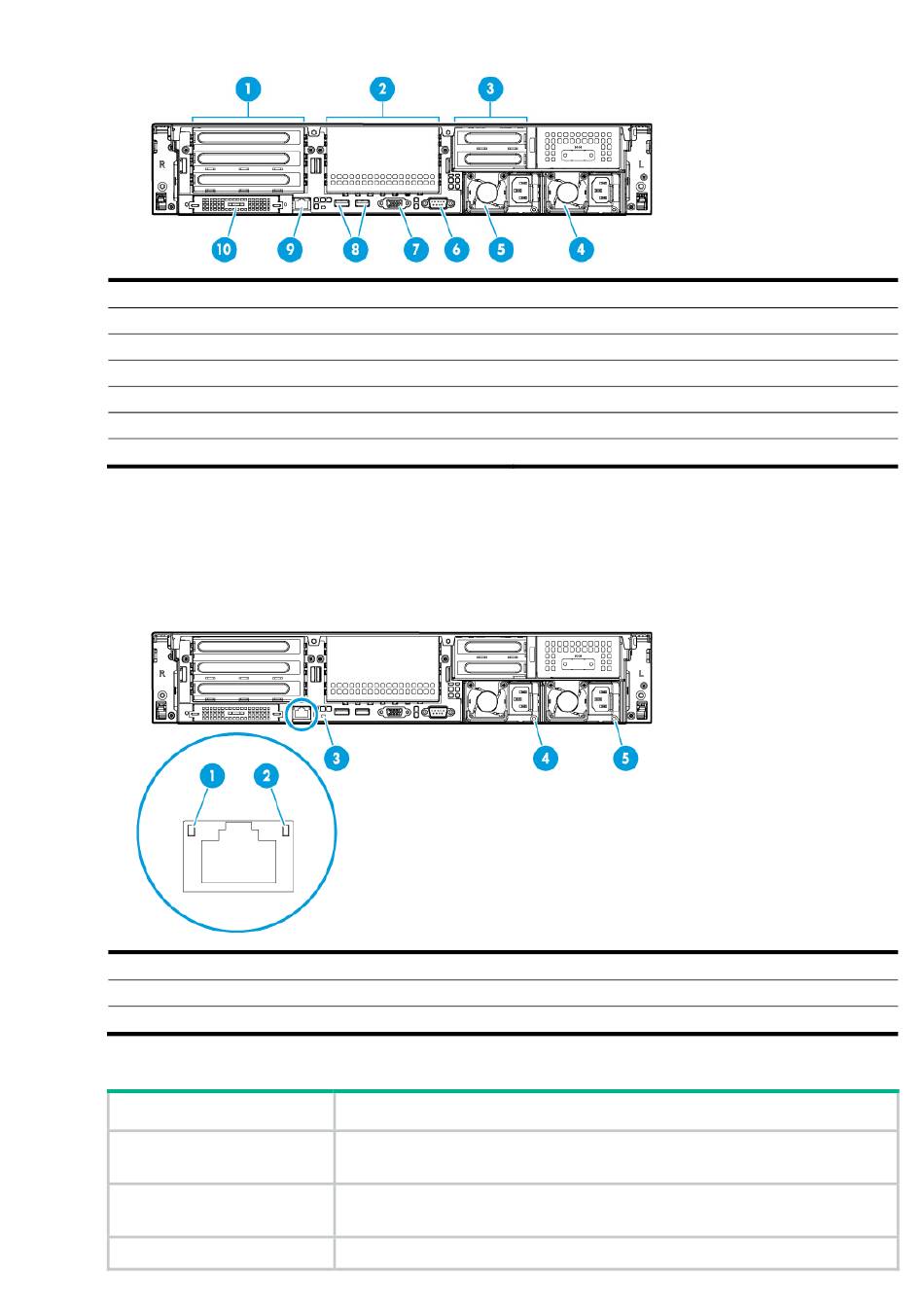

Figure 8 Rear panel components
(1) PCIe slots 1 through 3 from the top down (processor 1)
(2) PCIe slots 4 through 6 from the top down (processor 2)
(3) PCIe slots 7 and 8 from the top down (processor 2)
(5) Power supply 1
(7) VGA connector
(9) HDM dedicated network port (1 Gbps, RJ-45, default IP address 192.168.1.2/24)
(10) mLOM Ethernet adapter (optional)
LEDs
Figure 9
shows the rear panel LEDs.
Figure 9 Rear panel LEDs
(1) Link LED of the Ethernet port
(3) UID LED
(5) Power supply 2 LED
Table 5 LEDs on the rear panel
LED
Link LED of the Ethernet port
Activity LED of the Ethernet
port
UID LED
Table 5
describes the status of the rear panel LEDs.
Status
•
Steady green—A link is present on the port.
•
Off—No link is present on the port.
•
Flashing green (1 Hz)—The port is receiving or sending data.
•
Off—The port is not receiving or sending data.
•
Steady blue—UID LED is activated. The UID LED can be activated by
8
(4) Power supply 2
(6) BIOS serial port
(8) USB 3.0 connectors
(2) Activity LED of the Ethernet port
(4) Power supply 1 LED
