TERRA/TERRA SX
| Electric Wheelchair

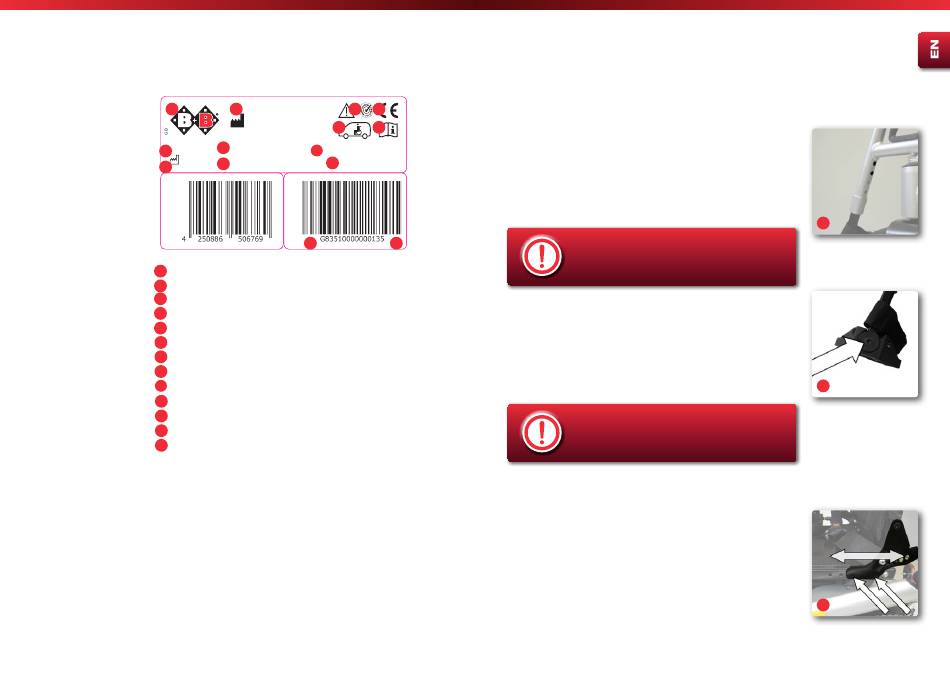

CE Sticker & EAN Codes (Size 80 mm x 23 mm)
Power Wheelchairs (crash tested)
A
Model: Terra
G
2017-12
J
EAN 13
Manufacturer logo
A
Manufacturer information
B
RoHS logo
C
CE mark
D
Not suitable for use as a seat in a vehicle
E
Important - Adhere to the operating instructions
F
Model designation
G
Model number
H
I Application class
Date of manufacture
J
Maximum load capacity
K
Maximum speed
L
Serial number
M

3.5. Basic settings

Before using the wheelchair for the first time it must be adjusted for
your body size. This is the only way to ensure extended use without
fatigue in a physiologically correct posture. The basic adjustments of
the wheelchair are described below. You should have all adjustments
made by a qualified medical supply dealer. You need a set of 4 mm to
6 mm Allen keys, a screwdriver and ring spanners, 10 mm and 13 mm.
40
B Bischoff & Bischoff GmbH C D
Becker-Göring-Straße 13
D - 76307 Karlsbad
E F
Telefon 0700 - 60007070
H
Model no.: 8351 Class: B (Outdoor | Indoor)
I
Max. weight capacity: 136kg Max. speed: 10 km/h
L
K
SN
M 01
Electric Wheelchair |

3.5.1. Leg rests

Length of lower leg rests
• The lower leg rests can be adjusted from 47 to 55 cm.
• To do so, loosen the two Allen screws (SW 4).
• Adjust to the desired height (fig. 02).
• Tighten the screws again.
• Use Loctite 243 to lock screws in place.
Make sure to always use two screws for secure
fastening!
Angle of footrest
• The angle of the footrests is adjustable in 25° steps.
• Loosen the screwing at the side of the footrest.
• Adjust to the desired angle (fig. 03).
• Tighten the screw again.
• Use Loctite 243 to lock screw in place.
Make sure to set the angle only within the marked
range!

3.5.2. Seat

Seat depth
• The seat depth is initially set to 45cm.
• You may reduce the seat depth to 40cm. Subsequently, you should
use an adjusted new seat cushion.
• To adjust the seat depth, loosen the fasteners of the backrest, move
the backrest forward and tighten the screws again (fig. 04)
Bischoff & Bischoff GmbH |01.06.2019
TERRA/TERRA SX
02
03
04
41
