Installation

1. Connect Bluetooth and GSM antennas to JLink
LTE as shown on the picture below.
2. Connect JLink LTE to external power supply
(10...30 V).
3. Insert SIM card to the SIM card slot if you would
like to use GSM connection to connect to Internet.

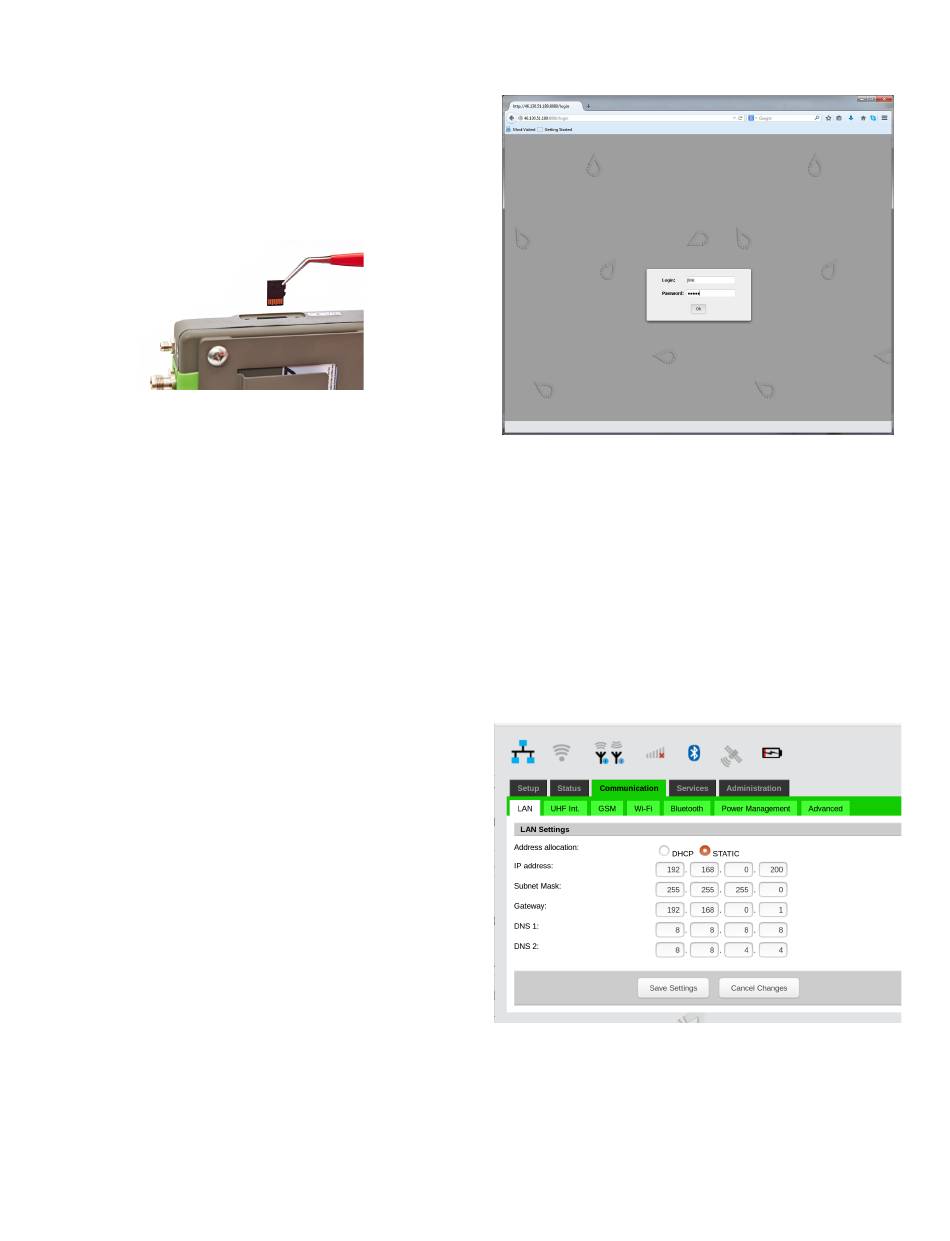

Figure 2.
4. Plug in LAN cable if you would like to use Ethernet
connection to connect to Internet.
5. Plug in COM PORT cable if you would like to use
CLI interface to communicate with device.

Setup and Configuration

1. Turn on power of JLink LTE.
2. Wait for complete loading. When it is complete,
Power LED will blink.
3. Connect to the device and configure it using
web-browser.
Connection can be established in one o the follow-
ing ways:
• via Bluetooth interface: the device (PC, hand-
held/pad) should be with Bluetooth interface with
PAN profile support. JLink LTE Bluetooth-interface
is in visibility mode, has the name "Jlink LTE" and
PIN code 0000. When connection is established
open the web-browser and enter the address
10.1.11.1:8080.
• via WiFi interface: The device (PC, handheld/
pad) should be with WiFi interface. JLink LTE Wi-
Fi-interface has the name "Jlink LTE" and pass-
word "testtest". When connection is established
open the web-browser and enter the address
10.1.10.1:8080.
• via Ethernet: JLink LTE LAN static IP adress is
192.168.0.200 and network mask is 255.255.255.0.
On the PC connected to the same LAN, open
the web browser and enter the address
192.168.0.200:8080. The dialog window appears
www.javad.com
SIM card installation
with login/password request. Enter login and pass-
word (jlink/jlink).
Login and password entering
Figure 3.
Thereafter the device is ready for setup and config-
uration.
4. Select the interface which will be used to connect
to Internet and configure it. The following interfaces
are available:
• Ethernet: Configure Ethernet interface in the
Communication/LAN tab. Set the network param-
eters and reboot the device using Reboot button in
the Administration/Management tab see figure be-
low.
Figure 4.
• GSM/LTE/4G: Configure this interface using
Communication/GSM tab. Set the APN parame-
ters (if necessary) and select the SIM-card slot. In
the Communication/Power Management tab ac-
tivate the interface and wait for registering in the
network and Internet access availability. More de-
LAN configuration tab
9
