Javad JLink LTE User Manual page 15

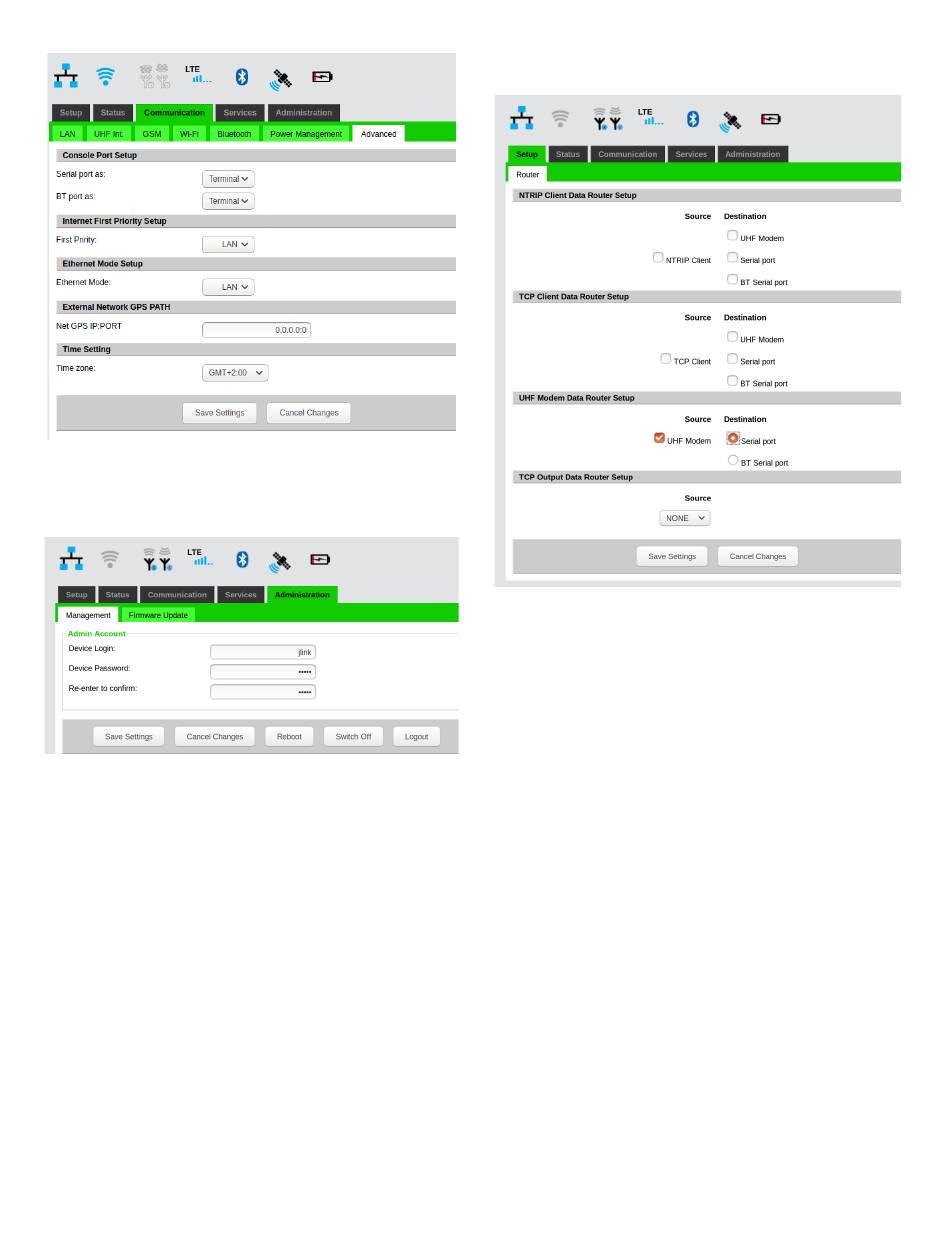

Figure 20. Advanced tab
4. Reboot the device by clicking Reboot in the
Administration/Management tab.
Administration Management tab
Figure 21.
5. Setup the Router. In the Setup/Router tab select
the following parameters:
• "UHF Modem" as Source
www.javad.com
• "Serial port" as Destination.
• Click Save Settings and wait until finish.
Figure 22. UHF Modem Router tab
6. Connect the Serial Port. Use any application to
connect serial port of JLink LTE with following param-
eters:
• Baudrate 115200
• Parity none
• Data Bits 8
• Stop Bits 1
• Handshake hardware
15
