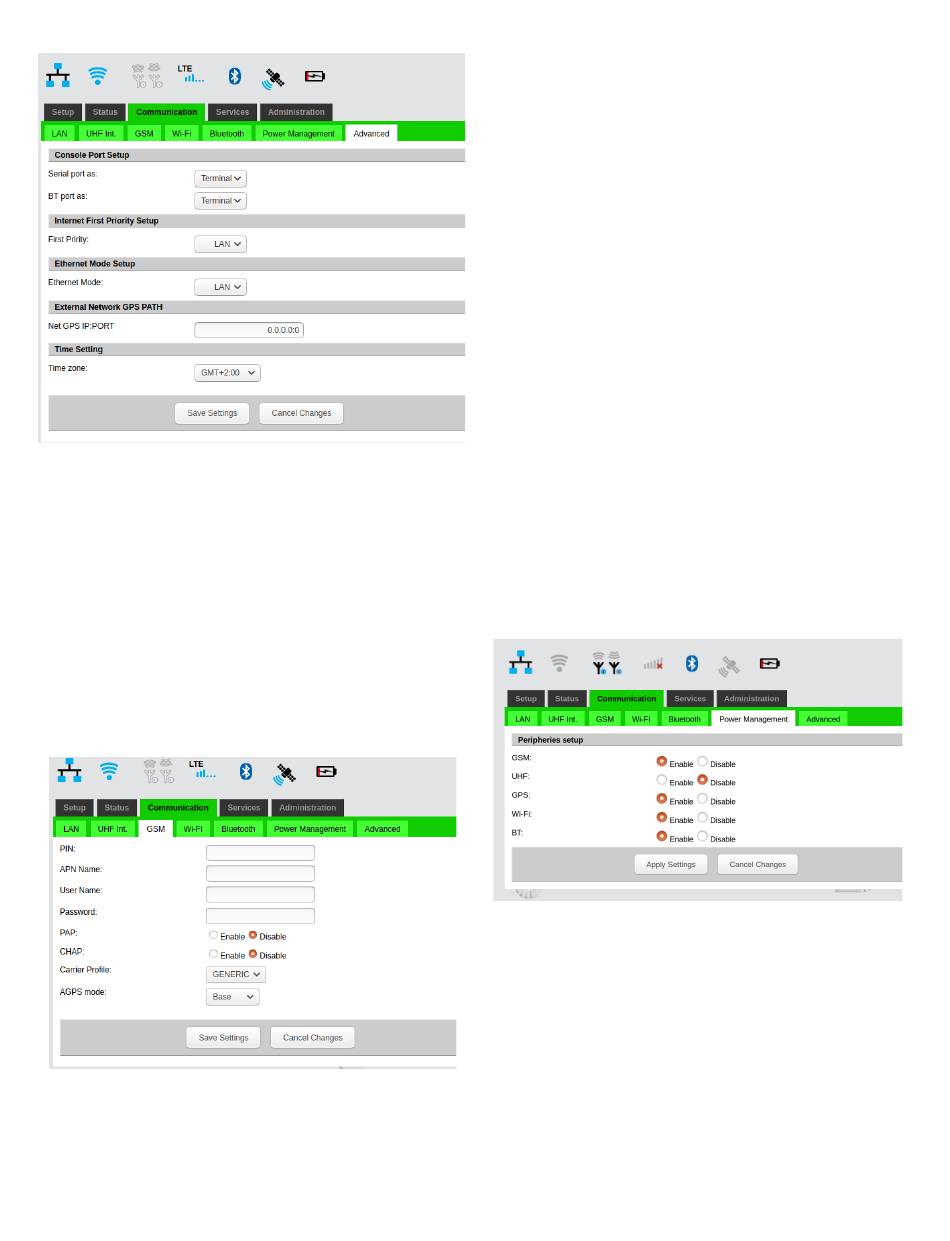

Figure 8.
...Setup JLink LTE to provide RTK data
received via NTRIP Client to Serial Port
1. Connect to JLink LTE via web interface as de-
scribed above.
2. Configure the Cellular (GSM ):
• In the Communication/GSM tab set the PIN
code and APN parameters (if necessary);
Figure 9.
• Use tweezers to install or remove the micro-
SIM card.
• Insert the SIM card to its slot. The first slot
from the green top cover is for microSIM, the
www.javad.com
Advanced configuration tab
GSM configuration tab
How to...
second slot is for microSD card.
• In the Communication/Power Management tab
activate the GSM interface.
Figure 10.
Wait for registering in the network and Internet ac-
cess availability. The detailed connection status can
be checked in the Status/GSM tab.
Power Management tab
11
