Javad JLink LTE User Manual page 12

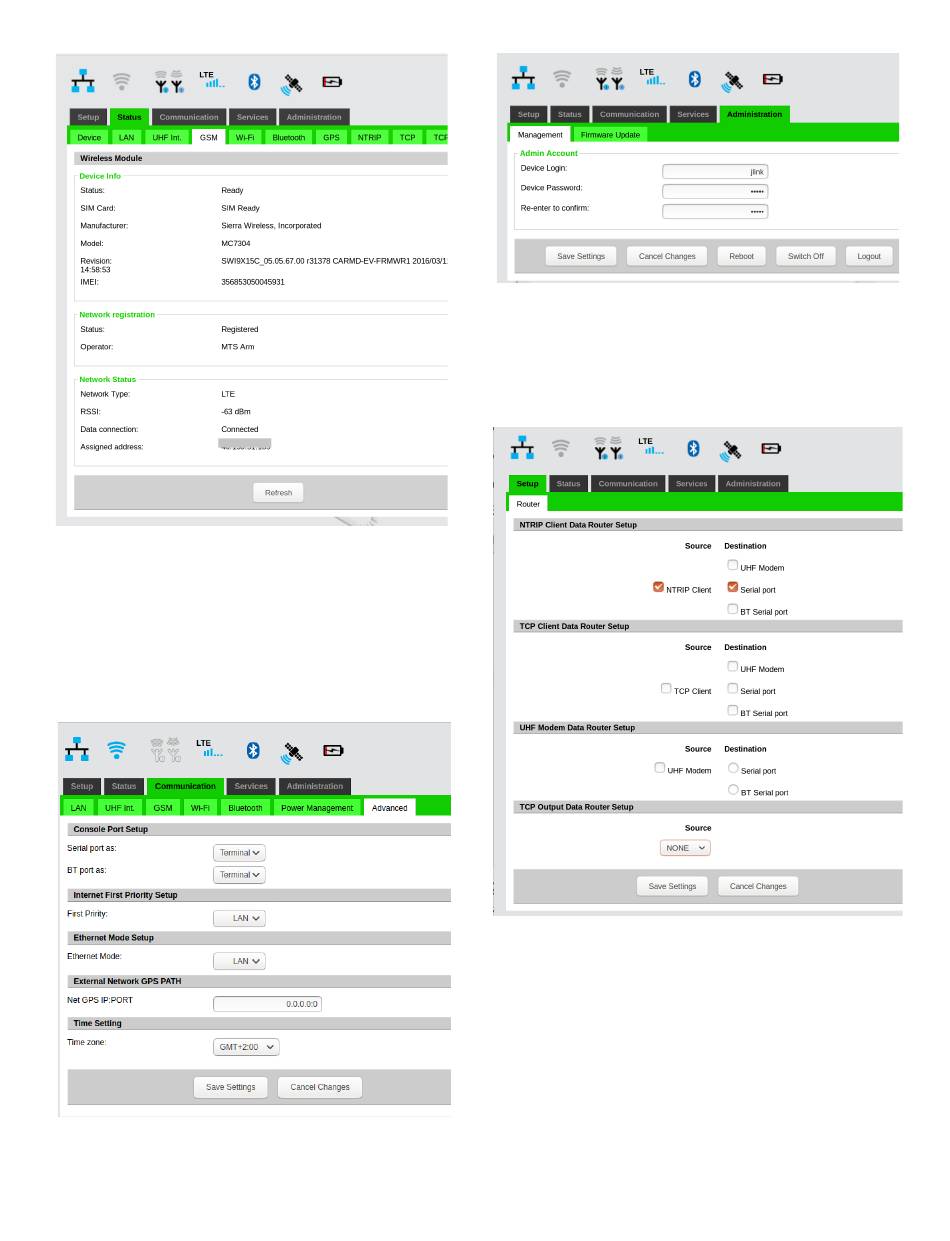

Figure 11.
It is possible also to connect JLink LTE to Internet
via LAN or WiFi using any WiFi router, MiFi device or
even smartphone configured in hot spot mode.
3. Set up the Serial Port. In the Communication/
Advanced tab select "Serial port as" parameter as
Terminal. Click Save Settings and wait until finish.
Figure 12. Advanced tab
4. Reboot the device by clicking Reboot in the
Administration/Management tab.
12
GSM Status tab
Figure 13. Administration Management tab
5. Set up the Router. In the Setup/Router tab select
following parameters "NTRIP Client" as Source and
"Serial port" as Destination. Click "Save Setting" but-
ton and wait until finish.
Figure 14. NTRIP Data Router tab
6. Setup NTRIP Client. In the Services/NTRIP tab set
following parameters: "Server name/address", "Port",
"User" , "Password" .
