Installation Instructions
Original Instructions

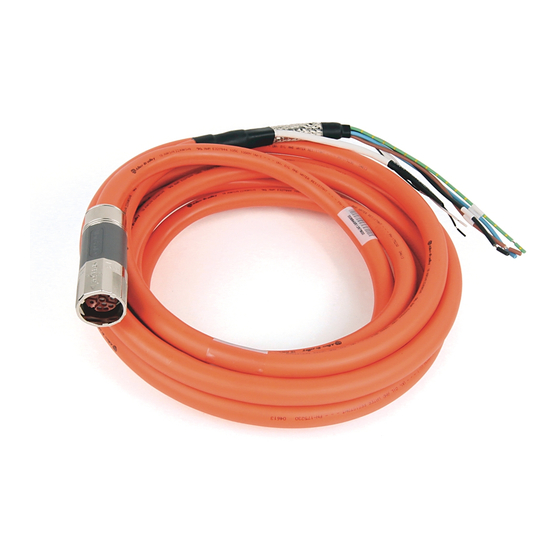

2090-Series Single Motor Cables
Catalog Numbers 2090-CSBM1DF, 2090-CSWM1DF, 2090-CSBM1DE, 2090-CSWM1DE, 2090-CSBM1DG, 2090-CSWM1DG,
2090-CSBM1E1
Topic
Summary of Changes
This publication contains new and updated information as indicated in the following table.
Topic
Added 2090-CSBM1DE (18 and 14 AWG) with-brake pinout illustration and series-B cable specifications.
Page
1
2
4
4
5
5
9
11
Page
2
7
8
9
10
11
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley 2090 Series
Summary of Contents for Rockwell Automation Allen-Bradley 2090 Series
-
Page 1: Table Of Contents
Installation Instructions Original Instructions 2090-Series Single Motor Cables Catalog Numbers 2090-CSBM1DF, 2090-CSWM1DF, 2090-CSBM1DE, 2090-CSWM1DE, 2090-CSBM1DG, 2090-CSWM1DG, 2090-CSBM1E1 Topic Page Summary of Changes 2090-Series Cables - Series Change Before You Begin Single Motor Cable Applications Single Motor Cable Bend Radius Specifications Install Single Motor Cables Install Continuous-flex Extension Cables Additional Resources... -
Page 2: 2090-Series Cables - Series Change
Available Cable Length, max Cable Cat. No. Drive Compatibility m (ft) 2090-CSBM1E1-18 Kinetix 5500 2090-CSBM1E1-14 30 (98.4) Kinetix 5700 2090-CSBM1E1-10 (1) Series B cables replace series A cables. These series A cables are no longer offered. Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 3: Before You Begin
Standard (non-flex) cables can be bent or reformed during installation and maintenance. Continuous-flex cables can be flexed repeatedly within a specified bend radius when properly installed. Do not use standard cables in a continuous-flex operation. Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 4: Single Motor Cable Applications
• Use 2090-CSxM1DE cables with Kinetix 5700 servo drives (2198-KITCON-DSL connector kit is pre-wired to the feedback conductors) • Use 2090-CSxM1DG cables with Kinetix 5500 or Kinetix 5700 servo drives (when used with Kinetix 5700 drives, the 2198-KITCON-DSL connector kit is ordered separately) Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 5: Single Motor Cable Bend Radius Specifications
Cable Shield (for DSL connector kit) Bend Radius Bend Radius Typical End View Dimensions are in mm (in.) 2090-CSWM1DF-xxAAxx (reference only) 2090-CSWM1DG-xxAAxx Cable Shield (overall) Cable Cable Shield (for DSL connector kit) Diameter Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... - Page 6 • Use 2090-CSxM1DE cables with Kinetix 5700 servo drives (2198-KITCON-DSL connector kit is pre-wired to the feedback conductors) • Use 2090-CSxM1DG cables with Kinetix 5500 or Kinetix 5700 servo drives (when used with Kinetix 5700 drives, the 2198-KITCON-DSL connector kit is ordered separately) Rockwell Automation Publication 2090-IN051D-EN-P - February 2017...
-
Page 7: Added 2090-Csbm1De (18 And 14 Awg) With-Brake Pinout Illustration And Series-B Cable Specifications
2090-CSBM1DE-14AFxx (series A and B) 17.0 (0.67) 119 (4.7) 170 (6.7) (1) Dimension B and continuous bend radius are based on the cable diameter. See Bend Radius Definitions on page 5 for more information. Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 8: Added 2090-Csbm1De (18 And 14 Awg) Without Brake Pinout Illustration
22 AWG White MBRK– 2090-CSBM1DF-10AFxx Continuous-flex 2090-CSBM1DG-10AFxx 22 AWG Blue 22 AWG White/Blue D– Wire Connection Electrical Screens (braided copper) Shield SHIELD Twisted Wire Pair 360° shield-to-ground Conductive connections are required. Connector Housing Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 9: Install Continuous-Flex Extension Cables
This figure illustrates how to measure the bend radius and where cable bends can be made on continuous-flex extension cables. Continuous-flex Extension Cable Bend-radius Example Bend Area or Continuous 2090-CSBM1E1-xxAFxx cable is shown. Continuous Flexing Area Cable Bend Radius Diameter Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 10: Added 2090-Csbm1E1-06Afxx And 2090-Csbm1E1-08Afxx Extension Cable Pinout Illustration
(1) On 18 AWG and 14 AWG cables, the electrical screen of the blue and white/blue pair is grounded to the connector chassis. (2) On 10, 8, and 6 AWG cables, the electrical screen of the blue and white/blue pair is grounded to the internal metal EMC/EMI tube. Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... -
Page 11: Additional Resources
Provides declarations of conformity, certificates, and other certification details. www.rockwellautomation.com/global/certification/overview.page You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. Rockwell Automation Publication 2090-IN051D-EN-P - February 2017... - Page 12 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, HPK-Series, Kinetix, LDC-Series, LDL-Series, MP-Series, RDD-Series, Rockwell Automation, Rockwell Software, and TL-Series are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
