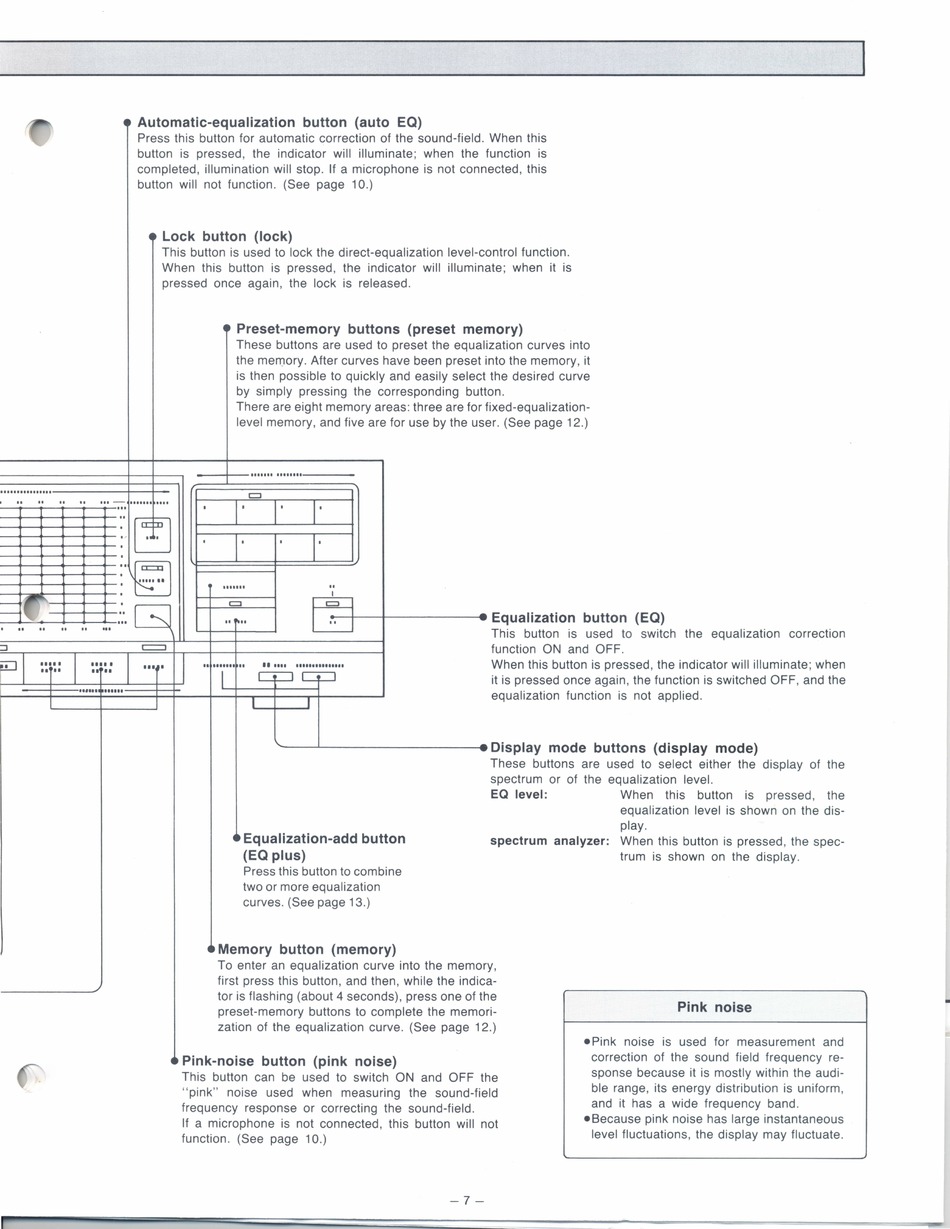

Automatic-equalization button (auto EQ)
Press this button for automatic correction of the sound-field . When this
button is pressed , the indicator will illuminate ; when the function is
completed , illumination will stop . If a microphone is not connected , this
button will not function . (See page 1 0.)
t
Lock button (lock)
This button is used to lock the direct-equalization level-control function .
When this button is pressed , the indicator will illuminate ; when it is
pressed once again , the lock is released .
Preset-memory buttons (preset memory)
These buttons are used to preset the equalization curves into
the memory . After curves have been preset into the memory, it
is then possible to quickly and easily select the desired curve
by simply pressing the corresponding button.
There are eight memory areas: three are for fixed-equalization-
level memory, and five are for use by the user. (See page 12.)
- - + - " " " ' " " " " - - -
=
I I I I I I I I 1 1 1 - I I I U I I I U I
I·
--+--+--+-+-+-
~· [!]
-+--+~t-+--+-..
=
=:("
1:-1
_ ...... --=-..... - . . . . . . --' ..
- - 4 - ... - ...
~
=
. I
I .....
I I I I
"'f'
I I
I'
=
I
=
<c.,-t--+-------e Equalization button (EQ)
II lllilll II
............. . ........
cu~p
This button is used to switch the equalization correction
function ON and OFF.
When this button is pressed , the indicator will illuminate ; when
it is pressed once again, the function is switched OFF, and the
equalization function is not applied .
'---_~_
__________ Display mode buttons (display mode)
These buttons are used to select either the display of the
spectrum or of the equalization level.
EQ level :
When this button is pressed , the
equalization level is shown on the dis-
play.
Equalization-add button
(EQ plus)
spectrum analyzer: When this button is pressed , the spec-
trum is shown on the display.
Press this button to combine
two or more equalization
curves . (See page 13.)
Memory button (memory)
To enter an equalization curve into the memory,
first press this button, and then, while the indica-
tor is flashing (about 4 seconds), press one of the
preset-memory buttons to complete the memori-
zation of the equalization curve. (See page 12.)
Pink-noise button (pink noise
This button can be used to switch ON and OFF the
" pink" noise used when measuring the sound-field
frequency response or correcting the sound-field.
If a microphone is not connected, this button will not
function . (See page 1 0.)
-7-
Pink noise
•Pink noise is used for measurement and
correction of the sound field frequency re-
sponse because it is mostly within the audi-
ble range, its energy distribution is uniform ,
and it has a wide frequency band .
•Because pink noise has large instantaneous
level fluctuations , the display may fluctuate .
