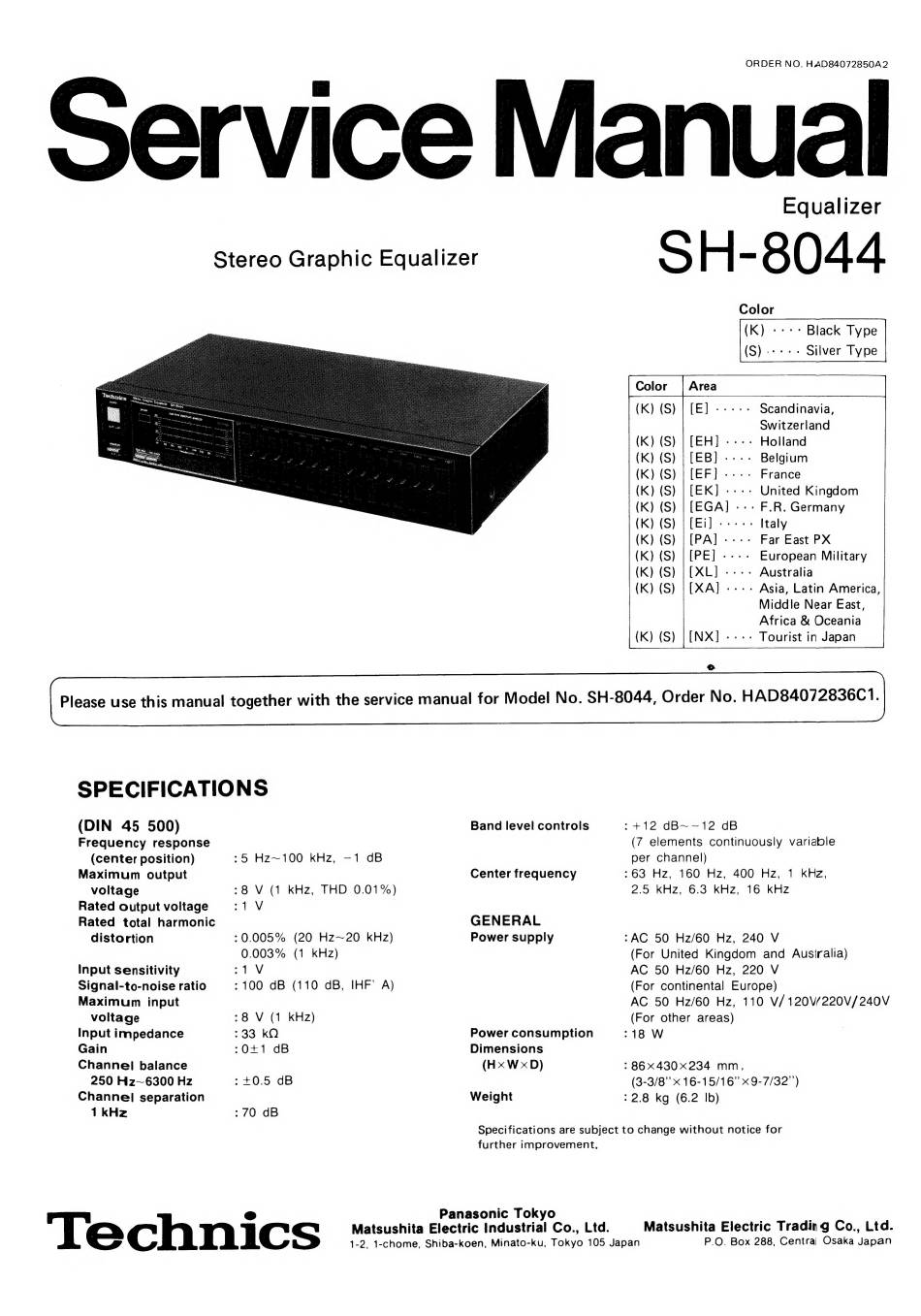

Technics SH-8044 Service Manual

ORDER NO. HAD84072850A2
Equalizer
Color
(K) «+++ Black Type
(S).-- ++ Silver Type
(K) (S) | [E] ----- Scandinavia,
Switzerland
(K) (S) | [EH] ---- Holland
(K) (S) | [EB] ---- Belgium
(K) (S) | [EF] ---- France
(K) (S) | [EK] «+--+ United Kingdom
(K) (S) | [EGA] --- F.R. Germany
(K) (S) | [Ei] ----- Italy
(K) (S) | [PA] ---+- Far East PX
(K) (S) | [PE] ---- European Military
(K) (S) | [XL] ----+ Australia
(K) (S) | [XA] --++ Asia, Latin America,
Middle Near East,
Africa & Oceania
- Tourist in Japan (K) (S)
SPECIFICATIONS
(DIN 45 500) Band level controls :+12 dB~—12 dB
Frequency response (7 elements continuously variable
(center position) >5 Hz~100 kHz, —1 dB per channel)
Maximum output Center frequency :63 Hz, 160 Hz, 400 Hz, 1 kkz,
voltage >8 V (1 kHz, THD 0.01%) 2.5 kHz, 6.3 kHz, 16 kHz
Rated output voltage 1V
Rated total harmonic GENERAL
distortion >0.005% (20 Hz~20 kHz) Power supply >AC 50 Hz/60 Hz, 240 V
0.003% (1 KHz) (For United Kingdom and Ausiralia)
input sensitivity :1V AC 50 Hz/60 Hz, 220 V
Signal-to-noise ratio : 100 dB (110 dB, IHF' A) (For continental Europe)
Maximum input AC 50 Hz/60 Hz, 110 V/120W220V/240V
voltage >8 V (1 kHz) (For other areas)
Input impedance 733 kQ Power consumption 18 W
Gain >O+1 dB Dimensions
Channel balance (HxWxD) > 86X 430x234 mm,
250 Hz~6300 Hz -+0.5 dB (3-3/8" x 16-15/16" x 9-7/32"')
Channel separation Weight : 2.8 kg (6.2 Ib)
1kH2 :70 dB
Specifications are subject to change without notice for
further improvement.
Panasonic Tokyo
@
j
]
Matsushita Electric Industrial Co., Ltd.
Matsushita Electric Trading Co., Ltd.
1-2, 1-chome, Shiba-koen, Minato-ku, Tokyo 105 Japan
P.O. Box 288, Central Osaka Japan
