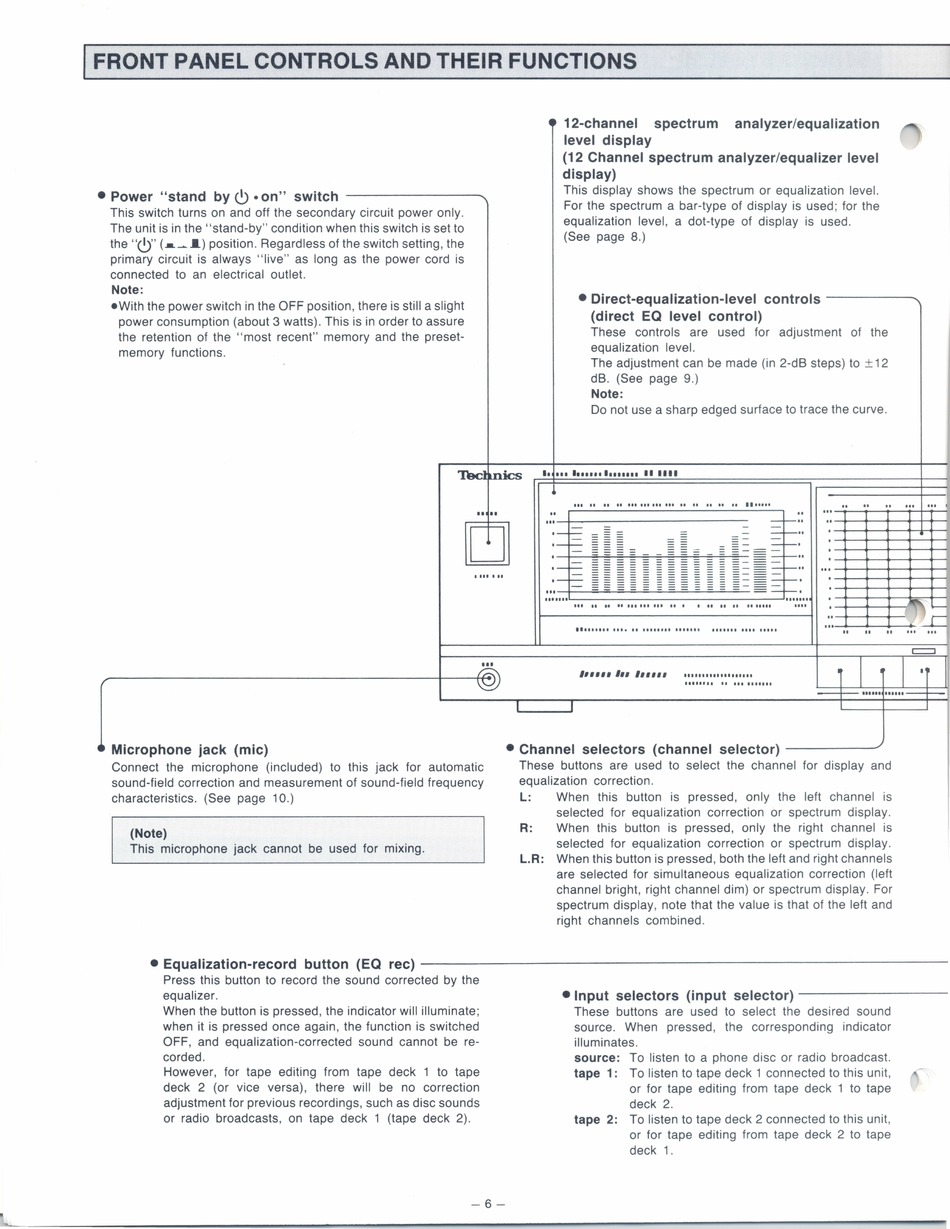

FRONT PANEL CONTROLS AND THEIR FUNCTIONS
• Power
"stand by
C) •
on" switch - - - - - - - - - . . . .
This switch turns on and off the secondary circuit power only.
The unit is in the
"stand-by"
condition when this switch is
set
to
the
"C)"
(•~
I)
position. Regardless of the switch setting, the
primary circuit is always
"live"
as long as the power cord is
connected to an electrical
outlet.
Note:
•With the power switch
in
the OFF position, there is still a slight
power consumption (about 3 watts). This is in order to assure
the retention of the
"most
recent" memory and the preset-
memory functions
.
12-channel
spectrum
analyzer/equalization
level display
(12 Channel spectrum analyzer/equalizer level
display)
This display shows
the
spectrum or equalization level.
For the spectrum a bar-type of display is used;
for
the
equalization level, a dot-type of display
is
used.
(See
page 8.)
• Direct-equalization-level controls -
-- -
--...
(direct EQ level control)
These controls are used
for
adjustment
of
the
equalization
level.
The adjustment
can
be made
(in 2-dB steps)
to
±
12
dB. (See page
9.)
Note:
Do not use
a sharp
edged
surface
to
trace
the
curve.
~mics
•·
..................
••••••
Microphone
jack (mic)
Connect the microphone (included) to this jack for
automatic
sound-field correction and measurement of
sound-field
frequency
characteristics.
(See page 1 0.)
(Note)
This
microphone jack cannot be used for mixing.
I l l
U
U
I I
l t i i i i i i i i U
I f
I I
I I
U
I I
lltUit
"
"
"
... ...
.
...
"
...
j~
"
:!
~
...
"
"
"
. . . 1
=
--~: :
.~
~~=
=~=
=
=
.
: -
= :::
=
:
=
~ ~ ~ ~ ~ ~ ~
=
=
: :
.. :--=-
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~= ~-
:
.......
Ul
I I
I I
l l l l l t i i U I
I I
I
I I
U
II
1111111
IIU
l l t U I I
II l l l o
II
t t t n t t l
111111
1
11111111111
IIIII
=
,,,,,,
,,, ,,,,,,
.................. .
i I
I
·r
---+-
······
······--+--
I
•
Channel
selectors
(channel selector)
-
- - - - " '
These buttons are used
to select
the channel
for
display
and
equalization
correction.
L:
When this button
is
pressed, only
the
left channel is
selected
for
equalization correction or spectrum
display.
R.
When th1s button 1s
pressed,
only the
right channel is
selected for equalization
correction
or
spectrum
display.
L.R:
When this button is pressed, both the left
and right channels
are selected for
simultaneous
equalization
correction (left
channel
bright,
right channel dim) or
spectrum display. For
spectrum
display,
note that the value
is that of the left
and
right
channels combined.
•
Equalization-record
button
(EQ
rec)
- - - - - - - - - - - - -
--
-- - - -
-- - - -
-- - -
--
Press this button to record the sound corrected by the
equalizer.
When
the button is
pressed,
the indicator will illuminate;
when it is pressed once again, the function is
switched
OFF,
and equalization-corrected
sound cannot
be
re-
corded.
However,
for
tape
editing from
tape
deck
1
to
tape
deck 2
(or
vice versa), there will be no correction
adjustment for previous recordings
,
such as disc sounds
or radio
broadcasts,
on
tape
deck 1 (tape deck
2).
- 6 -
•
Input selectors (input selector)
- - - - -
--
--
These buttons
are
used to
select the
desired sound
source.
When
pressed,
the
corresponding
indicator
illuminates.
source:
To
listen
to
a
phone
disc or radio
broadcast.
tape 1:
To listen
to
tape deck
1 connected
to this
unit,
or
for
tape editing
from tape deck 1 to
tape
deck 2.
tape 2: To listen
to
tape deck
2 connected to this unit,
or for
tape
editing
from tape
deck 2
to tape
deck 1.
