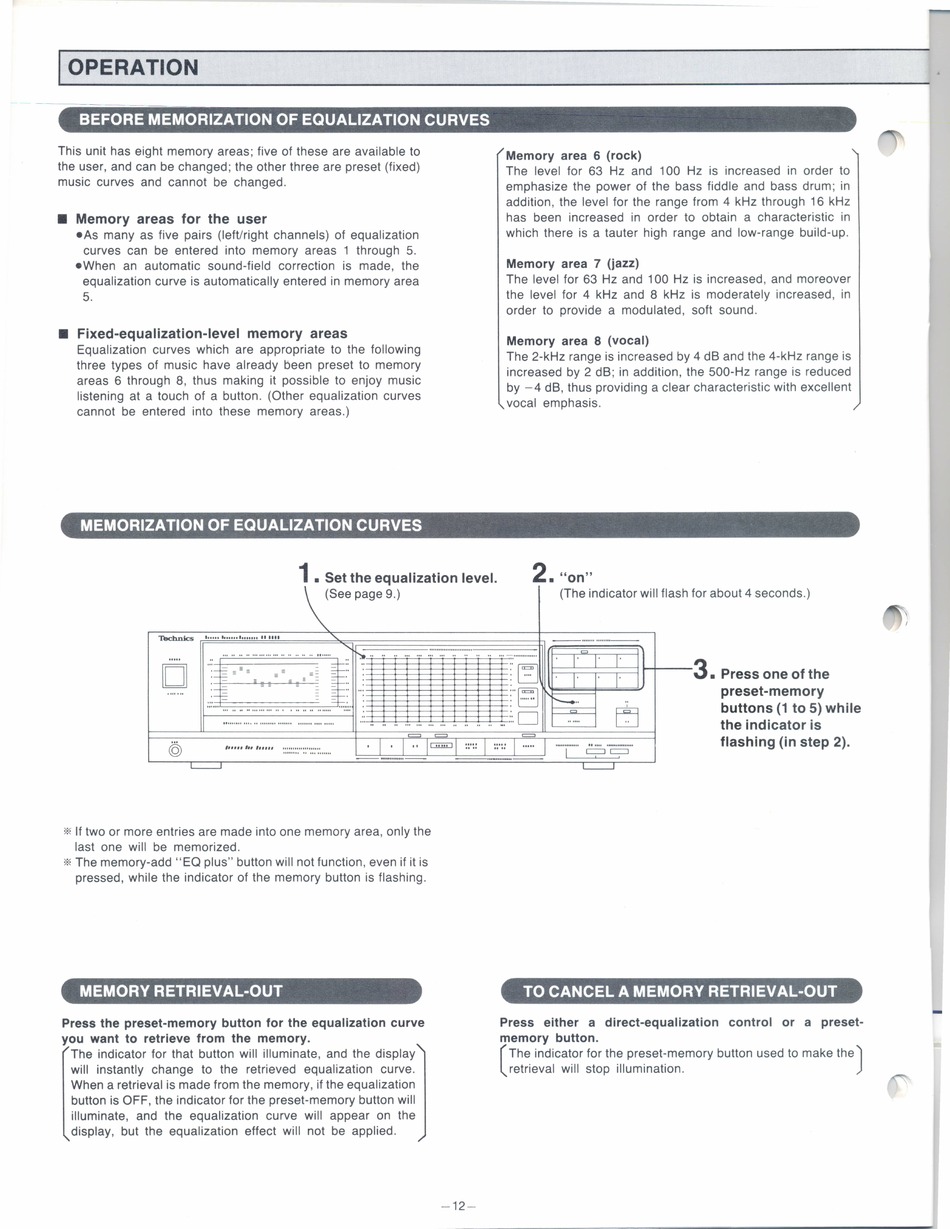

I
OPERATION
BEFORE MEMORIZATION OF EQUALIZATION CURVES
This unit has eight memory areas ; five of these are available to
the user, and can be changed ; the other three are preset (fixed)
music curves and cannot be changed.
• Memory areas for the user
•As many as five pairs (left/right channels) of equalization
curves can be entered into memory areas 1 through 5.
•When an automatic sound-field correction is made, the
equalization curve is automatically entered in memory area
5.
• Fixed-equalization-level memory areas
Equalization curves which are appropriate to the following
three types of music have already oeen preset to memory
areas 6 through 8, thus making it possible to enjoy music
listening at a touch of a button . (Other equalization curves
cannot be entered into these memory areas .)
MEMORIZATION OF EQUALIZATION CURVES
1 .
Set the equalization level.
Memory area 6 (rock)
The level for 63 Hz and 100 Hz is increased in order to
emphasize the power of the bass fiddle and bass drum ; in
addition , the level for the range from 4 kHz through 16 kHz
has been increased in order to obtain a characteristic in
which there is a tauter high range and low-range build-up.
Memory area 7 (jazz)
The level for 63 Hz and 100 Hz is increased, and moreover
the level for 4 kHz and 8 kHz is moderately increased , in
order to provide a modulated, soft sound.
Memory area 8 (vocal)
The 2-kHz range is increased by 4 dB and the 4-kHz range is
increased by 2 dB ; in addition, the 500-Hz range is reduced
by - 4 dB, thus providing a clear characteristic with excellent
vocal emphasis.
2.
"on"
(The indicator will flash for about 4 seconds.)
\See page
9.)
~ ~~ - ;:~~:-_ ~~ - - ~ · ~ · ~ · · ~ ·
f
I
11
· ~ ·
. • .
· ~ · ~· · · ~ :~~ + ~ + 1 ]~3.Pressone~llie
, _ _ _ . . _ . _ _ . _ _ _ _ . ; . - . • • i
I • •
i • • •
r
LJ ,__
~ ~~~:~~~~~:~r
whll•
............... ........ ....... ....... ...... . . . . . ............. . . ..... .... -· D
~
L::.J
the indicator is
flashing (in step 2) .
· 1 · 1 ~ 1~1 ::·:: 1::·::1~1
.............
.. . . . .
............. ..
I~=
,
..
,.,,,.,,
* If two or more entries are made into one memory area, only the
last one will be memorized .
* The memory-add "EQ plus" button will not function, even if it is
pressed, while the indicator of the memory button is flashing.
MEMORY RETRIEVAL-OUT
Press the preset-memory button for the equalization curve
you want to retrieve from the memory.
[
The indicator for that button will illuminate, and the display
will instantly change to the retrieved equalization curve .
When a retrieval is made from the memory, if the equalization
button is OFF, the indicator for the preset-memory button will
illuminate, and the equalization curve will appear on the
display, but the equalization effect will not be applied .
- 12 -
TO CANCEL A MEMORY RETRIEVAL-OUT
Press either a direct-equalization control or a preset-
memory button.
(
The indicator for the preset-memory button used to make the)
retrieval will stop illumination.
