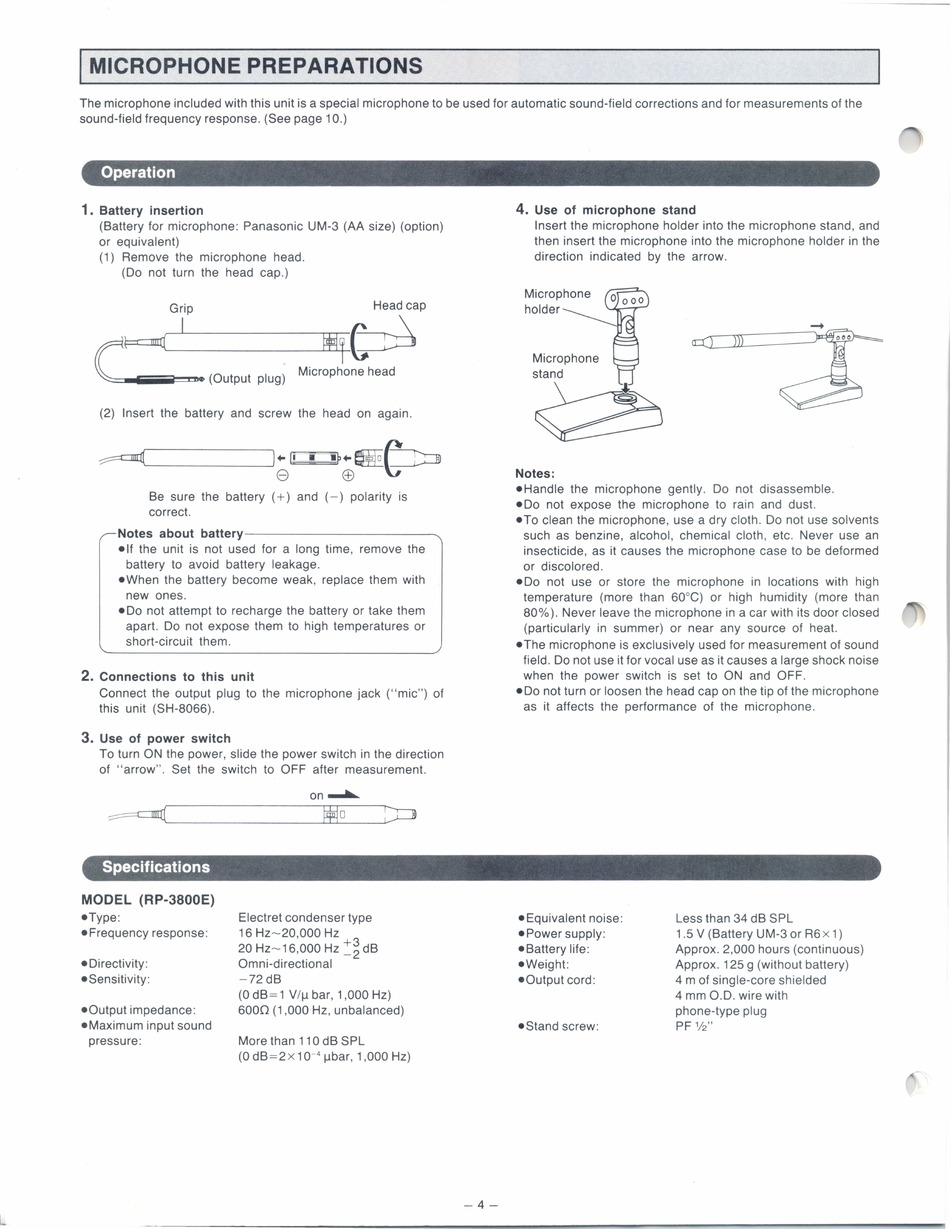

MICROPHONE PREPARATIONS
The microphone included with this unit is a special microphone to be used for automatic sound-field corrections and for measurements of the
sound-field frequency response. (See page 1 0.)
Operation
1.
Battery insertion
(Battery for microphone : Panasonic UM-3 (AA size) (option)
or equivalent)
(1) Remove the microphone head.
(Do not turn the head cap .)
Grip Headcap
~~'---' -----'t*l...L..Lf-~
!·
~
~
.. (Output plug) Microphone head
(2) Insert the battery and screw the head on again .
~
.. ro:::JP ..
~~
8 EB
b
Be sure the battery (
+
) and (- ) polarity is
correct.
Notes about battery- - -- -- - - - -- -,
•If the unit is not used for a long time , remove the
battery to avoid battery leakage .
•When the battery become weak , replace them with
new ones.
•Do not attempt to recharge the battery or take them
apart. Do not expose them to high temperatures or
short-circuit them .
2.
Connections to this unit
Connect the output plug to the microphone jack (" mic" ) of
this unit (SH -8066) .
3.
Use of power switch
To turn ON the power, slide the power switch in the direction
of " arrow". Set the switch to OFF after measurement.
Specifications
MODEL (RP-3800E)
•Type :
•Frequency response:
• Directivity:
•Sensitivity :
•Output impedance:
•Maximum input sound
pressure :
on
...a...
Electret condenser type
16 Hz - 20,000 Hz
20 Hz - 16,000
Hz ~ ~
dB
Omni-directional
- 72dB
(0 dB = 1 V/11 bar, 1,000 Hz)
6000 (1 ,000 Hz , unbalanced)
More than 11 0 dB SPL
(0 dB = 2 x 10-
4
1J.bar, 1,000 Hz)
- 4-
4.
Use of microphone stand
Insert the microphone holder into the microphone stand , and
then insert the microphone into the microphone holder in the
direction indicated by the arrow .
Microphone
stand
0
Notes:
• Handle the microphone gently. Do not disassemble.
• Do not expose the microphone to rain and dust.
• To clean the microphone , use a dry cloth. Do not use solvents
such as benzine, alcohol , chemical cloth , etc . Never use an
insecticide , as it causes the microphone case to be deformed
or discolored .
•Do not use or store the microphone in locations with high
temperature (more than 60°C) or high humidity (more than
80%). Never leave the microphone in a car with its door closed
(particularly in summer) or near any source of heat.
• The microphone is exclusively used for measurement of sound
field. Do not use it for vocal use as it causes a large shock noise
when the power switch is set to ON and OFF.
• Do not turn or loosen the head cap on the tip of the microphone
as it affects the performance of the microphone .
• Equivalent noise :
• Power supply :
• Battery life:
• Weight:
•Output cord :
• Stand screw :
Less than 34 dB SPL
1.5 V (Battery UM-3 or R6 x 1)
Approx . 2,000 hours (continuous )
Approx . 125 g (without battery)
4 m of single-core shi elded
4 mm O.D. wire with
phone-type plug
PF
'12"
